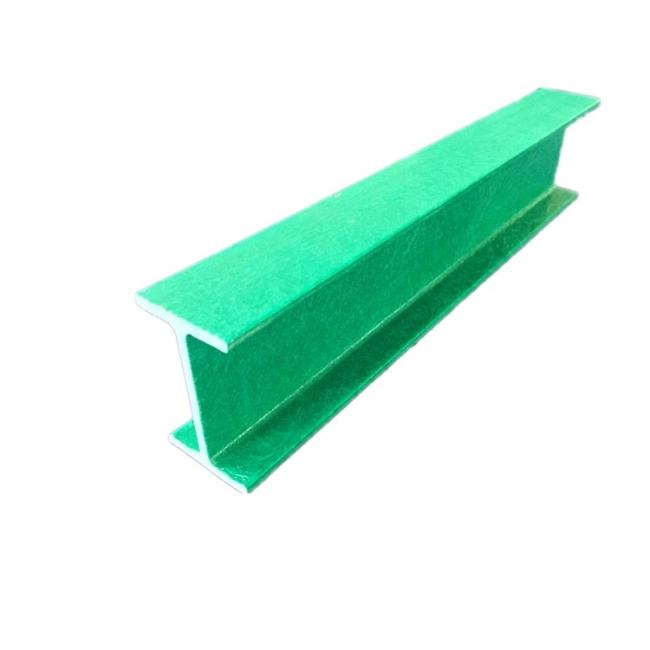

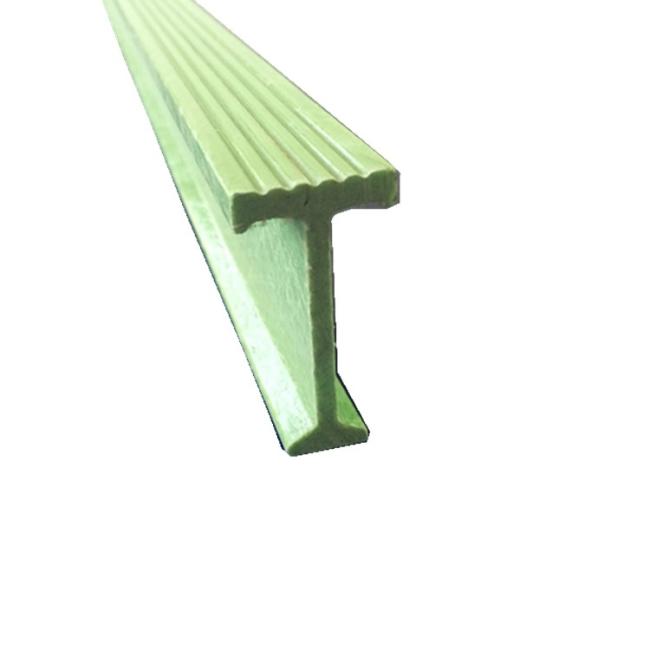

Glass Fiber Structural U-Shaped FRP Channel Pultruded H Shaped
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
glass fiber Structural C/T/U Channel FRP pultruded profiles
glass fiber Structural C/T/U Channel profiles are made of reinforced fiberglass and resin materials. They are widely used in various industries such as construction, transportation, chemicals, electronics and more. The following are the key features of fiberglass I/T/U profile.
| 1.High Strength: Fiberglass U profiles have high strength-to-weight ratio, which is higher than traditional materials such as steel or aluminum. They can withstand high loads and impact without deformation. |  |
| 2.Corrosion Resistance: Fiberglass I beam are highly resistant to corrosion, chemicals, UV rays, and other harsh environmental factors. They are ideal for use in marine and harsh chemical environments. |  |
| 3.Lightweight: Fiberglass t shape are much lighter in weight than traditional materials, making them easy to handle, transport, and install. |  |
| 4.Dimensional Stability: Fiberglass H profiles have excellent dimensional stability, meaning they will not warp, buckle, twist or otherwise deform under load. |  |

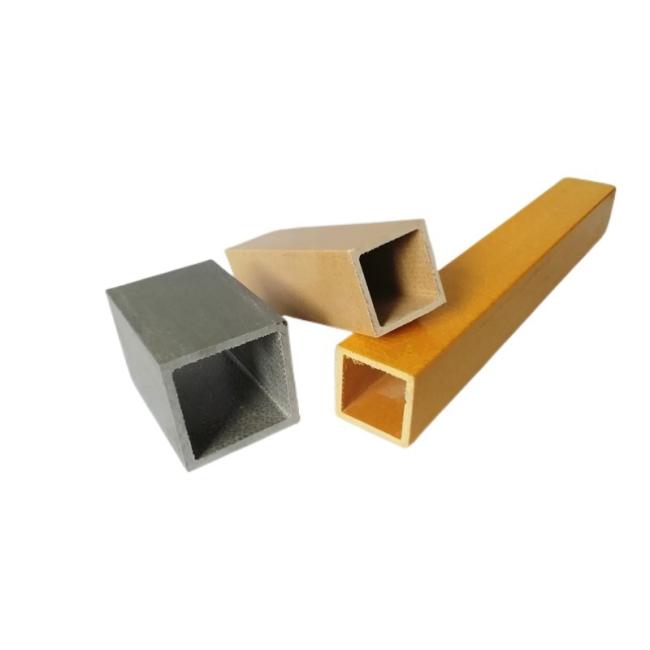

| 5.Electrical Insulation: Fiberglass square tubes have excellent electrical insulation properties, making them ideal for use in electrically sensitive applications. |  |
Avaliable size
| I/H beam | |
| Width/Height/Thickness mm | Weight g/m |
| 6×6 | 61 |
| 8.5×Φ13 | 175 |
| 11×Φ15 | 243 |
| 12×15 | 220 |
| 12×19 | 270 |
| 15×25.4 | 400 |
| 15×38 | 626 |
| 25×50.8 | 655 |
| 30*50 | 620 |
| 150×150×10 | 8800 |
| 150×150×12 | 11200 |
| 200×200×15 | 18500 |
| T beam | |
| Spec mm | Weight g/m |
| 16×25 | 395 |
| 16×30 | 415 |
| 66×34×5 | 844 |
Package & Delivery
Packing Shipping
1.Carton + pallet 1.Waterway transportation
2.Export wooden box 2.air transport
Manufacturing Technique
| Glass Fiber + Resin System | |||||
| Part No | Resin Base | Application | Temperature resistance | Corrossion resistance | Flame resistance |
| VE | Vinyl Ester | Superior Corrosion Resistance and fire retardant | Very Good | Excellent | Very Good |
| ISO | Isophthalic Polyester | Industrial grade corrosion resistance and fire retardant | Good | Good | Good |
| ORTHO | Orthophthalic resin | Moderate corrosion resistance and fire retardant | Common | Common | Common |
| EPOXY | EPOXY Resin | ||||
Applaction
glass fiber Structural C/T/U Channel FRP pultruded profiles have a wide range of applications in various industries. FRP profiles are known for their durability, lightweight, and resistance to corrosion, which makes them an ideal choice for many applications. Some of the common uses of FRP I/T/U profiles include:
1. Construction industry: FRP profiles are widely used in the construction industry for the production of structural shapes, grating, and handrail systems. They offer high strength, are lightweight, and require minimal maintenance, making them a cost-effective option for builders and contractors.
2. Electrical industry: FRP profiles are used extensively in the electrical industry for the production of high-temperature insulators, conductor support systems, and cable trays. FRP profiles are also non-conductive and offer a high resistance to heat and chemicals, making them an ideal choice for electrical applications.
3. Marine industry: FRP profiles are commonly used in the marine industry for the production of hulls, decks, and other structural components. This is because they are resistant to corrosion, lightweight, and offer high strength-to-weight ratios.
4. Transportation industry: FRP profiles are used in the transportation industry for the production of trailer floors, truck bodies, and other structural components. They are known for their ease of maintenance and repair and ability to withstand extreme temperatures.
Main Processing Technic Products Advantage
1.Protruded Profile / Continuous Formation 1.High Voltage Protruded profile and Hand Layup Shell
2.SMC / BMC Molding Products 2.Professional engineer with Design support with 24 years experienc
3.Hand layup Products (Option: With Pattern Print) 3.Customize Large size Products.
4.RTM / Infusion With air bag 4.One-stop service (Purchase/ Order / Tranportation )
FAQ
Q:Are you trading company or manufacturer ?
A:We are factory and trade company
Q:How long is your delivery time?
A:Generally it is 5-10 days if the goods are in stock.Or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:Do you provide samples ?Is it free or extra ?
A:Yes, we could offer Certain sample for free charge but do not pay the cost of freight.
Please contact me to confirm.
Q:What is your terms of payment ?
A:Payment<=3000USD, 100% in advance.Payment>3000USD, 30% T/T in advance ,balance before shippment.
