Bending Strength Test Epoxy Resin Reinforced Fiber Glass Flat Bar for Construction Material
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Product Description
Feature ![Bending Strength Test Epoxy Resin Reinforced Fiber Glass Flat Bar for Construction Material]()
![Bending Strength Test Epoxy Resin Reinforced Fiber Glass Flat Bar for Construction Material]()
ΔVarious forms ΔHigh mechanical strength
ΔStrong adhesion ΔExcellent electrical insulation
ΔEasy curing ΔStrong chemical stabilit
ΔLow shrinkage ΔGood dimensional stability
Raw Material
![Bending Strength Test Epoxy Resin Reinforced Fiber Glass Flat Bar for Construction Material]()
![Bending Strength Test Epoxy Resin Reinforced Fiber Glass Flat Bar for Construction Material]()
![Bending Strength Test Epoxy Resin Reinforced Fiber Glass Flat Bar for Construction Material]()

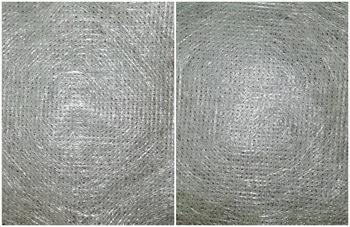

FRP stitched glass fiber mat FRP multiaxial fiber(E-Glass) FRP surfacing glass fiber mat
Technical Date
Packing & Delivery
![Bending Strength Test Epoxy Resin Reinforced Fiber Glass Flat Bar for Construction Material]()
![Bending Strength Test Epoxy Resin Reinforced Fiber Glass Flat Bar for Construction Material]()
Packing Shipping
1.Carton + pallet 1.Waterway transportation
2.Export wooden box 2.air transport
Main product
![Bending Strength Test Epoxy Resin Reinforced Fiber Glass Flat Bar for Construction Material]()
Our Company
Shengze is a leading and profession manufacturer of fiberglass products for over 20 years. The main products are various kinds of frp pultrusion profiles, SMC products , FRP hand lay out product and vacuum infusion products. The annual production capacity is about 8,000 tons.
![Bending Strength Test Epoxy Resin Reinforced Fiber Glass Flat Bar for Construction Material]()
Our Services & Strength
Main Processing Technic Products Advantage
1. Protruded Profile 1.High Voltage Protruded profile and Hand Layup Shell
2. SMC Moulding Products 2. Customize SMC Moulding Products and Design Support
3. Hand layup Products 3. Customize Large size Hand layup Products
FAQ
Q: Are you trading company or manufacturer ?A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days,
if the goods are in stock. or it is 15-20 days.
if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer Certain sample for free charge but do not pay the cost of freight.
Please contact me to confirm.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
![Bending Strength Test Epoxy Resin Reinforced Fiber Glass Flat Bar for Construction Material]()
| General specifications | |
| Width mm | Thickness mm |
| 44 | 6.8 |
| 44 | 5 |
| 42 | 1.3 |
| 40 | 4 |
| 31 | 6.8 |
| 31 | 6.5 |
| 31 | 5.5 |
| 30 | 2.5 |
| 18 | 9 |
| 16 | 11 |
| Hot-selling specifications | |
| 31 | 6 |
| 31 | 5 |
| 31 | 3.5 |
| 22 | 3.6 |
| 32 | 4 |
Feature
ΔVarious forms ΔHigh mechanical strength
ΔStrong adhesion ΔExcellent electrical insulation
ΔEasy curing ΔStrong chemical stabilit
ΔLow shrinkage ΔGood dimensional stability
Raw Material
| Glass Fiber + Resin System | Part No | Resin Base | Application | Temperature resistance | Corrossion resistance |
| Flame resistance | VE | Vinyl Ester | Superior Corrosion Resistance and fire retardant | Very Good | Excellent |
| Very Good | ISO | Isophthalic Polyester | Industrial grade corrosion resistance and fire retardant | Good | Good |
| Good | ORTHO | Orthophthalic resin | Moderate corrosion resistance and fire retardant | Common | Common |
| Common | EPOXY | EPOXY Resin | |||
FRP stitched glass fiber mat FRP multiaxial fiber(E-Glass) FRP surfacing glass fiber mat
Technical Date
| Item | Normal type | Ordinary high temperature resistant type |
density (g/cm3) | >2.0 | >2.0 |
Water absorption (%) | <0.05 | <0.05 |
Tensile Strength (MPa) | >=1200 | >1200 |
Penetration test (min) | >20 | >20 |
Water diffusion test (mA) | <0.2 | <0.2 |
Stress corrosion (h) | / | / |
V sdc(kv) | >50 | >50 |
Hot bending failure load (MPa) | / | >=230 |
| Item | Acid proof type | Acid and high temperature resistant type |
| density (g/cm3) | >2.0 | >2.0 |
| Water absorption (%) | <0.05 | <0.05 |
| Tensile Strength (MPa) | >=1300 | >1300 |
| Penetration test (min) | >20 | >20 |
| Water diffusion test (mA) | <0.2 | <0.2 |
| Stress corrosion (h) | >96 | >96 |
| V sdc(kv) | >50 | >50 |
| Hot bending failure load (MPa) | / | >=230 |
Packing & Delivery
Packing Shipping
1.Carton + pallet 1.Waterway transportation
2.Export wooden box 2.air transport
Main product
Our Company
Shengze is a leading and profession manufacturer of fiberglass products for over 20 years. The main products are various kinds of frp pultrusion profiles, SMC products , FRP hand lay out product and vacuum infusion products. The annual production capacity is about 8,000 tons.
Our Services & Strength
Main Processing Technic Products Advantage
1. Protruded Profile 1.High Voltage Protruded profile and Hand Layup Shell
2. SMC Moulding Products 2. Customize SMC Moulding Products and Design Support
3. Hand layup Products 3. Customize Large size Hand layup Products
FAQ
Q: Are you trading company or manufacturer ?A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days,
if the goods are in stock. or it is 15-20 days.
if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer Certain sample for free charge but do not pay the cost of freight.
Please contact me to confirm.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
