6mm 8mm 10mm Thickness Round Flexible Pultruded Fiberglass FRP Insulation Flag Pole Rod Profiles
We a professional manufacturing plant with big volume,complete series and specification for FRP profiles.
A big range of FRP pultruded profile are available in standard configurations.FRP rectangular section,pultruded FRP bar,Fiberglass angle,I-beam,wide-flange beams,channels,bars,round and FRP square pipe ect.custom shapes are available too.
FRP pultrusion profiles are made into kinds of structural platform,guardrail,grating,handrails,walkways,bridges,cable tray,handle of tool and antenna cover of mobile telecommunications and are extensively apply in the field of chemical anti-corrosion,waste water treatment,electric insulation,power development and telecommunications.
As the above outstanding property,FPR profile have replace plastic,iron,steel,aluminum products and have been widely used in many fields.
Optional dimensions
| FRP Pull wind Round Tube | ||
| Spec(OD/ID) mm | Thickness mm | Weight g/m |
| Φ30×26 Pullwinding | 2.0 | 325 |
| Φ40×34 Pullwinding | 3.0 | 665 |
| Φ50×43 Pullwinding | 3.5 | 900 |
| FRP Round Rod | ||
| Diameter mm | Weight g/m | Remark |
| Φ3.5 | 18 | |
| Φ4 | 24 | |
| Φ4.5 | 30 | |
| Φ5 | 37 | |
| Φ6 | 19 | Semicircle |
| Φ6 | 58 | |
| Φ8 | 96 | |
| Φ10 | 150 | |
| Φ12 | 215 | |
| Φ12.5 | 240 | |
| Φ14 | 300 | |
| Φ16 | 388 | |
| Φ20 | 595 | |
| Φ25 | 970 | |
| Φ36 | 1980 | |
| Φ32 | 1560 | |
| And 37/40/50 | ||
| FRP Round Tube | ||
| Spec(OD/ID) mm | Thickness mm | Weight g/m |
| Φ12.5×6.5 | 3.0 | 180 |
| Φ14×10 | 2.0 | 164 |
| Φ15×5 | 5.0 | 305 |
| Φ20×5 | 7.5 | 570 |
| Φ30×26 Pullwinding | 2.0 | 325 |
| Φ36×30 | 3.0 | 606 |
| Φ40×34 Pullwinding | 3.0 | 665 |
| Φ50×43 Pullwinding | 3.5 | 900 |
| Φ50×26 | 12.0 | 2800 |
| Φ50×42 | 4.0 | 1120 |
| Φ60×50 | 5.0 | 1680 |
| FRP Rectangular Tube/Rod | ||
| Width/Height/Thickness mm | Weight g/m | |
| 35×20×3 | 540 | |
| 60×30×(3/4) | 1060 | |
| 60×30×5 | 1500 | |
| 76×40×5 | 1780 | |
| 90×38×3.8 | 1750 | |
| 100×50×4 | 2300 | |
| 120×80×2.5 | 1900 | |
| 125×75×5 | 3700 | |
| 125×75×2.5 | 1850 | |
| 128×88×4 | 3280 | |
| 170×32×8 | 5800 | |
| 53*56mm Rod | ||
| FRP Square Tube/Rod | ||
| Width/Height/Thickness mm | Weight g/m | |
| 50×50×4 | 1450 | with cap die |
| 50×50×6 | 2000 | |
| 70×70×5 | 2540 | |
| 75×75×6 | 3250 | with cap die |
| 100×100×5 | 3750 | |
| 100×100×6 | 4500 | with cap die |
| 100×100×10 | 7060 | with cap die |
| 120*120*7.5 | 6500 | 7/10mm I/O |
| FRP Tooth Tube | ||
| Diameter/Thickness mm | Weight g/m | Draw |
| Φ36×5 | 723 | |
Resin System
| Part No | Resin Base | Application | Temperature resistance | Corrossion resistance | Flame resistance |
| VE | Vinyl Ester | Superior Corrosion Resistance and fire retardant | very Good | Excellent | very Good |
| ISO | Isophthalic Polyester | Industrial grade corrosion resistance and fire retardant | Good | Good | Good |
| ORTHO | Orthophthalic resin | Moderate corrosion resistance and fire retardant | Common | Common | Common |
| Unsaturated polyester resin | |||||
| E Glass Fiber: All direct roving from JUSHI GROUP | |||||
![6mm 8mm 10mm Thickness Round Flexible Pultruded Fiberglass FRP Insulation Flag Pole Rod Profiles]()
![6mm 8mm 10mm Thickness Round Flexible Pultruded Fiberglass FRP Insulation Flag Pole Rod Profiles]()
![6mm 8mm 10mm Thickness Round Flexible Pultruded Fiberglass FRP Insulation Flag Pole Rod Profiles]()
Packing & Delivery

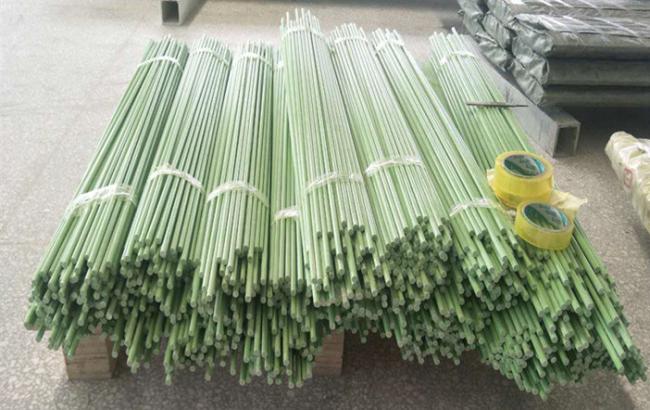

Fiberglass pole/rod

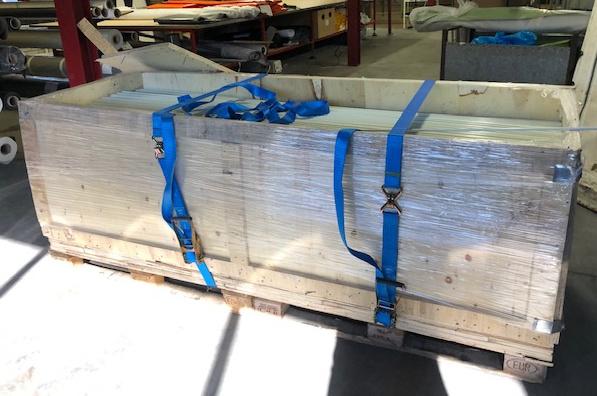

Packing:Carton + wrapping film, pallet / wooden case + packing belt
![6mm 8mm 10mm Thickness Round Flexible Pultruded Fiberglass FRP Insulation Flag Pole Rod Profiles]()
![6mm 8mm 10mm Thickness Round Flexible Pultruded Fiberglass FRP Insulation Flag Pole Rod Profiles]()

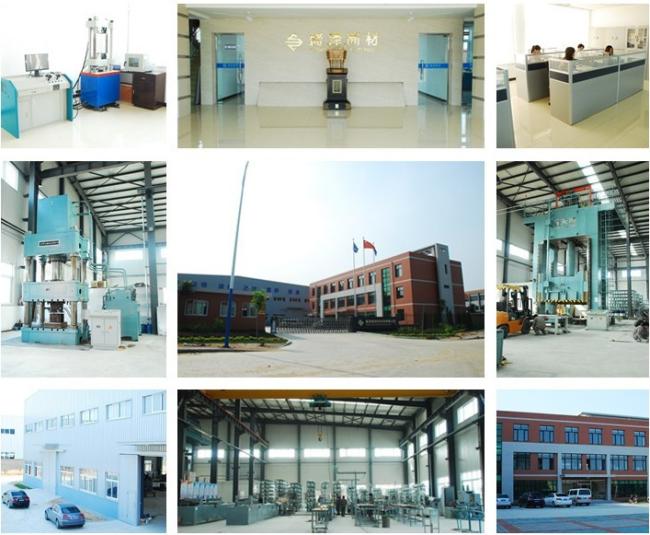

Company Profile
Main Processing Technic
1.Protruded Profile
2.SMC Moulding Products
3.Hand layup Products
4.Vacuum sorption
Products Advantage
1.High Voltage Protruded profile and Hand Layup Shell
2.Professional engineer with Design support with 24 years experience
3.Customize Large size Products.
4.One-stop service (Purchase/ Order / Tranportation )
5.OEM and ODM service
6.Purchasing relevant fiberglass products for Client

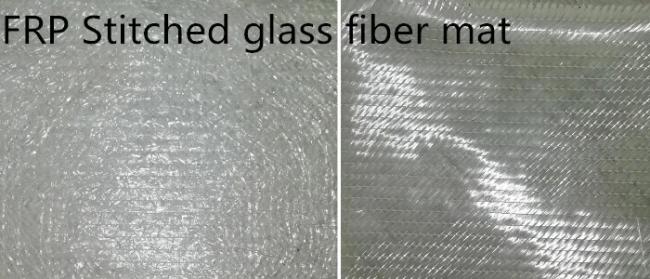

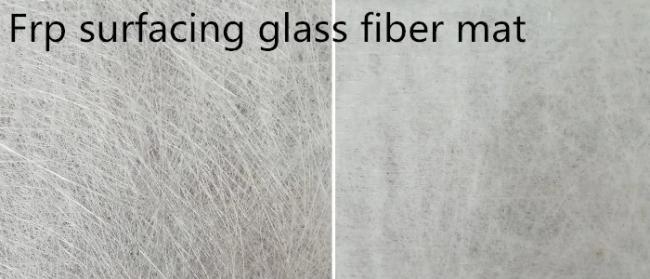

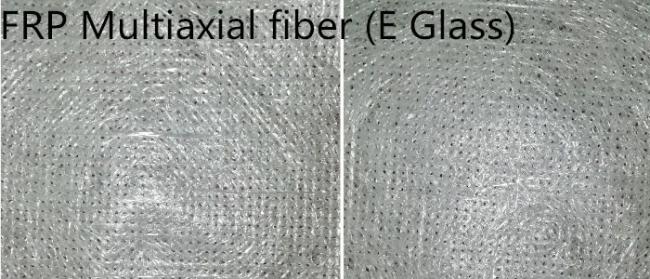

7.Raw materiall:E Glass Fiberglass Roving, Mat, Cloth
FAQ
Q:Are you trading company or manufacturer ?
A:We are factory and trade company
Q:How long is your delivery time?
A:Generally it is 5-10 days if the goods are in stock.Or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:Do you provide samples ?Is it free or extra ?
A:Yes, we could offer Certain sample for free charge but do not pay the cost of freight.
Please contact me to confirm.
Q:What is your terms of payment ?
A:Payment<=3000USD, 100% in advance.Payment>3000USD, 30% T/T in advance ,balance before shippment.
