Pultrusion High Strength FRP Cross Arm Square Tubes Rectangular Fiberglass Product for Industy Equipment
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Welcome to our online shop!!!
Details Images
| Rectangular Tube /Rod | |||
| Width | Height | Thickness | Weight g/m |
| 35 | 20 | 3 | 540 |
| 51 | 27 | 4 | 1076 |
| 60 | 30 | 5 | 1500 |
| 76 | 40 | 5 | 1780 |
| 90 | 38 | 3.8 | 1750 |
| 100 | 50 | 4 | 2300 |
| 120 | 80 | 2.5 | 1900 |
| 125 | 75 | 5 | 3700 |
| 125 | 75 | 2.5 | 1850 |
| 128 | 88 | 4 | 3280 |
| 170 | 32 | 8 | 5800 |

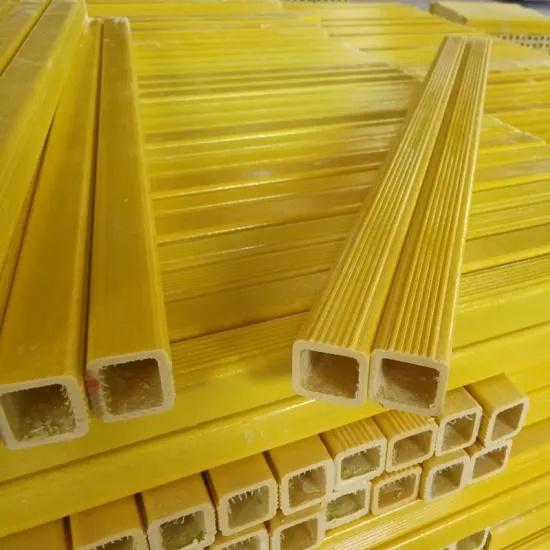

| Square Tube /Rod | |||
| Width | Height | Thickness | Weight g/m |
| 50 | 50 | 6 | 2000 |
| 100 | 100 | 5 | 3750 |
| 100 | 100 | 6 | 4500 |
| And 100*100*10 | |||
![Pultrusion High Strength FRP Cross Arm Square Tubes Rectangular Fiberglass Product for Industy Equipment]()
Product advantage
* Light weight.
*Good strength.
*Impact resistance.
*Excellent dielectric properties.
*Corrosion resistance
*Heat resistance
Manufacturing Technique
| Glass Fiber + Resin System | |||||
| Part No | Resin Base | Application | Temperature resistance | Corrossion resistance | Flame resistance |
| VE | Vinyl Ester | Superior Corrosion Resistance and fire retardant | Very Good | Excellent | Very Good |
| ISO | Isophthalic Polyester | Industrial grade corrosion resistance and fire retardant | Good | Good | Good |
| ORTHO | Orthophthalic resin | Moderate corrosion resistance and fire retardant | Common | Common | Common |
| EPOXY | EPOXY Resin | ||||
Technical Date
| Pultrusion Profiles Performance Index | |||
| Property | TEST Method | Units | Mean-Value lw/cw |
| Tensile Strength | ASTM D638/GB1447--83 | MAa | 210/75 |
| Tensile Modulus | ASTM D638/GB1447--83 | GPa | 22/10 |
| Flezural Strengh | ASTM D790/GB1449--83 | MPa | 302/76 |
| Flezural Modules | ASTM D790/GB1449--83 | GPa | 18.6/7.2 |
| Compressive Strengh | ASTM D695/GB1448--83 | MPa | 258/98 |
| Compressive Modules | ASTM D695/GB1448--83 | GPa | 19.2/7.2 |
| Interlaminar Shea(LW) | ASTM D2344/GB3357--82 | MPa | 24.5 |
| Charpy Impact Strengh | ISO179/GB1451--83 | 2 KJ/m | 279 |
| Barcol Hardness | ASTM D2583 | - | 50 |
| Elongation to break | ASTM D638/GB1447--83 | % | 0.9 |
| Water Absorption(MAX) | ASDN D570/GB1462 | % | 0.57 |
| Density | ASTM D792 | 3 g/cm | 1.8 |
| Coefficient of Thermal Expansion | ASTM D696/GB2572--82 | -6 10 /ºC | 5.1 |
| Flammability Classification | UL94/GB8924--88 | - | VO(32) |
| Tunel Test | ASTM E--84 | - | 25Max |
| Flammability Extinguishing | ASTM D635 | - | self extinguishing |
| Arc Resistance(LW) | ASTM D495/GB1411--78 | min/(s) | 120 |
| Dielectric Constant(PF) | ASTM D150/GB1409--79 | @60Hz | 5 |
| Dielectric Strength(PF) | ASTM D149/GB1408--78 | KV/mm | 8 |
| Dielectric Strength(PF) | ASTM D149/GB1408--78 | KV/mm | 1.6 |
| Surface Resistance | ASTM D257/GB1410--78 | Ω | 15 12 10 -10 |
| Volume Resistance | ASTM D257/GB1410--78 | Ω.cn | 15 12 10 -10 |
Related Products
![Pultrusion High Strength FRP Cross Arm Square Tubes Rectangular Fiberglass Product for Industy Equipment]()
![Pultrusion High Strength FRP Cross Arm Square Tubes Rectangular Fiberglass Product for Industy Equipment]()
![Pultrusion High Strength FRP Cross Arm Square Tubes Rectangular Fiberglass Product for Industy Equipment]()
![Pultrusion High Strength FRP Cross Arm Square Tubes Rectangular Fiberglass Product for Industy Equipment]()
Packing & Delivery
![Pultrusion High Strength FRP Cross Arm Square Tubes Rectangular Fiberglass Product for Industy Equipment]()
Packing Shipping
1.Carton + pallet 1.Waterway transportation
2.Export wooden box 2.air transport
Our Company

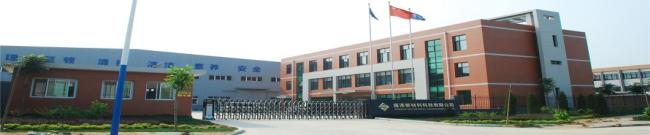

Shengze is a leading and profession manufacturer of fiberglass products for over 20 years. The main products are various kinds of FRP pultrusion profiles, SMC products , FRP hand lay out product and vacuum infusion products. The annual production capacity is about 8,000 tons.
![Pultrusion High Strength FRP Cross Arm Square Tubes Rectangular Fiberglass Product for Industy Equipment]()
![Pultrusion High Strength FRP Cross Arm Square Tubes Rectangular Fiberglass Product for Industy Equipment]()
![Pultrusion High Strength FRP Cross Arm Square Tubes Rectangular Fiberglass Product for Industy Equipment]()
Main Processing Technic Products Advantage
1.Protruded Profile / Continuous Formation 1.High Voltage Protruded profile and Hand Layup Shell
2.SMC / BMC Molding Products 2.Professional engineer with Design support with 24 years experience
3.Hand layup Products (Option: With Pattern Print) 3.Customize Large size Products.
4.RTM / Infusion With air bag 4.One-stop service (Purchase/ Order / Tranportation )
FAQ:
1. What is your minimum order quantity?
Our MOQ is 1 meter.(Without limiting sizes and specification,according to actual situation)
2. How can I get samples to check your quantity?
We can offer samples for free.
3. Can you do the production as customized?
Yes, we have a professional technique team, we could produce the fiberglass depends on your requirements.
4.what length of the fiberglass profiles?
Any length can be cut. according to customer requirements.
5.How to pay ?
Usually by T/T , L/C , Paypal, Western Union also ok.
