Mount Solar System PV Mount Solar Ground System Solar Frame
Benefits: Urethane is 40% stiffer than Polyester, this allows for a stiffer profile or reduction in profile thickness by about 25% which reduces the profile weight and maintains the same stiffness as Polyester resin technology.
Advantages of Polyurethane vs Polyester Resins
1. Increased Strength
2. Improved Transverse properties
3. Highest fiber volume
4. Higher specific strength and stiffness
5. Reduced wall thickness (weight savings)
6. Stronger profiles spanning greater distances
7. Excellent impact resistance (Polyester has poor impact resistance in comparison)
8. Excellent abrasion resistance
9. Easy fabrication
10. Excellent screw pull out strength (compared to traditional polyester pultrusion
11. Much lower smoke generation than Polyester or Vinyl Ester
12. Excellent corrosion resistance
13. No Styrene emissions, no peroxides, NO VOCs
| Performance comparison between Polyurethane profiles and other materials | |||||
| Performance | Aloy | Nylon Bar | PVC | Polyester FRP | Polyurethane FRP |
| Density g/cm3 | 2.79 | 1.3 | 1.5 | 2.0 | 2.1 |
| Thermal Conductivity W/m2K | 160 | 0.3 | 0.35 | 0.40 | 0.25 |
| Bending strength MPa | 250 | 80~180 | 30 | 300~400 | 1594 |
| specific strength 103 N·m/kg | 89.6 | 61~138 | 21.4 | 166~222 | 838.9 |
| Flexural modulus GPa | 50~80 | 2~5 | 2.2~5 | 10~22 | 41.3 |
| Specific stiffness 106 N·m/kg | 17~28 | 1.5~3.8 | 1.5~3 | 6~12 | 21.7 |
| Dimensional shrinkage ≤ % | 0.6 | 0.4 | 0.4 | 2 | 0.2 |
| Linear expansion coefficient 10-5K-1 | 2.2~2.4 | 2.4~3.5 | 5~8.5 | 0.73 | 0.5~0.8 |

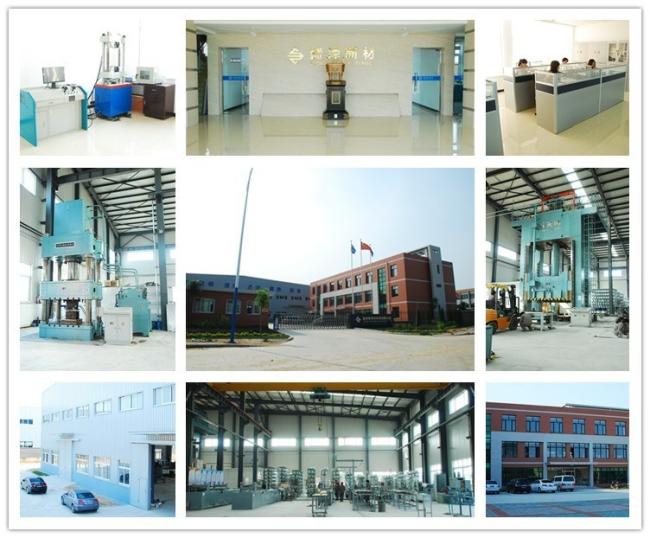

Company Profile
Main Processing Technic
1.Protruded Profile
2.SMC Moulding Products
3.Hand layup Products
4.Vacuum sorption
Products Advantage
1.High Voltage Protruded profile and Hand Layup Shell
2.Professional engineer with Design support with 24 years experience
3.Customize Large size Products.
4.One-stop service (Purchase/ Order / Tranportation )
5.OEM and ODM service
6.Purchasing relevant fiberglass products for Client
7.Raw materiall:E Glass Fiberglass Roving, Mat, Cloth
FAQ
Q:Are you trading company or manufacturer ?
A:We are factory and trade company
Q:How long is your delivery time?
A:Generally it is 5-10 days if the goods are in stock.Or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:Do you provide samples ?Is it free or extra ?
A:Yes, we could offer Certain sample for free charge but do not pay the cost of freight.
Please contact me to confirm.
Q:What is your terms of payment ?
A:Payment<=3000USD, 100% in advance.Payment>3000USD, 30% T/T in advance ,balance before shippment.
