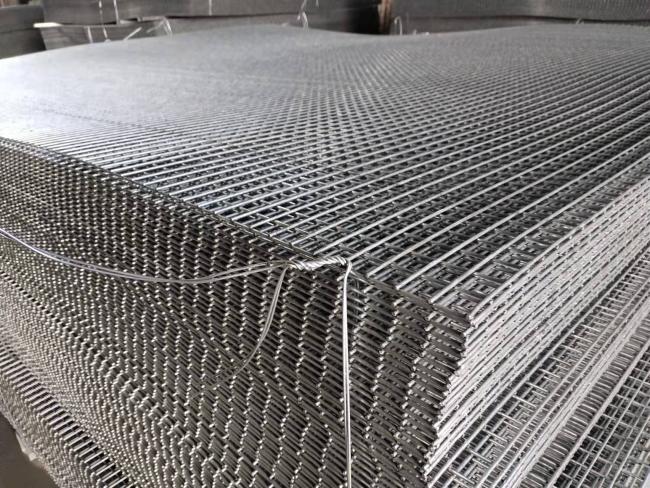

5cm Hole Size 1x2m Stainless Steel Welded Wire Mesh Panel For Construction

5cm Hole Size 1x2m Stainless Steel Welded Wire Mesh Panel For Construction

Raw Material:  Available in Stainless Steel and Galvanized Material

Types: Including galvanized welded wire mesh (electro galvanized welded wire mesh, hot-dip galvanized welded wire mesh),welded stainless steel wire mesh and PVC coated welded wire mesh.

According to different process: Electro-galvanized welded wire mesh can be classified to electro-galvanized before welding and electro galvanized after welding.

Hot-dip galvanized welded wire mesh can be classified to hot-dip galvanized before welding and hot-dip galvanized after welding. PVC /Powder Coated After Welded

Characteristic: Steady construction, good corrosion resistance and oxidation resistance, etc.

Application:

Welded Wire Mesh widely used in the industry, agriculture, aquaculture, building, communication and transportation and mineral extraction, etc.

It serves as guards,fences in buildings and factories, Welded wire mesh in agriculture as animal enclosure ,poultry cage, basket for holding eggs, foodstuff basket, paper basket or decorative fields in home or office.;

Welded wire mesh also serves in horticulture industry as guards for trees and plants etc.

Technical specifications:

WIRE DIAMETER	hole size	Width	Length
1.65mm	15x15mm	1.0/1.2/1.5m	25/30m
1.9mm	75x50mm	1.0/1.2/1.5/1.8/2.0m	20/25/30m
2.0mm	50x100mm	1.0/1.2/1.5/1.8/2.0m	20/25/30m
2.3mm	50x150mm	1.0/1.2/1.5/1.8/2.0m	20/25/30m
2.76mm	50x100mm	1.0/1.2/1.5/1.8/2.0m	20/25/30m
2.76mm	50x150mm	1.0/1.2/1.5/1.8/2.0m	20/25/30m
1.24mm	25x25mm	0.5/1.0m	25/50m

II. Advantages of reinforcing welded wire mesh

1. High intensity anti-high temperature.
2. Better strength and strong integration
3. Flat & even surface and strong structure
4. Anti-rust property
5. Not easy to loosen even be cut into parts or exerted force on the parts
6. A long service life and the service life can reach to several decades

III. Surface treatment of reinforcing welded wire mesh

1. Hot-dipped galvanized after welding (GAW);
2. Hot-dipped galvanized before welding (GBW);
3. Electro galvanized after welding (GAW);
4. Electro galvanized before welding (GBW);

5. PVC coated welded wire mesh

IV. Specification of reinforcing welded wire mesh

Welded wire mesh Use

Welded wire mesh is used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.

Welded wire mesh can be processed into wire mesh fence which can be used in Garden,yard,ground,railway,highway.

Our  Exhibition

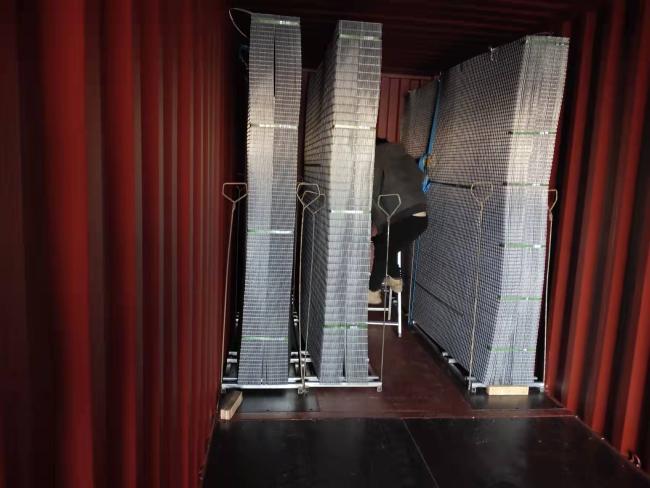

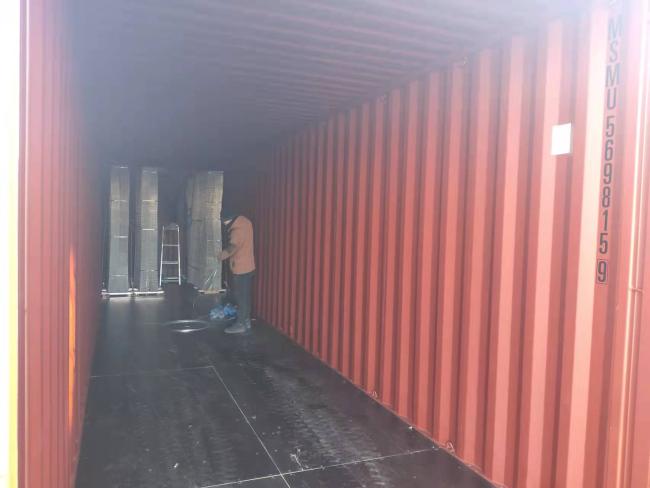

Loading:







company information

Hebei Qijie Wire Mesh MFG Co., Ltd. is located in Anping county, Northern China, which is famous as "the hometown of wire mesh" in the country.



The company was founded in 1999 with a registered capital of 500,000 US dollars, covering 40,000 square meters, has 3 plant areas, 22 stainless steel woven mesh machines, 28 welded wire mesh machines, 11 double twisted hexagonal gabion baskets machines, 8 cutting and flattening mesh machines, and 2 automatic PVC coating lines. Qijie does sales both home and abroad with annual amount of more than $ 20 million, the main products are stainless steel fly screen mesh, fence panels, gabion baskets, woven screening mesh, welded wire mesh, expanded metal mesh, perforated metal and various wire products.

Our main aim is to ensure customer satisfaction by providing superior quality products at reasonable prices. We use meticulous quality control procedures and analysis in order to ensure our products meet the international standards. A combination of competitive prices, on-time delivery and quality guarantee will make us our customer's best choice.
