1m x 2m 201 304 316 316l Stainless Steel Welded Wire Mesh For Building
1m x 2m Stainless Steel 304 Welded Wire Mesh

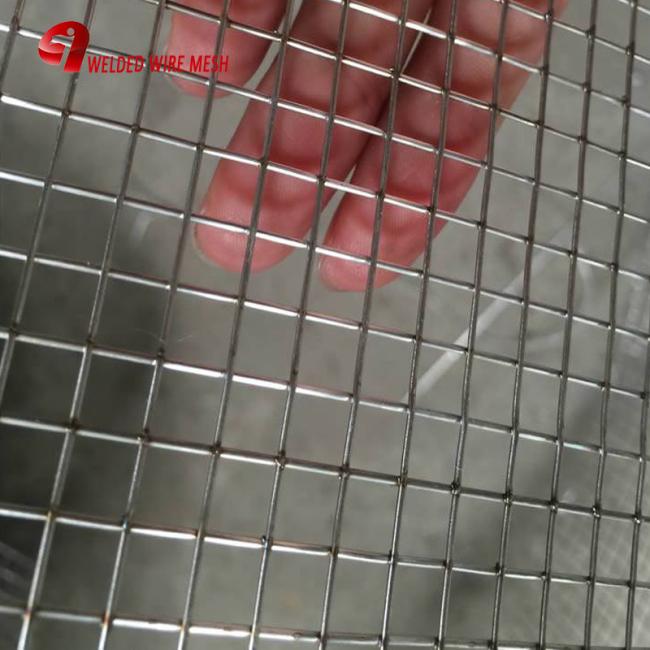

Stainless Steel Welded Wire Mesh is also called stainless steel welded mesh, it is a grid that consists perpendicular wire strands, which are welded at each intersection, the joining of the wires at the intersection is achieved by electric resistance welding. According to the welded mesh and wire diameter, it can made into stainless steel welded mesh panels and welded mesh rolls.
304,316 stainless steel welded wire mesh panel
Material:Stainless steel wire,low carbon steel wire.
Weaving:Including galvanizing before or after welding.It is divided to hotdipped,electrical galvanizing,pvc coating,plastic soaled,plastic soaked,specilal electric welded wire mesh.
Property:It has the characteristics of corrosion-resisting and oxidation-resisting.
Uses:It is used in Industry,agriculture,building.transportation,mine,court,lawn,breeding,for fence,decoration,machine protection etc.
Welded Wire Mesh Panel is made of superior quality welded mesh, with flat even surface, firm structure, be used extensively in building, food, agriculture and so on.
welded wire mesh Specifications
| Opening | Wire Diameter | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
|

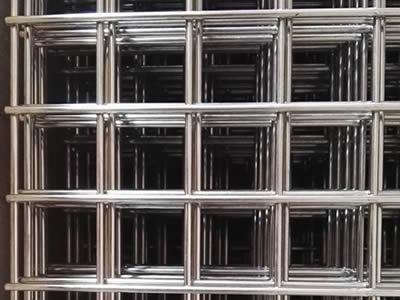

Stainless steel welded wire mesh panels with beautiful look, have a good strength. |

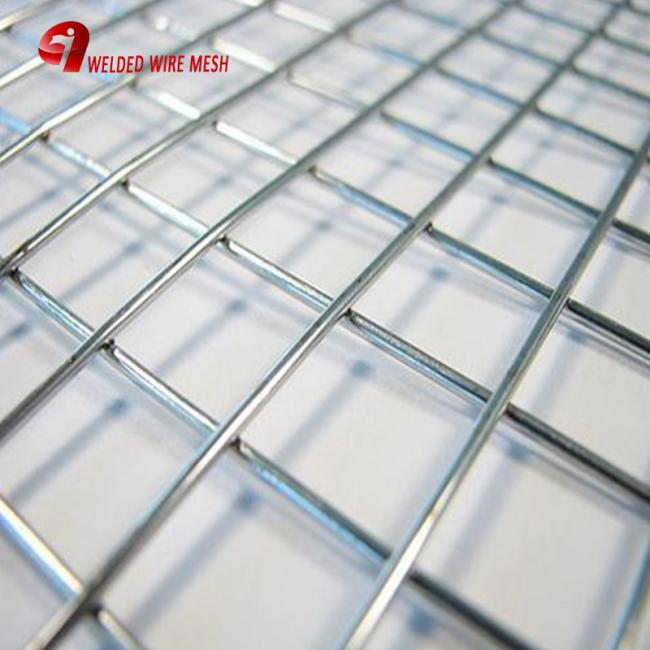

Stainless steel welded wire mesh rolls with good plasticity as well as durable. |
Specification:
All the spacing between wires are controlled by an automatic mechanism of high reliability. So the welded wire mesh size like wire diameters, opening size and panel weight are all available in a wide range. According to its size it can be made into panels and rolls. The materials and size can be chosen from a wide range.
- Materials: SS201, SS202, SS302, SS304, SS304L, SS316, SS316 and so on.
- Wire diameter: from 0.6 mm to 2.6 mm.
- Mesh opening: mini 6.4 mm and max 200 mm is available.
Specification list of Stainless Steel Welded Wire Mesh
| Code | Mesh | Wire Diameter | Weight | ||
|---|---|---|---|---|---|
| SSWM-1 | inch | mm | Wire Gauge(SWG) | mm | kg/m2 |
| SSWM-2 | 1/4" × 1/4" | 6.4 mm × 6.4 mm | 22# - 24# | 0.6 mm - 0.7 mm | 0.72 - 0.98 |
| SSWM-3 | 3/8" × 3/8" | 10.6 mm × 10.6 mm | 19# - 22# | 0.7 mm - 1.0 mm | 0.65 - 1.3 |
| SSWM-4 | 1/2" × 1/2" | 12.7 mm × 12.7 mm | 16# - 23# | 0.6 mm - 1.6 mm | 0.36 - 2.56 |
| SSWM-5 | 5/8" × 5/8" | 16 mm × 16 mm | 18# - 21# | 0.8 mm - 1.2 mm | 1.2 - 1.3 |
| SSWM-6 | 3/4" × 3/4" | 19.1 mm × 19.1 mm | 16# - 21# | 0.8 mm - 1.6 mm | 0.4 - 1.7 |
| SSWM-7 | 1" × 1/2" | 25.4 mm × 12.7 mm | 16# - 20# | 0.9 mm - 1.6 mm | 0.61 - 1.92 |
| SSWM-8 | 1" × 1" | 25.4 mm × 25.4 mm | 14# - 21# | 0.8 mm - 1.2 mm | 0.32 - 2 |
| SSWM-9 | 1 1/2" × 1 1/2" | 38 mm × 38 mm | 14# - 19# | 1.0 mm - 2.0 mm | 0.3 - 1.3 |
| SSWM-10 | 1" × 2" | 25.4 mm × 50.8 mm | 14# - 16# | 1.6 mm - 2.0 mm | 3.84 - 6 |
| SSWM-11 | 2" × 2" | 50.8 mm × 50.8 mm | 12# - 16# | 1.6 mm - 2.6 mm | 0.25 - 1.6 |
| SSWM-12 | 2" × 3" | 50 mm × 75 mm | 13# - 16# | 1.6 mm - 2.3 mm | 0.53 - 1.10 |
| SSWM-13 | 3" × 3" | 75 mm × 75 mm | 12# - 16# | 1.6 mm - 2.6 mm | 0.17 - 0.43 |
| SSWM-14 | 2" × 4" | 50 mm × 100 mm | 13# - 14# | 2.0 mm - 2.3 mm | 0.75 - 0.99 |
| SSWM-15 | 4" × 4" | 100 mm × 100 mm | 13# - 14# | 2.0 mm - 2.3 mm | 0.5 - 0.66 |
| SSWM-16 | 8" × 8" | 200 mm × 200 mm | 13# - 14# | 2.0 mm - 2.3 mm | 0.25 - 0.33 |
Width & Length
| |||||
Technical Note:
| |||||
Characteristic compared with PVC or Galvanized welded wire mesh:
- Stainless steel welded wire mesh has flat even surface and strong structure, its high intensity makes it has long service life, even up to several decades.
- The wire itself has excellent corrosion resistance, acid and alkali resistance, high temperature resistance, harsh chemicals resistance, so it can meet your demands of long exposure in corrosion environment.
- Compared with other material welded wire mesh or PVC-coated welded iron wire mesh, it is non-toxic, so it can used for food.
- By its very nature stainless steel wire need no additional finish, such as galvanizing or PVC to protect it, so it can compensate for its seemingly higher cost.
- Due to this wire mesh panels has beautiful and bright luster, it looks cleanliness and hygiene, furthermore, this kind of product is easy to clean.
- Welded wire mesh with strong integration, strong welded points, well-proportioned meshes, so it has a good strength to hold heavy weight.
Owing to the stainless steel material has unique advantage, the stainless steel welded wire mesh has a wide application, for example:
- It is traditionally utilized as floor heating, ceiling tiles, in buildings and construction; as the cover to protect machines and equipment in industry.
- In aquaculture, it used as animal enclosure, like restrain goat, horse, cow, raise chickens ,ducks, geese, rabbits, pigeons, and so on.
- In agriculture, it used for the tree, lawn, ranch in various size and shapes, for greenhouse benches and corn storage.
- In transportation, it used as highway fence, it also served as the road green belt protection net.
- In production, it used as wire mesh decking in logistics warehouse, display stand for goods in supermarket.
- In our daily life, it used as window resection fender, food baskets, shopping trolleys, porch or channel fence.
- For the birds, the stainless steel welded wire mesh is the only way to prevent zinc poisoning in birds, its strong structure and heavy wire also makes it become the best choice of zoo fence.
