Tower Crane RCS Hoist Reducer CE ISO
Tower crane 70RCS hoist reducer
Place of Origin: Jiangxi, China (Mainland)
Model Number: 70RCS
Name: Tower crane hoisting reducer
Model: 70RCS
Motor power: 51.5kw
Condition: 100% new
Size: 920*850*550mm
Color: Customer Required
Application: Tower Crane
Packing: Wooden Case
Warranty: 6 Months
Product introduction of the tower crane hoist reducer
RCS hoist mechanism reducer is the speed reducing appliance for hoist mechanism, connected between motor and drum, which consists of a set of gears(19 teeth gear, 38 teeth gear, 99 teeth gear ) and bevel gears. High speed trolling motor shaft connect to the reducer, and the speed was lowered by the transmission of gears.
With the best raw material and delicate casting machines, our reducer is of smooth transmission and longer service life.
Tower crane hoist reducer is used for tower crane spare parts. For Manitowoc, Liebherr, SYM, SCM, Zoomlion, Yongmao tower crane and so on.

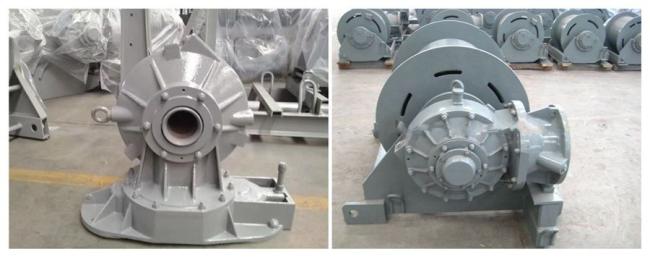

Picture of tower crane hoisting reducer
Tower crane hoisting reducer parameters
|
Model |
45RCS20 |
55RCS25 |
70RCS25 |
70RCS30 |
70RCS40 |
|
Rated Single Rope Tension (KN) |
20 |
25 |
25 |
30 |
40 |
|
Magnification |
4 |
4 |
4 |
4 |
4 |
|
Rated Power of the motor (KW) |
33 |
41 |
51.5 |
51.5 |
51.5 |
|
Working Frequency (Hz) |
50 |
50 |
50 |
50 |
50 |
|
Hoisting Speed (m/min) |
20/40 |
21/42 |
25/50 |
12/6 |
15/30 |
|
Hoisting Capacity (t) |
8/4 |
10/5 |
10/5 |
12/6 |
16/8 |
|
Rope capacity |
328 |
500 |
550 |
525 |
550 |
|
Nominal Diameter of wire rope (mm) |
13 |
14 |
14 |
18 |
20 |
Product details of the Tower crane hoist reducer
RCS tower crane electrical control cabinet is a tower crane hoist electrical control system solution independently designed and developed by our company on the basis of advanced tower crane control technologies. It has such characteristics as high working rate, good speed regulation performance, smooth working, high efficiency, and so on.

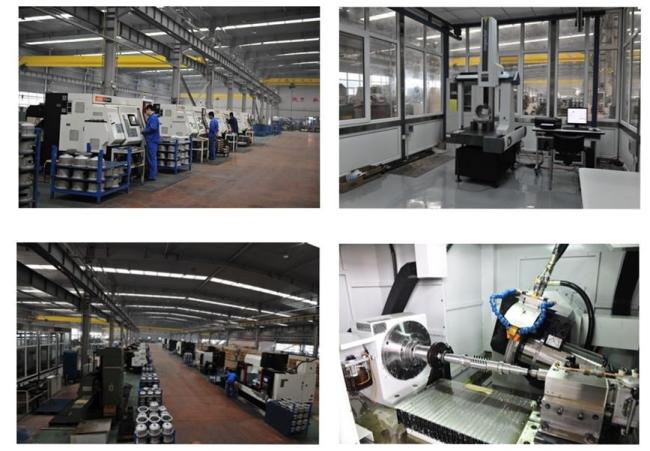

Manufacturing hoist reducer

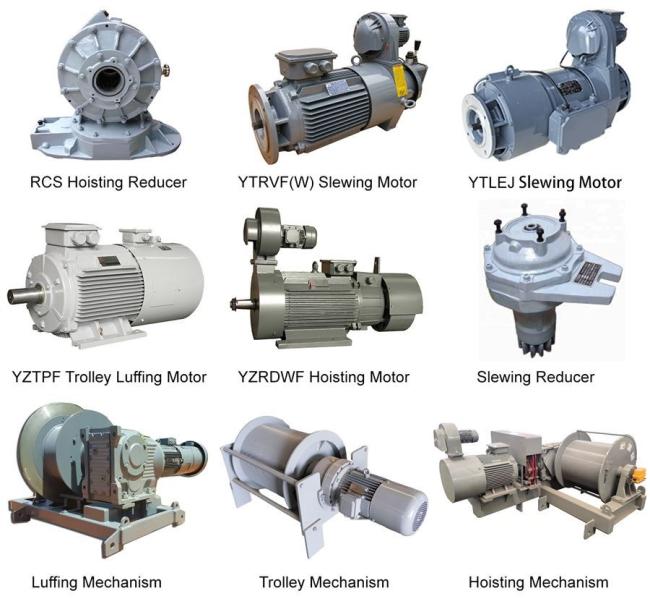

Other related products
What information should I provide when inquiring?
1. model of crane
2. part number of spare parts
3. nameplate or drawing of spare parts
4. photo as reference
5. more detailed information, more better.
What is the Minimum Order Quantity?
MOQ is one set.
