TCP/IP One Door Access Controller Panel System JS-WEG02 with Free Software Access Controller in Weigand 26
TCP/IP One Door Access Controller Panel system with free software access controller
Access Control Panel provide the solution for powerful combinations of access control and alarm monitoring within off-line networks. The user-friendly Access software programs the system within a few minutes, from a non-dedicated PC.
Product Parameter | Parameter Description |
Description | Control 1 door, get in by card and get out door by exit button |
Communication | TPC/IP |
Door Controlled | 1-Door/2-Door/4-Door |
Support Reader type | Weigand 26 |
Software Language | English |
Max qty of the software supported | Limited |
Max Distance from Reader to Controller | 100m (suggestion distance 80m) |
Max Distance between Controllers | TCP/IP: Depends on net coverage area |
Read data | Keypad (card+password, supper password) |
Open door method | Open door in remote distance |
Open too long alarm | Yes |
Multi card open | Yes |
Timing open or close | Yes |
Keypad password | Yes |
Force open alarm | Yes |
This access control board's software provides numerous access control and alarm monitoring features: expiry date for clubs, automatic activation, time zones, supervision, anti-passback, activity reports... Each alarm input is programmable: operating mode (NO or NC), time zones, local reflex (activation of outputs according to input status). Specific alarms are triggered according to the number of unsuccessful attempts, the time limit for door closing (door alarm), the duress code...Whenever required, the data stored in the controllers is transferred to the computer and activity reports are printed. Each controller works independently and keeps its own database.

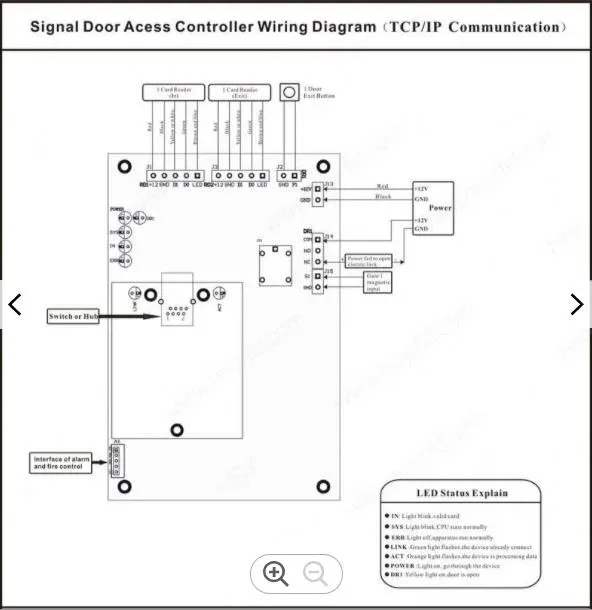

Picture below is the design file for one doors access control panel.
