AT-06pro 6-Inch Professional Passive Speaker | 100W–400W High-Output Loudspeaker System For Commercial AV Installations, Corporate Spaces & Live Event Production.Audio Pro Speakers.OEM,China Price.
AT-06pro 6-inch professional passive speaker | 100W–400W High-Output Loudspeaker System for Commercial AV Installations, Corporate Spaces & Live Event Production
The AT-06pro passive speaker delivers up to 122dB peak SPL, 400W peak power handling, and a full 80Hz–20kHz frequency response with 96dB sensitivity. Engineered to rival JBL Professional and Yamaha Commercial Audio in vocal clarity, efficiency, and installation versatility—yet optimized for cost-effective deployment across global conference rooms, auditoriums, and multipurpose venues requiring reliable, high-fidelity commercial sound solutions.
Engineered for professional vocal reinforcement and dynamic karaoke environments, this speaker system delivers studio-grade vocal intelligibility, high-SPL output, and commercial-grade resilience in a space-optimized chassis.
Featuring a time-aligned dual-driver two-way configuration with precision-tuned bass reflex enclosure, it achieves phase-coherent dispersion and extended low-end response—optimized for natural voice projection, articulate lyric clarity, and immersive musical fidelity across live entertainment, banquet halls, and multipurpose event venues.
Technical parameters
| System type | 2-unit 2-way phase-inverted |
| Rated powe | 100W |
| Maximum power | 200W |
| Peak power | 400W |
| Nominal impedance | 8 OHMS |
| Recommended amplifier rated output power | 200W-300W@8 OHMS |
| Nominal sensitivity (1W@1m) | 96dB |
| Maximum sound pressure level (Pmax@1m) | 116dB@100w ( 122dB @ 400w ) |
| Frequency bandwidth | 80Hz-20KHz |
| Nominal directivity (-6dB) | 90°H×90°V |
| Transducer Configuration | Ferrite Low Frequency Driver 6.5″ (30mm voice coil 115 magnet ) × 1 Ferrite high frequency driver 1" (25 mm voice coil 70 magnet ) × 1 |
| Crossover mode | Passive |

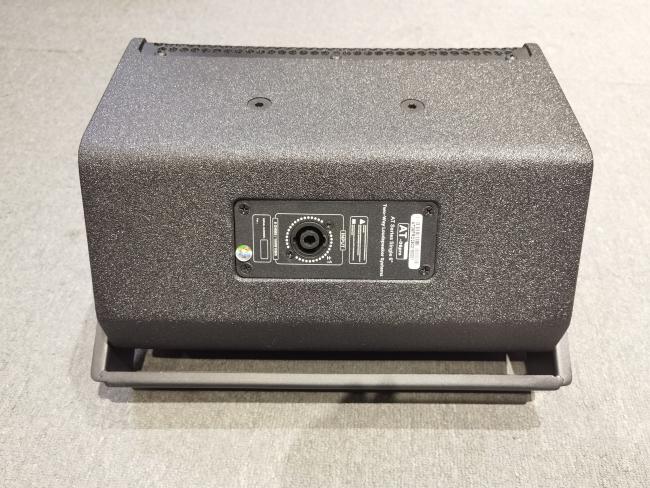

| Connector |
SPEAKON NL4×1 (PIN1+=POS . PIN1-=NEG) Two-position screw terminal × 1 |
| Box material | 12mm (0.47″) high quality MDF density board |
| Box size | W19 1 mm*D21 1 mm*H 310mm |
| Color | The default color is black environmentally friendly water-based paint spraying , other colors can be customized upon request |
| Weight (each) | 6.26 kg |
| Reference application areas | Suitable for conference rooms, multi-function halls, churches, auditoriums |
