High Speed 2 Layers Blow Moulding Machine for Road Barrier Capacity and 180kw Power
HYBM-Road barrier
1. machine specification
|
road barrier |
2layers |
| Capacity rang | / |
| Machine dimension | 7*5.4*5.2 |
| Average | 100KW |
| Total power | 180KW |
| Accumulator capacity | 18KG |
| E*truder motor | 37KW*2 |
| Screw diameter | 90MM*2 |
| Screw L/D ratio | 30:1 |
| Plasticizing capacity | 200KG/H |
| Platen size | 1000*1200MM |
| Platen distance | 850-2000MM |
| Clamping force | 800KN |
| Servo motor | 28KW |
2.machine details

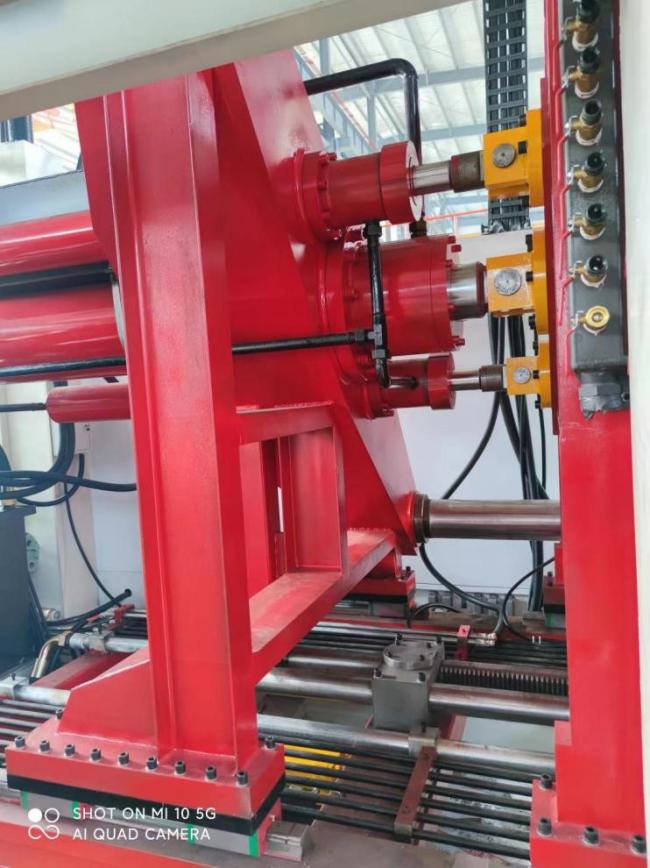

Huayu patented three-cylinder rapid opening and closing mold locking system

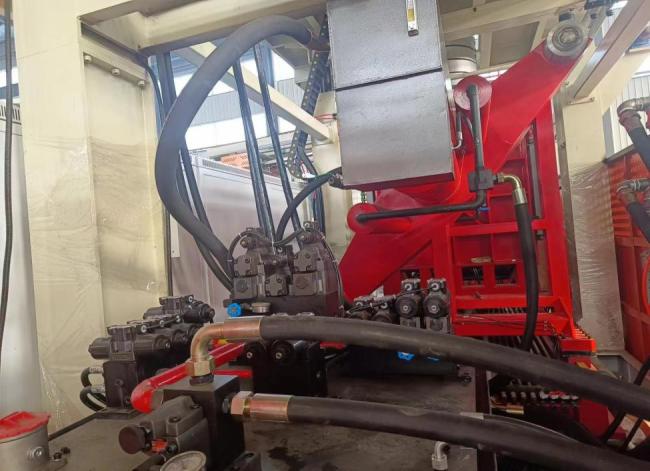

Huayu patented integrated hydraulic station
The world-famous Taiwan Shangyin guide rail has more sliders, more reasonable load bearing and more stable operation

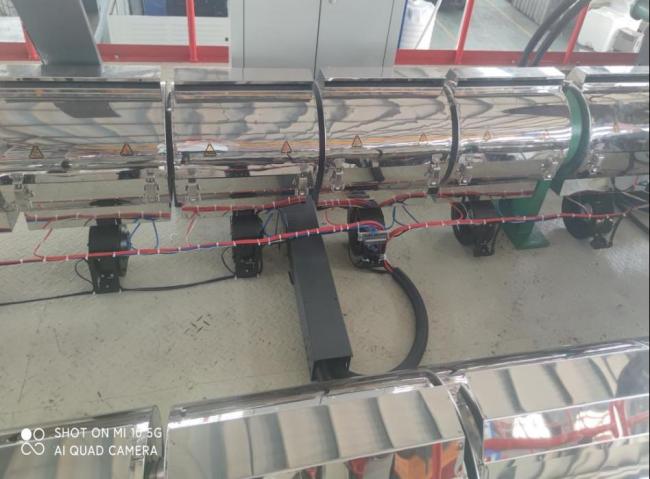

High speed screw
3. company advantage
Experienced Engineer Team, Top Brand Accessories, Strict Quality Control and Certification System, Powerful Machining and Processing Ability, Create the High Quality Huayu Machinery!
In the design and production process of Huayu Hollow Blow Molding Machine, the latest technology and supporting facilities are adopted, such as German SEW reducer, PLC controller, American Muger wall thickness controller, etc., to further optimize the overall performance of the equipment and expand its application fields.
Provide customers with technical guidance and continuous optimization of products for life.
