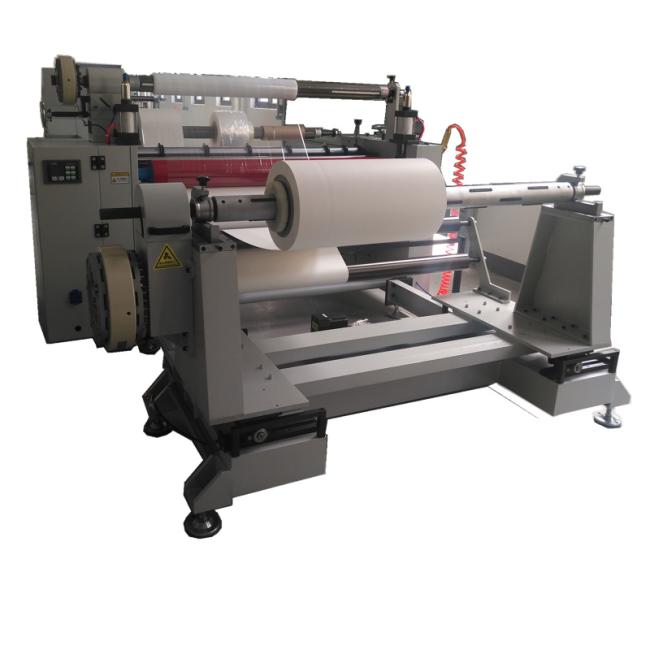

Corrugated Plastic Rolls /Laminate PVC/Pet/PP/Film/Fabric Rewind Slitter Slitting Rewinding Machine
Corrugated Plastic Rolls /Laminate PVC/Pet/PP/Film/Fabric Rewind Slitter Slitting Rewinding Machine
![Corrugated Plastic Rolls /Laminate PVC/Pet/PP/Film/Fabric Rewind Slitter Slitting Rewinding Machine]()
![Corrugated Plastic Rolls /Laminate PVC/Pet/PP/Film/Fabric Rewind Slitter Slitting Rewinding Machine]()

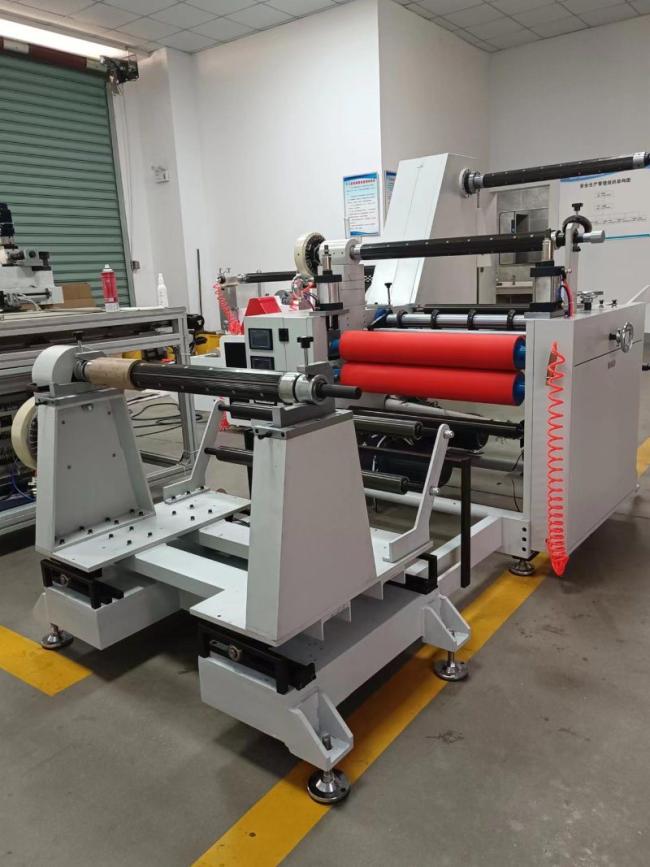

Two material laminating together (film/adhesive tape/PVC/PET/paper etc are can processing ) and then slitting rewinding machine
![Corrugated Plastic Rolls /Laminate PVC/Pet/PP/Film/Fabric Rewind Slitter Slitting Rewinding Machine]()

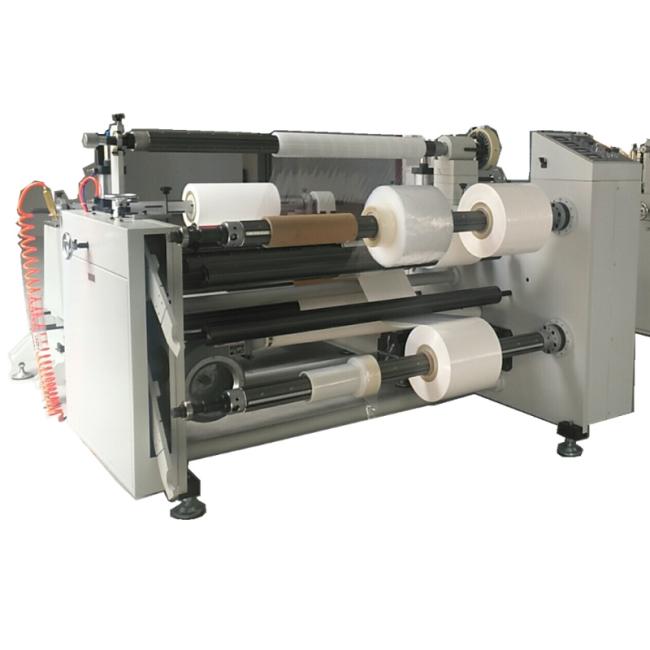

Automatic Webguide and Slitting Rewinding Machine with laminating function
Auto Slitting and Rewinding Machine for Meltblown
Functional characteristics:
This machine is sticking and slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding and receiving materials.
Imported magnetic powder clutch is adopted to control the tension.Imported gas sensitive device is adopted to detect the rectification of rolling,
with fully automatic hydraulic rectification control. Automatic detection, rectification and metering can be realized.
It is characterized by accurate slitting, fast slitting speed, easy of operation and maintenance, etc.
Purpose:
It is applicable for the laminating and slitting tooling of industrial adhesive tape, cellophane tape, protective film,copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, Meltblown etc.
This mahcine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
Model: DP-1300 Laminating and Slitting Machine
Max Feeding Width ( mm ): 1300
Main Engineer Power ( KW ): 3KW
Speed (m/min ): 60
Feeding Diameter ( mm ): 600
Rewinding Diameter(mm): 450
Precision ( mm ): ± 0.10
Power: 380V 50Hz
| Model | DP-650 Laminating and Slitting Machine | DP-1300 Laminating and Slitting Machine | DP-1600 Laminating and Slitting Machine |
| Max Feeding Width ( mm ) | 650 | 1300 | 1600 |
| Main Engineer Power ( KW ) | 3KW | 3KW | 3KW |
| Speed (m/min ) | 60 | 60 | 60 |
| Size ( mm ) | 1400*1200*1300 | 1650*1450*1300 | 1650*1450*1300 |
| Weight (kg) | 800 | 1500 | 1800 |
| Feeding diameter ( mm ) | 600 | 600 | 800 |
| Rewinding diameter ( mm ) | 550--600 | 550--600 | 550--600 |
| Precision ( mm ) | ± 0.10 | ± 0.10 | ± 0.10 |
| Power | 220V 50HZ | 380V 50HZ | 380V 50HZ |
company machine process as below :
