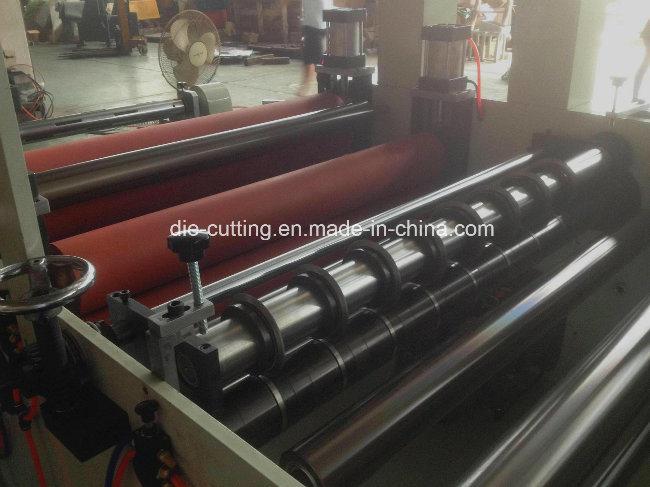

1000mm Roll to Roll Film/Paper Hot Laminating Machine
1000mm Roll to Roll Hot Laminating Machine
DP-1000 roll to roll lamination machine
Main features:
This series of products are made by compounding fluid paper, plastic film, woven cloth or aluminum foil into double layer, three layer or multi-layer new materials, which are used for packaging products of cement, chemicals, forage, food, medicine, adhesive tape cloth, plastic coating paper cups and fast food boxes, etc.
Application range:
Paper-plastic complex, plastic-plastic complex, aluminum-plastic complex,
Paper-aluminum plastic complex, alf-adhesive series.
Features :
1.suits roll to roll laminating machine
2.equiped with oil built-in heating system,saving energy and consistance of temperature
3.equiped with bigger roller,laminating quicker

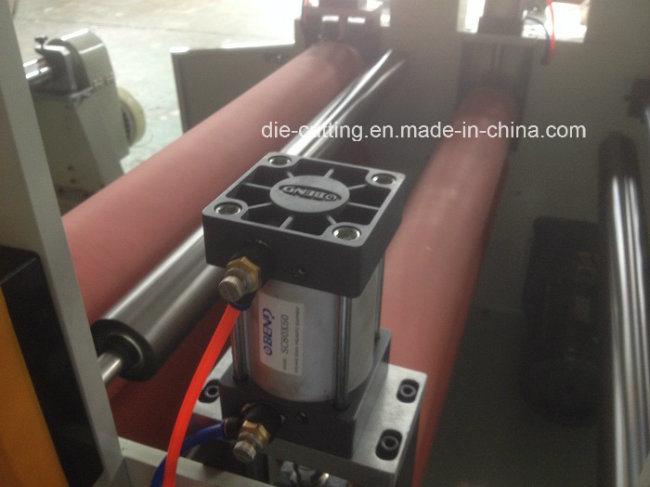

4. pneumatic pressure system with large rubber roller gurantees laminating quality
5.the air expansion shaft with dividing rule makes operation of feeding paper,collecting paper and loading and uploading of film easier.
6.Equipment with 2 more rubber roller for coooling device
7: large hot laminating roller , Heating Roller diameter 200mm
8 slitting part after laminating :
| Model | 1000 roll to roll laminating and slitting machine |
| Max Feeding Width ( mm ) | 1000 |
| Min slit width | 25mm |
| Main Engineer Power ( KW ) | 6 |
| Speed (T/M ) | 80 |
| Size ( mm ) | 2400*2000*1300 |
| Weight (kg) | 1200 |
| Feeding diameter ( mm ) | 600 |
| Rewinding diameter ( mm ) | 450 |
| precision ( mm ) | ±0.10 |
Heating roller , have the sensor of touch to know roller heating degree , when reach to setting max degree, it stop increasing heating degree and keep it
