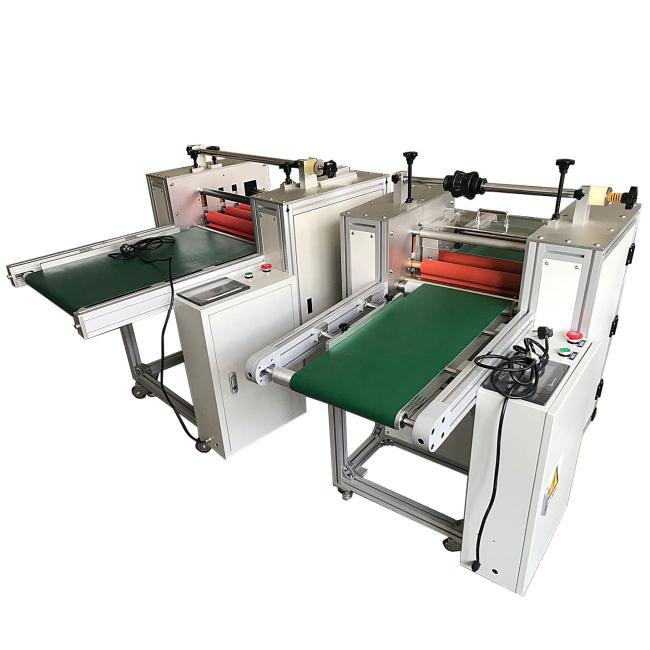

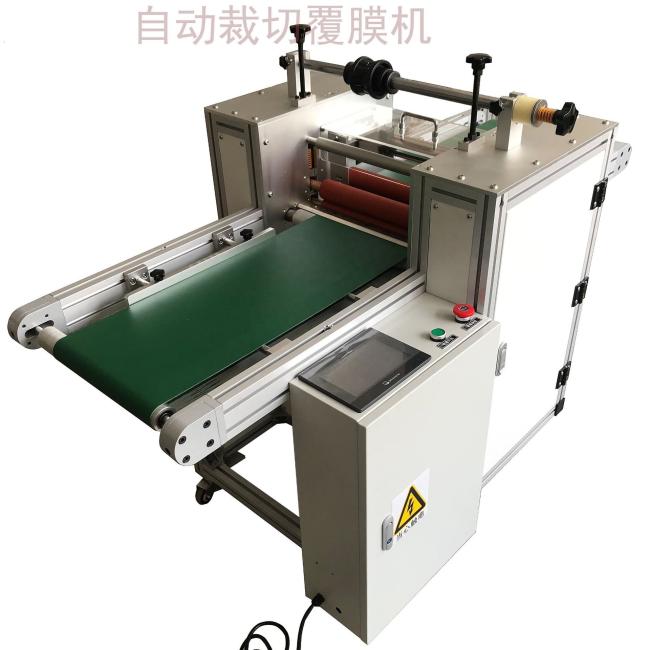

automatic cut double side adhesive tape laminating machine for Light guide plate, acrylic, glass plate, PVC plate
Price:
$6,800.00/sets 1-2 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
DAPENG
Product Description
Product Description
1. This machine adopts imported quality silicone rubber rollers, which are durable and long-lasting; 2. The body adopts white baking paint, which is scratch resistant and not easy to peel off the paint; 3. The laminated surface is a non embroidered steel surface, smooth and flat; 4. The machine is easy to operate, and the speed and pressure can be adjusted freely; 5. Can rotate from front to back; 6. Low noise operation, high sensitivity; 7. There are various ways to start, both pedal and manual;
PLC control , Touch Screen Operation

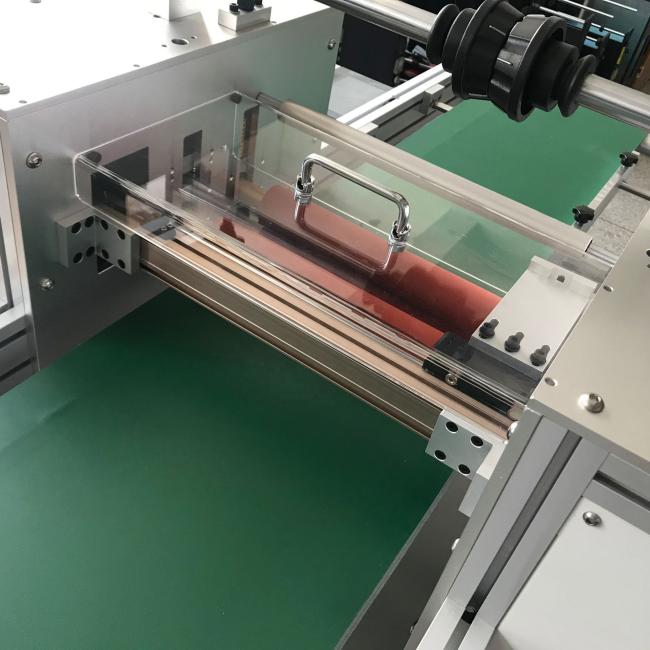

Fly knives automatic cutting to sheets after laminating
Specification
Control System | Xinjie PLC |
touch screen | WEINVIEW |
Film covered motor | stepper motor |
Cutting knife | Custom cutter blades |

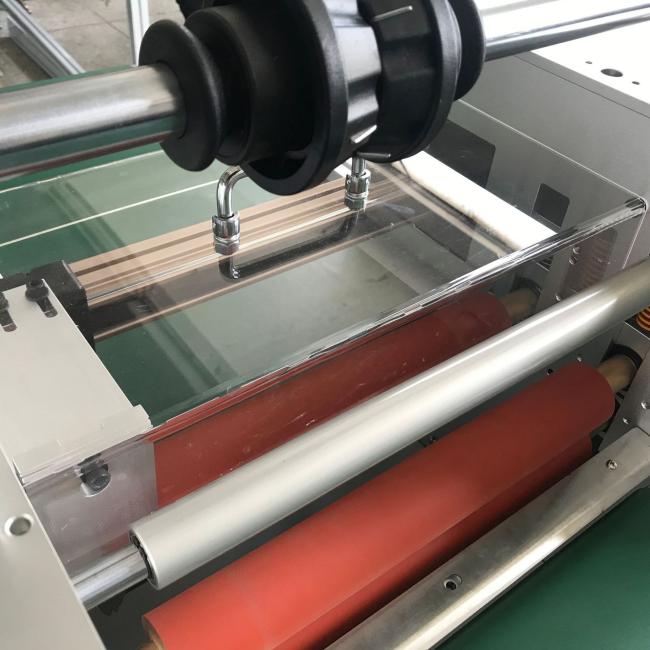

glue roll | Customized length 500mm, diameter 50mm (parameters can be customized as required) |
Film release method | Chrome-plated steel shaft hanging film (protective film tension is adjustable) mechanical spring adjustment |
Coated surface | Laminated top and bottom, cold laminating (no heating) |
Cutting device | Synchronous belt module stepper motor drive |
Pressure adjustment method | Lift and lower adjustment with screw |
Mechanical architecture | Aluminum profile |
2 . LAMINATING TECHNICAL DATA | |
Laminating speed | 0-18M/min |
Filming thickness | 0-5MM |
Cutting method | PNEUMATIC DRIVE FLY BLADE BACK AND FORTH |
Feeding table material | PVC CONVEYOR BELT |
Laminating rubber roller size | 50（ O.D） *600（ rubber covered length） |
Effective film width | 500MM |
Product positioning method | Unilateral positioning baffle guide , manually putting sheets on |
Feeding method | Manual feeding |
Way of working | The conveyor table feeds the material, the rubber roller presses the film, the cutter moves the film, and the material is discharged |
gap between two products | 2-20mm adjustable |
Cut film product single side width | 2-20mm adjustable |
working pressure | None |
Security configuration | emergency button |
3.Power | |
Main power supply | AC 220V± 10%， 50Hz,300W |
Other inner power supply | DC 24V |
4,Machine sizes | |
Appearance size (approx.) | 1450mm(L)× 1050mm(W)× 1200mm(H)（ not actually） |
Countertop length | Feeding table 600mm long Discharging table 500mm long |
Countertop height | 750mm or according to the height required by the buyer |
Body weight (approx.) | 170kg |
