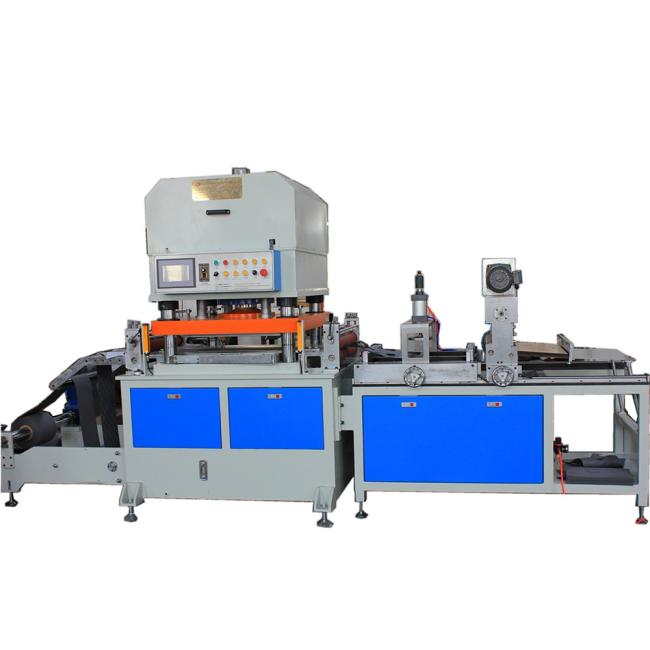

Automatic paper foam gasket hydraulic die cutting machine with punching
Price:
$41,800.00/sets >=1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Dapeng
Product Description
Product Description
Characteristic:

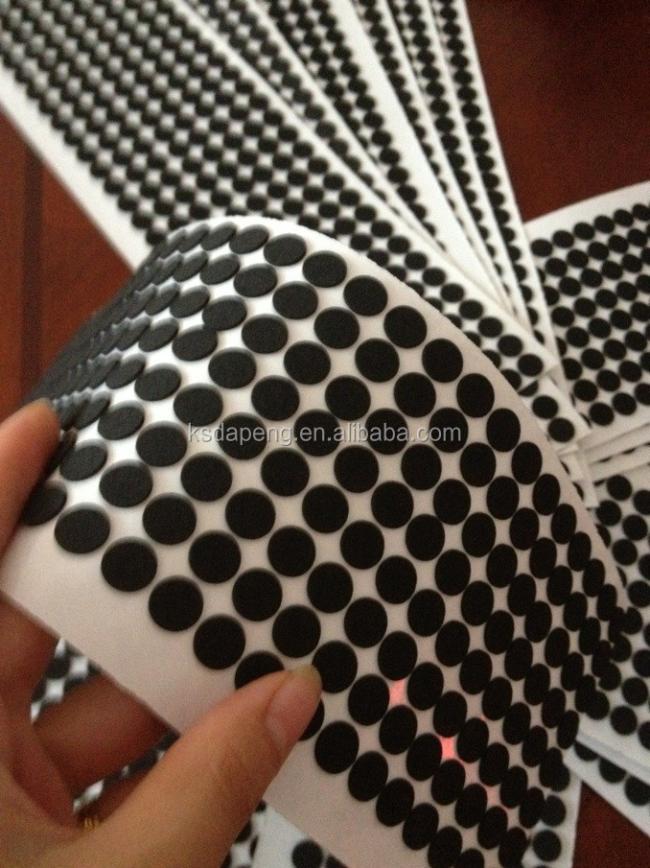

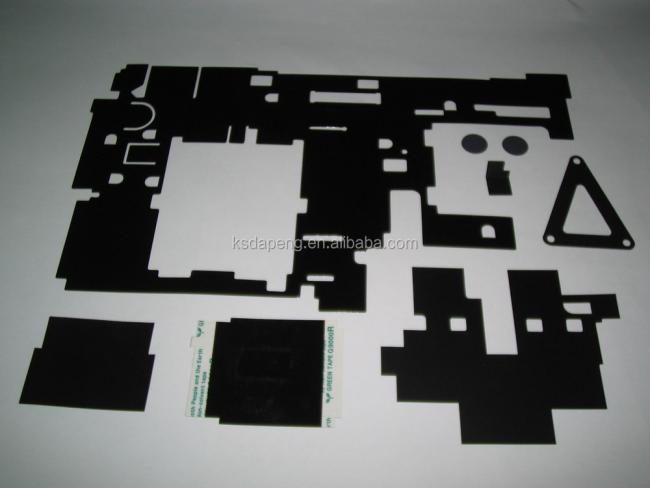

Electronic positioning,automatic adjustment, precision and accurate, and the precision and accuracy can be controlled in 0.01 to 0.03 mm, push board back and forth precision can be controlled in 0.02 to 0.05 mm. There is shockproof board installed at under-chassis , therefore , the machine body is stable and reliable. Applies to punch electronic materials such as aluminum foil ,PET, protective film , Mylar through cutting or kiss cutting, all kinds of precision components of stamping forming. PLC + man-machine automatic programming control ,oil system adopts integrated control, and there is photoelectric protection.
Details description of machine:
I , Unwinding part ---------------max width 1000mm 1, First unwind : 3 inch air-shaft,AC Motor,frequency control Second unwind,3 inch air-shaft,magnetic powder brake 2, Unwinding effective width : 1000mm,max diameter is 600mm,bear weight at 136KG 3, Touch dancer sensor for first guiding roller 4, Servo motor control the 2 pulling roller,pulling roller is rubber material and hardness must at 75--80 degree II , Main Machine ------------ Die cutting area 1000*1000mm 1, Four shaft hydraulic machine 2, Max cutting force : 40 Ton 3, Shock proof 4, With light for the die cutting part so that easy installing mould and watch the die cutting part 5, Plane die cutting area 1000mm length , 1000mm width 6, Safety Light Curtains at four corner III, Electronic PLC control 1, LCD touch screen , computer control base 2, With password for data protection 3, Can save the datas that setted 4, Low maintainance 6, All the cutting / unwinding length and number are can set in the touch screen 7, Cutting depth precision control at 0.025mm IV ,Die cutting mould installing With clamp tool and locking tool so that can put mould in directly and then locked , change mould in few time V, Mould plate package 1,With up and down cutting boards 2, Stainless steel material mould plate , polished , easy control the cutting depth , can cutting both kiss cut and through cut 3, One piece PET or PVC sample for mould protective VI , Knock down part for the holes 1, The punching area at least 1000*1000MM 2, Pneumatic control , and stroke at least 2 inch VII, Not include the punching mould VIII,Cutter 1, Effective width 1000mm 2, Motor control the cutter operation
Configuration Data:
1. Mitsubishi BRAND PLC 2. Touch Screen 3. Optoelectronic safety 4. Automatic Pressure regulating motor 5. Host Machine Motor 6. Oil Bump 7. Magnetic Valve ,cooler 8. Host Machine hydro-cylinder 9. Flatbed cylinder 10. Servo Motor
Standard functions:
* Material feeding * Die cutting * Knock-out *Cut the material in sheet
Specification
ITEM NO. | Pressure | Max feeding width | Die cutting area | Main engine power | Voltage |
DP-40 TA | 40Ton | 1000mm | 1000*1000mm | 10kw | 3 phase AC380V 50HZ |
Cutting length 1m speed | Work table height | Max open distance | Max traveling distance | Precision | Cutting type |
20 times/minute | 900mm | 0-85mm | 100mm | 0.03 | Work with mould to achieve kiss cut and die cut |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
Q1：Are you a factory or trade company?
We are a factory.
Q2: How long is the general delivery time of the machine?
30 days.
Q3: Where is your factory?
We are at Jiangsu Kunshan, which is about 30 kilometers from Shanghai.
Q4: Can you provide after-sales service overseas?
Yes, we can.
Q5: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
We are a factory.
Q2: How long is the general delivery time of the machine?
30 days.
Q3: Where is your factory?
We are at Jiangsu Kunshan, which is about 30 kilometers from Shanghai.
Q4: Can you provide after-sales service overseas?
Yes, we can.
Q5: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
