650mm Max Feeding Width PVC and OPP Laminating Slitting Machine with Lamination at 150 m/min
Price:
$7,000.00/sets >=1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
DP
Product Description
Product Description
Specification
item | value |
Showroom Location | China |
Condition | New |
Type | Slitting Rewinder |
Computerized | Yes |
Place of Origin | China |
Jiangsu | |
Brand Name | DP |
Voltage | 380V50HZ |
Dimension(L*W*H) | 2400*2000*1300MM |
Weight | 1200kg |
Warranty | 12months |
Production Capacity | 150 m/min |
Key Selling Points | High-accuracy |
Max. workable width | 650mm |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Marketing Type | Ordinary Product |
Warranty of core components | 1 Year |
Core Components | Pressure vessel, Motor, Bearing |
PLC Brand | MITSUBISHI |
Item No. | DP-650FQ |
name | pvc and opp laminating slitting machine |
Max Feeding Width ( mm ) | 650mm |
width optional | 1600mm/1300mm |
Min slitting width | 10mm or 15mm or 25mm |
Speed (M/Min. ) | 150 |
unwinding diameter ( mm ) | 1000mm |
Rewinding diameter ( mm ) | 500mm |
inner coil diameter | 3 inch or 2 inch or 1 inch |
precision ( mm ) | 0.02mm |
pvc and opp laminating slitting machine
1.Simple to operate
2.High slitting speed
3.Magnetic tension controlled
4.Available for many mater
Slitting machine,paper slitting machine,film slitting machine,Paper Cutting Machine,Slitting and Rewinding Machine
The features of the machine:
1.Full automatic with auto counting;
2.With Magnetic tension controlled;
3.With auto web-guide system to ensure the slitting precision;
4.Magic eye automatic correcting the error, inflatable shaft receiving;
5.It is of tight construction and is characterized by quickness, accurate slitting ease of operation and stable firm running.
pvc and opp laminating slitting machine Applicative materials:Adhesive paper,films,thin paperboard,adhesive tape,etc.
Features:
This machine employs photoelectric track and rectification system, and the magnetic powder clutch is adopted to control the
feeding and receiving tension. Main machine adopts frequency conversion speed regulation. The movement of the rubber covered
roller is controlled by the cylinder. Sticking and slitting be done at one time , sticking or slitting can be done separately.
Accurate slitting, fast speed, easy to operate and maintenance .
Purpose:
1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil,
aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
1.Simple to operate
2.High slitting speed
3.Magnetic tension controlled
4.Available for many mater
Slitting machine,paper slitting machine,film slitting machine,Paper Cutting Machine,Slitting and Rewinding Machine
The features of the machine:
1.Full automatic with auto counting;
2.With Magnetic tension controlled;
3.With auto web-guide system to ensure the slitting precision;
4.Magic eye automatic correcting the error, inflatable shaft receiving;
5.It is of tight construction and is characterized by quickness, accurate slitting ease of operation and stable firm running.
pvc and opp laminating slitting machine Applicative materials:Adhesive paper,films,thin paperboard,adhesive tape,etc.
Features:
This machine employs photoelectric track and rectification system, and the magnetic powder clutch is adopted to control the
feeding and receiving tension. Main machine adopts frequency conversion speed regulation. The movement of the rubber covered
roller is controlled by the cylinder. Sticking and slitting be done at one time , sticking or slitting can be done separately.
Accurate slitting, fast speed, easy to operate and maintenance .
Purpose:
1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil,
aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
Main Technical Parameter:
data as below is for reference only , you can customize to other data if required
Model | DP-650FQ |
Max Feeding Width | 650mm |
Main Engineer Power | 2.2kw |
Speed | 80m/min |
Size | 2400x1700x1300mm |
Weight | 1000kg |
Rewinding Diameter | 600mm |
Winding Diameter | 450mm |
Precision | ±0.1mm |
Power | 220V 50HZ |

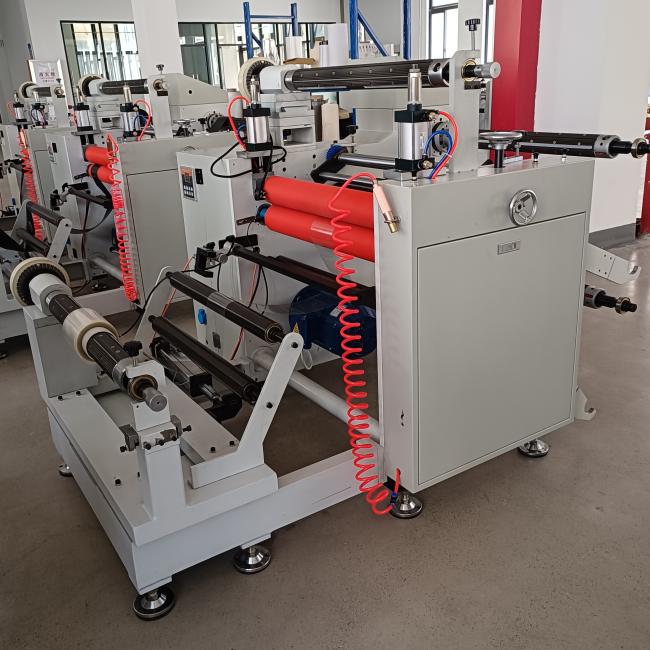

DIFFERENT ANGLE OF MACHINE
BELOW to show you our standard machine different angle view
Charatertistics and Functions
1.This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding and
receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension.
receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension.
3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification
control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain
control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain
Purpose for Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery :
1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil,
aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Features for
Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery
1. The max width: 650mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 80m/min
6. Under CE and ISO
7. Manufacturer experience: 12 years
8. Export experience:10years
1. The max width: 650mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 80m/min
6. Under CE and ISO
7. Manufacturer experience: 12 years
8. Export experience:10years
Export Package:Wooden Case
Export Markets:Global
Additional Info.
Trademark:DAPENG
Packing:Wooden Case
Standard:650mm
Origin:Kunshan, China
HS Code:84411000
Product Description
DP-650FQ Automatic Multi-function Laminating and Slitting Machine PU Foam/ EVA Foam Slitting Rewinding Machine
Features:
1. The max width: 650mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 80m/min
6. Under CE and ISO
7. Manufacturer experience: 30years
8. Export experience: 10years
Charatertistics and Functions:
1. This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding and
receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension. 3. Imported gas sensitive device is adopted to detect the
rectification of rolling, with fully automatic hydraulic rectification control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain
Purpose:
1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil,
aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
After-service:
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines.
Model 650FQ PU Foam/ EVA Foam Slitting Rewinding Machine
Max Feeding Width 650mm
please inquiry to fill in like below question :
slitting machine ,650FQ PU Foam/ EVA Foam Slitting Rewinding Machine we can customize for you
kindly fill in this sheet and inquiry us , thank you !
Materials to be slitting : | |
Max Feeding Width | |
Speed Required | |
material size Size | |
Material Weight | |
Rewinding Diameter | |
Winding Diameter | |
Precision Required | |
Voltage required |
