the PLC we use is Mitsubishi brand
with tension control board
with frequency control
High Speed Self-adhesive Trademarks PVC Protective Film Slitting Rewinder PE Thermal Tape Sticker Labels Roll Slitter Rewinder
Price:
$19,000.00/sets 1-9 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
DAPENG
Product Description

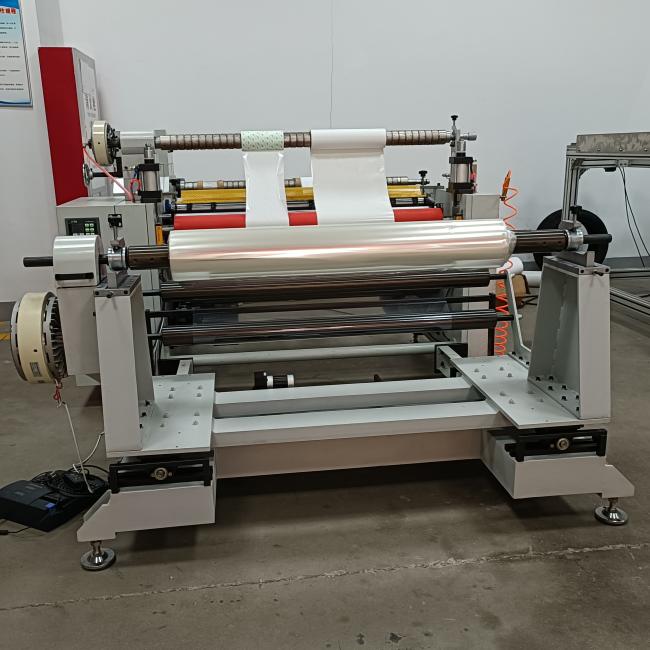

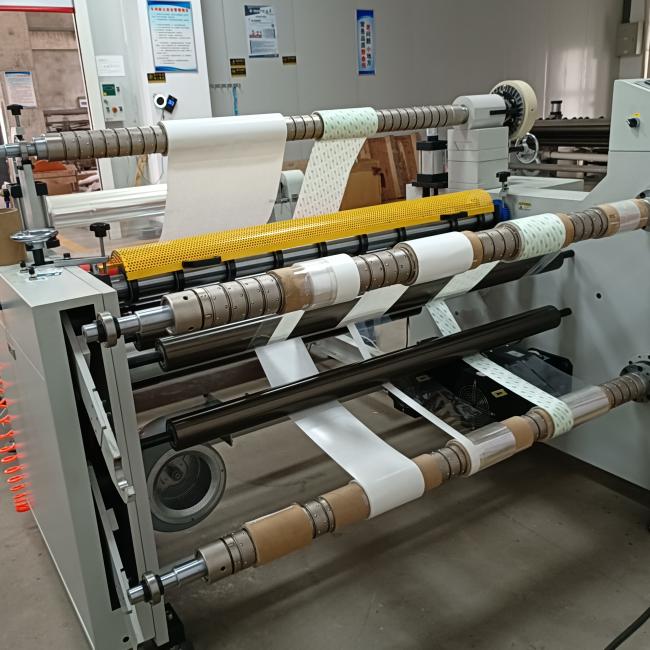

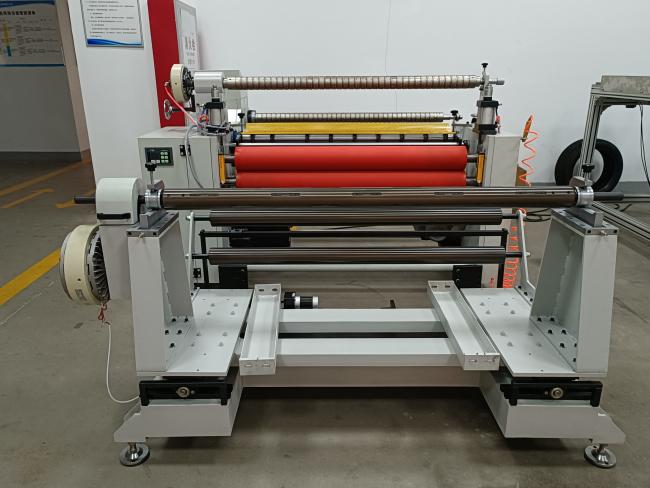

High Speed Self-adhesive Trademarks PVC Protective Film Slitting Machine OP PE Thermal Tape Sticker Labels Roll Slitter Rewinder
Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery
Functional characteristics:
This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding and
receiving materials. Imported magnetic powder clutch is adopted to control the tension. Imported gas sensive device is adopted to
detect the rectification of rolling, with fully automatic hydraulic rectification control. Automatic detection, rectification and
metering can be realized. It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc.
There are two selection ofr main engine, single electric motor, double electric motors.
Purpose:
It is applicable for the slitting tooling of industrial adhesive tape, cellphone tape, protective film, copper foil, aluminum
foil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in the industries such as printing, packing, electronics,
leather, clothes making, plastic, etc.
Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery
Functional characteristics:
This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding and
receiving materials. Imported magnetic powder clutch is adopted to control the tension. Imported gas sensive device is adopted to
detect the rectification of rolling, with fully automatic hydraulic rectification control. Automatic detection, rectification and
metering can be realized. It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc.
There are two selection ofr main engine, single electric motor, double electric motors.
Purpose:
It is applicable for the slitting tooling of industrial adhesive tape, cellphone tape, protective film, copper foil, aluminum
foil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in the industries such as printing, packing, electronics,
leather, clothes making, plastic, etc.
Main Technical Parameter:
data as below is for reference only , you can customize to other data if required
Model | 1300 slitting machine | 1600 slitting machine |
Max Feeding Width ( mm ) | 1300 | 1600 |
Main Engineer Power ( KW ) | 6 | 6 |
Speed (T/M ) | 120 | 120 |
Size ( mm ) | 2400*2000*1300 | 2400*2300*1300 |
Weight (kg) | 1200 | 1500 |
Rewinding diameter ( mm ) | 800 | 800 |
Winding diameter ( mm ) | 450 | 450 |
precision ( mm ) | ±0.10 | ±0.10 |
Power | 380V 50HZ | 380V 50HZ |
electric box of slitting machine
the slitting machine can choose PLC control

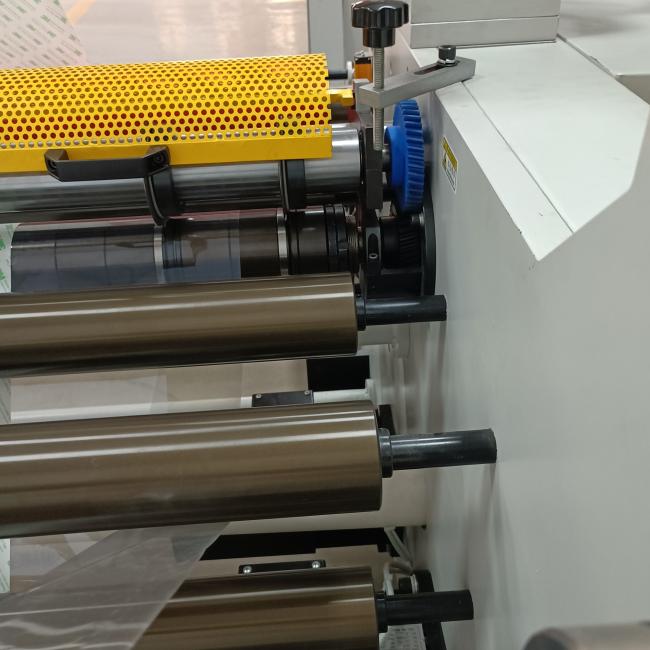

cutting blade part have protective cover
to keep operation safety , when you setted well the cutting blade , please cover the protective cover
Charatertistics and Functions
1.This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding and
receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension.
receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension.
3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification
control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain
control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintain
Purpose for Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery :
1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil,
aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Features for
Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery
1. The max width: 650mm / 1300mm / 1600mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 80m/min
6. Under CE and ISO
7. Manufacturer experience: 12 years
8. Export experience:10years
1. The max width: 650mm / 1300mm / 1600mm
2. The minimum slitting width: 8-25mm
3. Material thickness range: 0.05-3mm
4. Tolerence: 0.2mm, Precision: 0.1mm
5. The speed: 80m/min
6. Under CE and ISO
7. Manufacturer experience: 12 years
8. Export experience:10years
Unwinding part description
3 inch air-shaft for unwinding - can optional of 6 inch unwinding shaft too

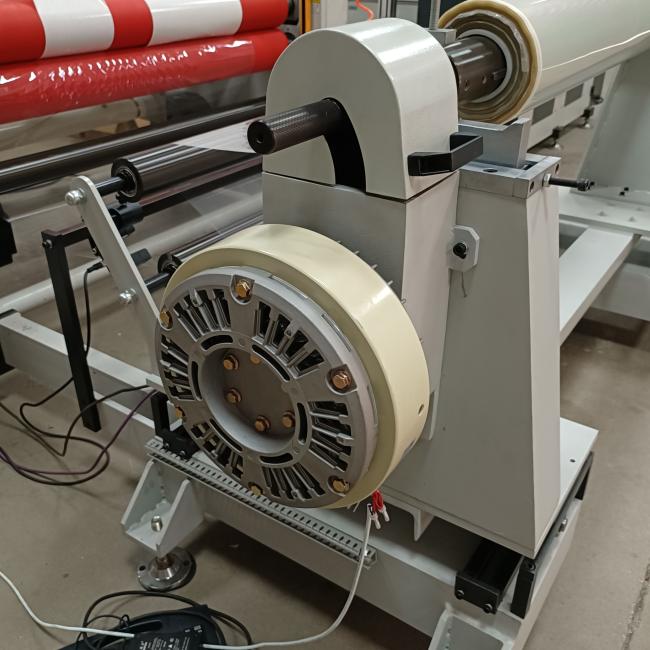

Magnetic powder brake 100N also can be 150 or 200 that as required

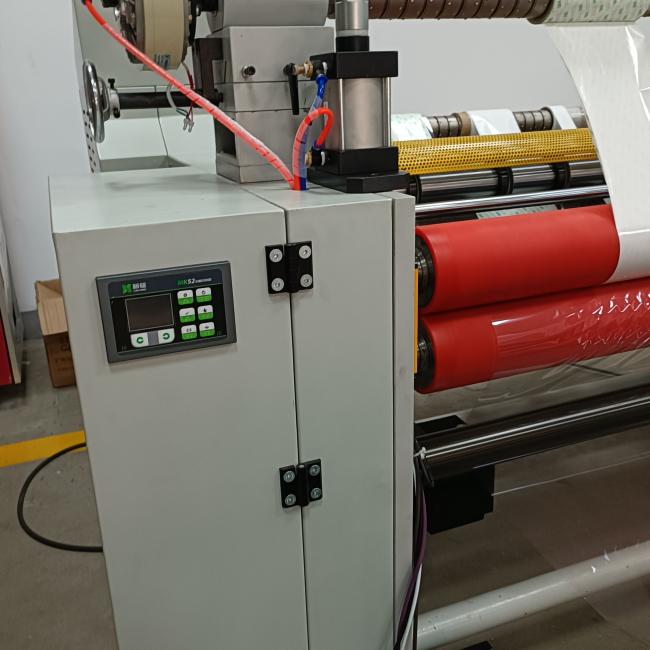

EPC include the controller , driver and sensor

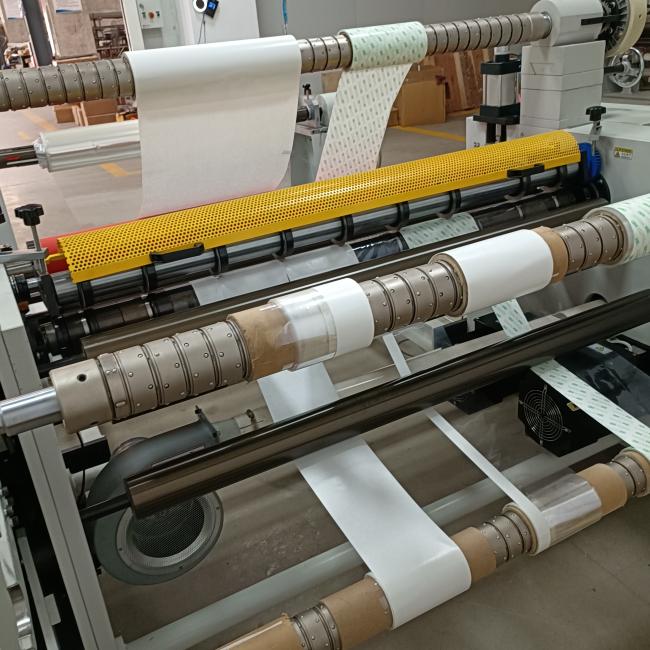

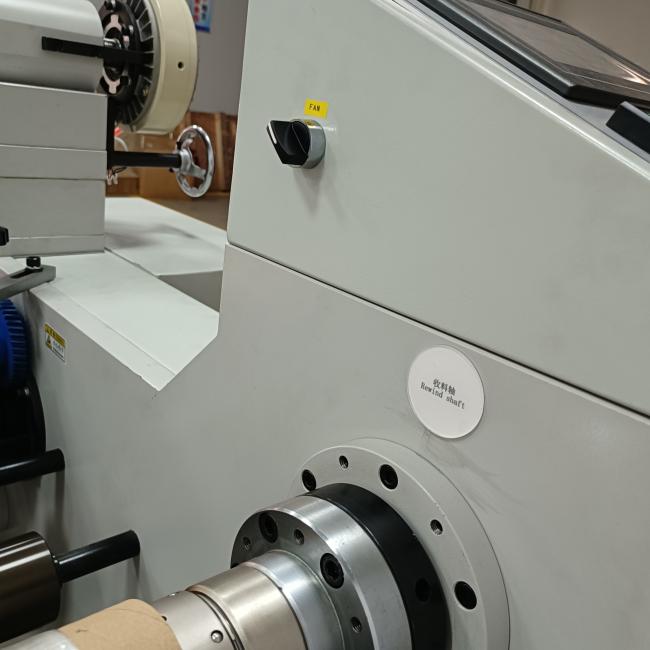

Rewinding part
2pcs differential ring inflatable rewinding air shaft , magnetic powder clutch 50 N control the rewinding tension

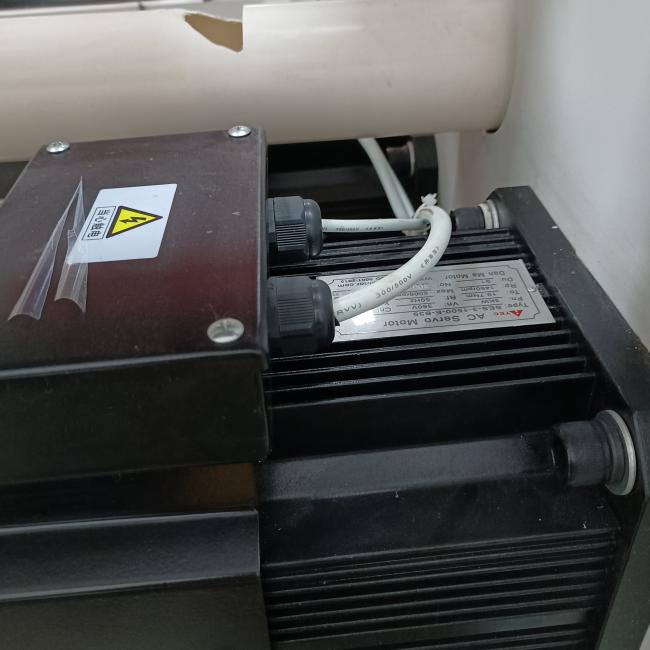

double main motor
2 pneumatic arms to hold the rewinding shaft
t

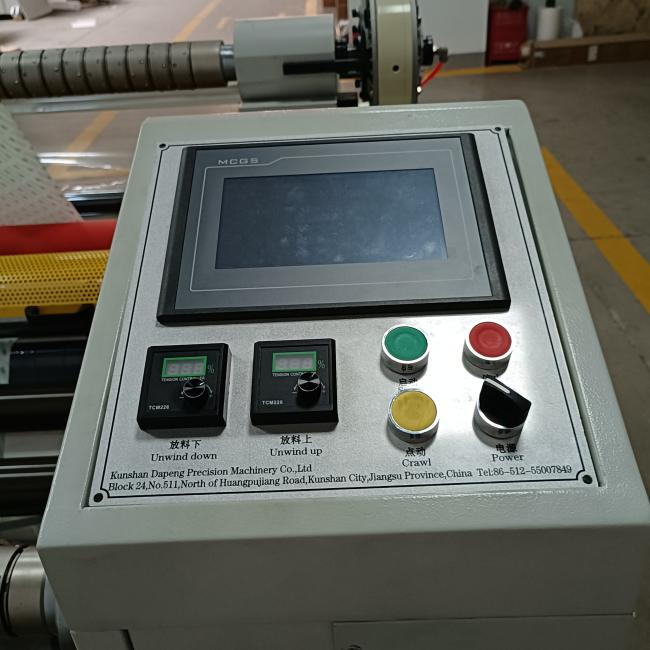

operation board

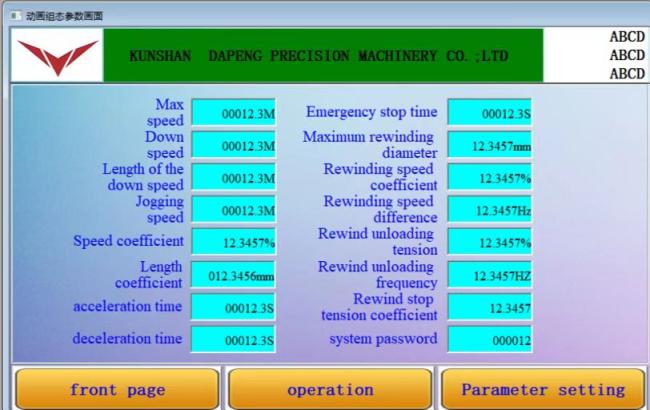

Touch screen operation
High Speed Self-adhesive Trademarks PVC Protective Film Slitting Machine OP PE Thermal Tape Sticker Labels Roll Slitter Rewinder
High Speed Self-adhesive Trademarks PVC Protective Film Slitting Machine OP PE Thermal Tape Sticker Labels Roll Slitter Rewinder
Speed, length are can be set , tension is automatic control in the touch screen
