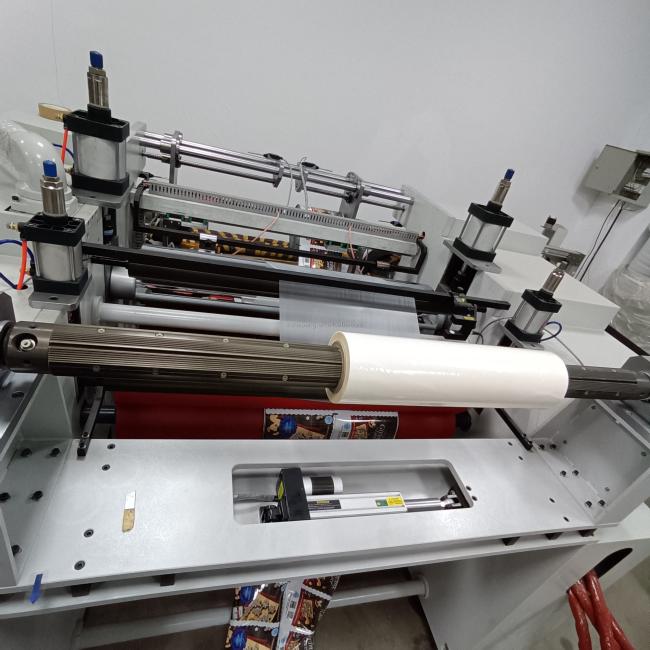

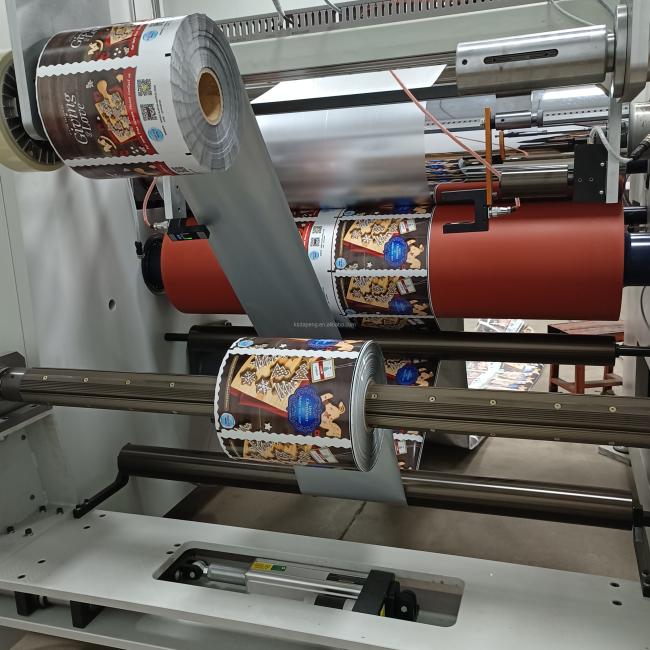

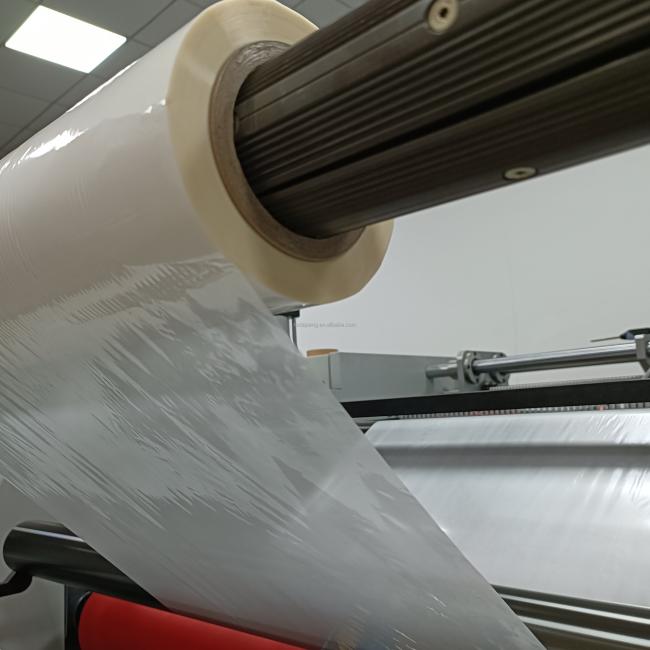

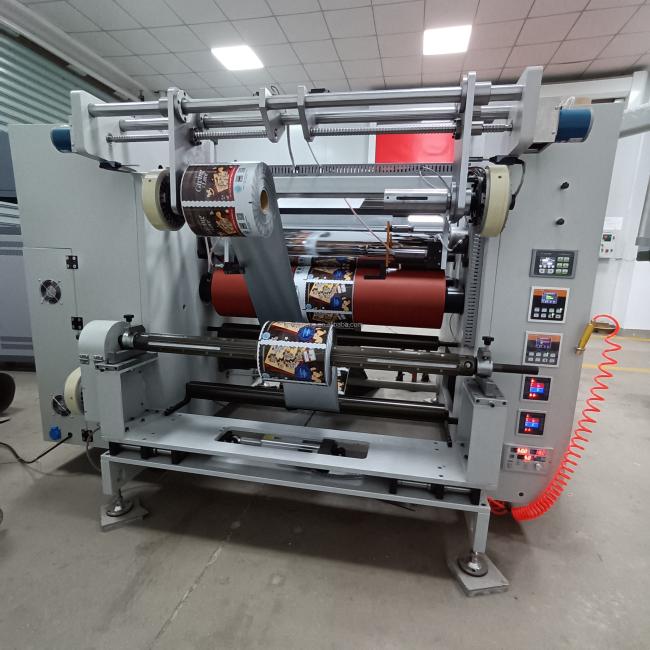

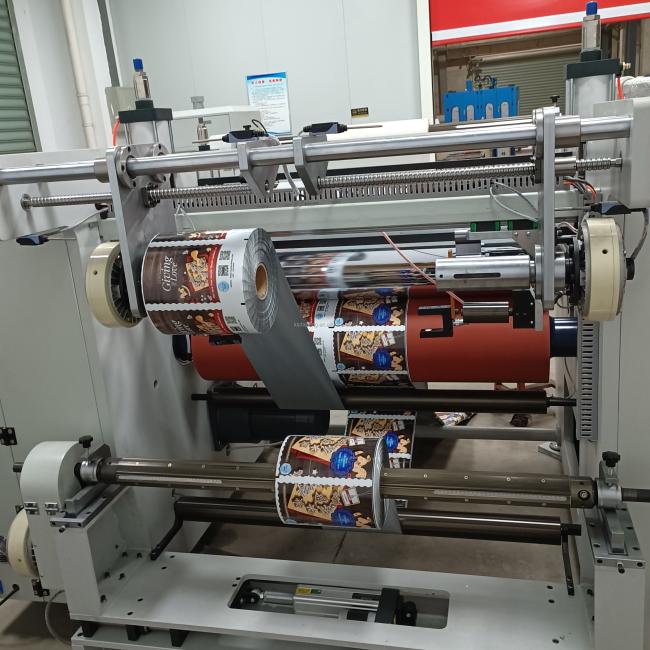

Automatic Foil Carbon Film Heating Film Copper Strip Hot Melt Laminating Machine
2.3" inflatable unwind and rewind shaft.
3.Magnetic powder control the tension.
5.Rectification system to make the feeding material in line on unwind and rewind part.
7.Control panel control the degree the tension the meter and the speed.
Main technical parameters:
| Model | DP-1200 |
| Max feeding width | 1200 |
| Laminating speed | 1- 20m/min |
| Max. unwinding diameter | 60m/min |
| Unwinding diameter | 450mm |
| Rewinding diameter | 600mm |
| Precision | ±0.10mm |
| Power | 11kw |
| Voltage | 380V 50HZ |
1, technical parameters
Machine speed: 5-30m/min (adjustable)
Maximum width of raw materials: 1200mm
FIRST UNWINDING diameter: 500mm
SECOND UNWINDING diameter: 500mm
Copper strip diameter: 400mm
Rewinding diameter: 600mm
Voltage: 380V 50HZ
Total power: 10kw
Raw material roll paper core diameter : 3 inch
Compressed air source: (0.4-0.6) Mpa (customer-owned)
2, UNWINDING device
Up and down UNWINDING air expansion shaft (3′′ tile type air expansion shaft) : 2 sets
Copper strip UNWINDING shaft plus magnetic powder brake : 2 sets
Copper strip automatic RECTIFICATION correction system: 2 sets
Magnetic powder brake 50N (Shengda) : 4 sets
UNWINDING constant tension control system : 4 sets
Servo RECTIFICATION SYSTEM (Shenzhen Yupeng Technology) Ultrasonic Sensor : 3 sets
Ball screw (Taiwan HIWIN ) : 2 pieces
3, unwinding material laminating department
Warming iron roller Ø400 (chrome plated mirror surface) 50-60H : 1 piece
Lower heating laminating roller Ø400 (imported silica gel) : 2 pieces
Main motor: 2.2KW (Taiwan Dongli) : 1 set
Main motor inverter: Mitsubishi 1 set
Aluminum guide roller (surface hard oxygen treatment) 11 sets
Pulling up and down rubber pressure roller Ø200 (imported silica gel) : 2 pieces
Pressing roller pneumatic up and down system adjustable : 2 sets
Electronic meter counter (Shanghai) : 1 set
Film unwind tension adjustment system : 1 set
4, the coil Rewinding department
REWINDING air shaft (3′′ tile type air expansion shaft) : 1 set
Main motor: 2.2KW (Taiwan Dongli): 1 set
Main motor inverter: Mitsubishi : 1 set
Electromagnetic clutch : 1 set
Servo RECTIFICATION Correction (Shenzhen YUpeng Technology) Ultrasonic Sensor 1 set
5, heating department
DOWN PARY Glue roller (Ø300) : electromagnetic heating (0-100 degrees) 1SET
UP PART IRON ROLLER (Ø300) : Electromagnetic heating (0-180 degrees) 1SET
Infrared temperature controller : 2 sets
6, electronic control panel 1 set
7. Introduction to the main functions of this machine
Frequency control, easier operation and more precise control.
The rewinding magnetic powder tension is independently controlled and can be rewinding at the same time or used alone.
The electronic meter has an automatic meter setting length and automatic shutdown.
