Die Cut Foam Sponge Roll Die Cutting Machine High Grade and 45 Times per Minute Speed
Die cut foam sponge roll die cutting machine
Descriptions:
This machine is suitable for die cutting rubber,foam,plastic,paper board,aluminum foil,cooper foil,PET,protective film,
mylar,gaskets,silicon tape and so on,through die cut or kiss die cut.
Controlled by PLC,with touching screen,to adjust working pressure,stroke,feeding speed easier,faster and more precise.
Auto-balance structure of double-cylinder,four-column and self-balance connecting rod,makes sure equal pressure in any working area.
Roll to roll or to sheet die cutting,the conveyor belt is optional,waste rewind optional,safety cover and electric eye for safety guard.
Main Technical Parameters:
| Model | Pressure(Tons) | Max feeding width(mm) | Die cutting area(mm) | Main engine power(HP) | Voltage |
| DP-650 | 40 | 650 | 650*600 | 7.5 | 380/50HZ |
| DP-850 | 50 | 850 | 850*600 | 10 | 380/50HZ |
| DP-1000 | 80 | 1000 | 1000*800 | 15 | 380/50HZ |

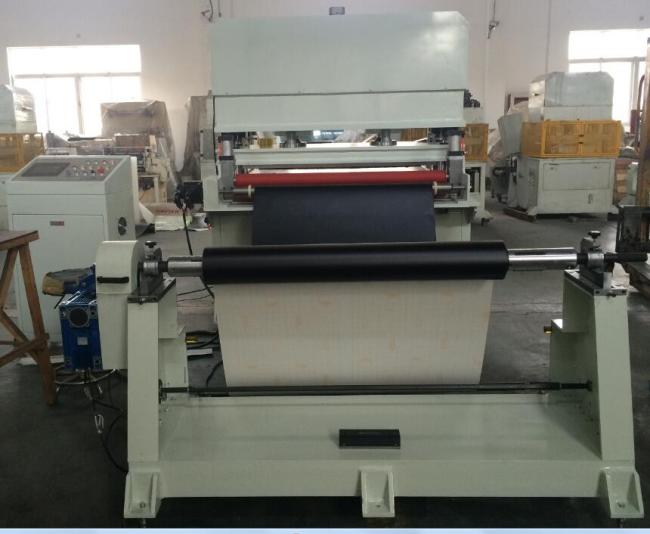

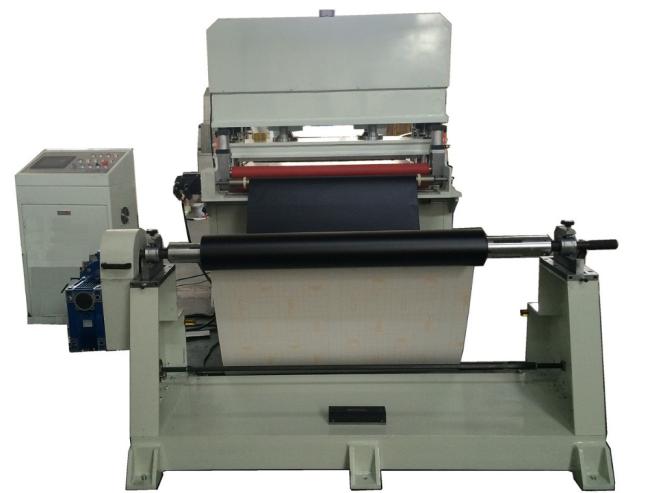

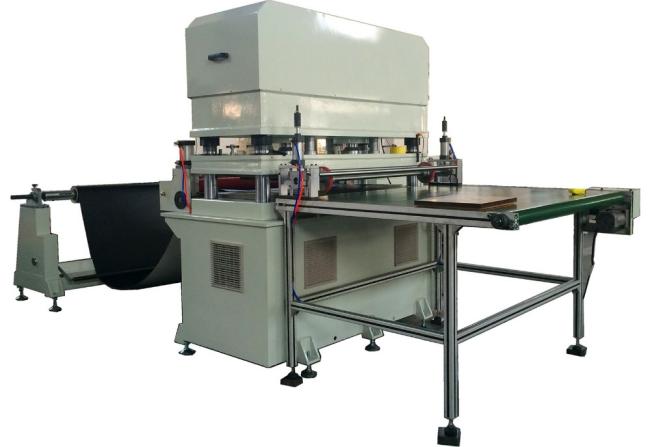

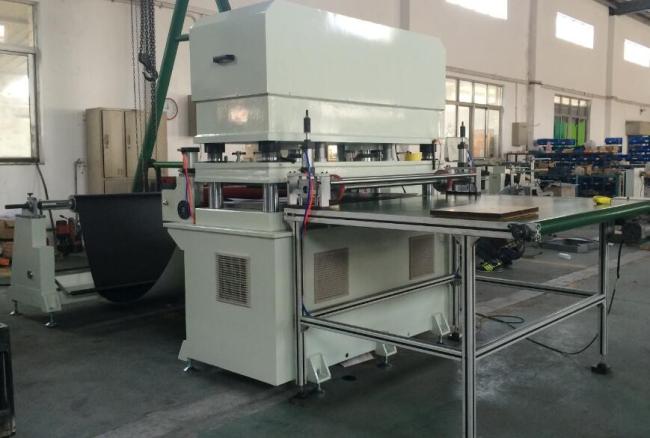

Product Pictures:
