DAPENG PE Film Slitter Rewinder Automatic Round Knife Cutting Machinery
PE film slitter rewinder
Functional characteristice:
1.This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding and receiving materials.
2. Imported magnetic powder clutch is adopted to control the tension.
3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification control.
4. Automatic detection, rectification and metering can be realized.
5. It is characterized be accurate slitting, fast slitting speed, easy of operation and maintain
Scope Applicable:
1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
Main technical parameters:
| Model | DP-650 PE film slitter rewinder | DP-1300 PE film slitter rewinder | DP-1600 PE film slitter rewinder |
| Max Feeding Width ( mm ) | 650 | 1300 | 1600 |
| Main Engineer Power ( KW ) | 3KW | 3KW | 3KW |
| Speed (m/min ) | 60 | 60 | 60 |
| Size ( mm ) | 1400*1200*1300 | 1650*1450*1300 | 1650*1450*1300 |
| Weight (kg) | 800 | 1500 | 1800 |
| Feeding diameter ( mm ) | 600 | 600 | 800 |
| Rewinding diameter ( mm ) | 450 | 450 | 450 |
| Precision ( mm ) | ± 0.10 | ± 0.10 | ± 0.10 |
| Power | 220V 50HZ | 380V 50HZ | 380V 50HZ |

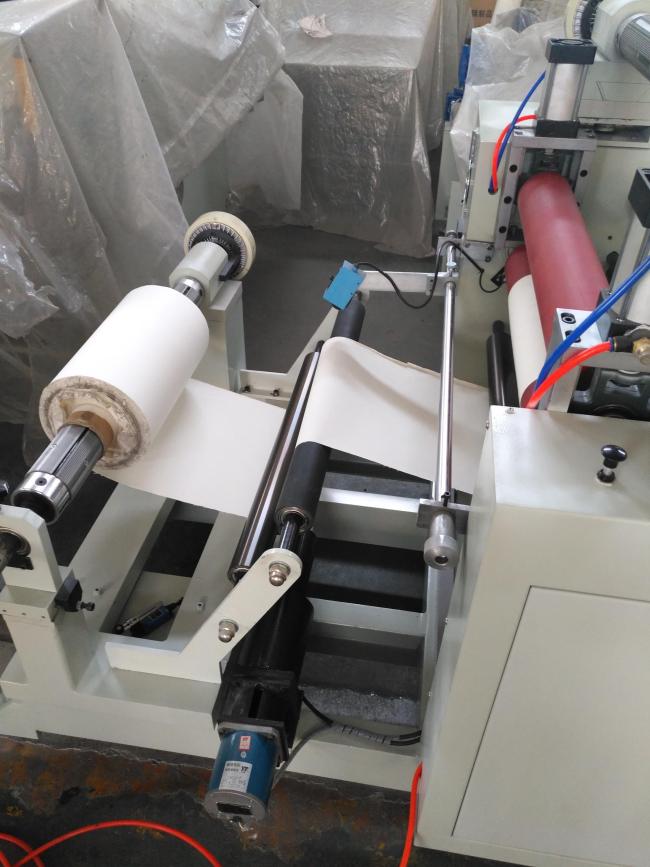

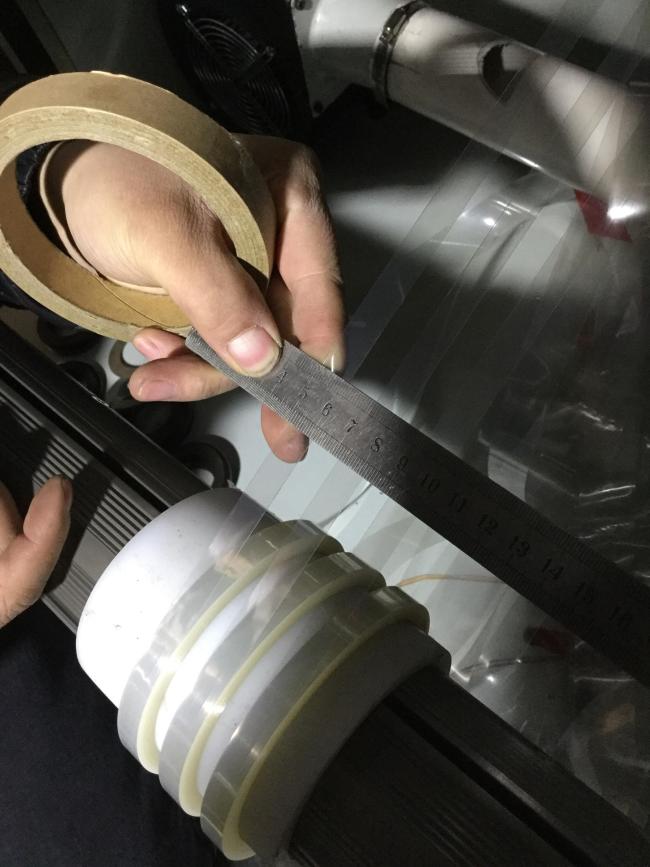

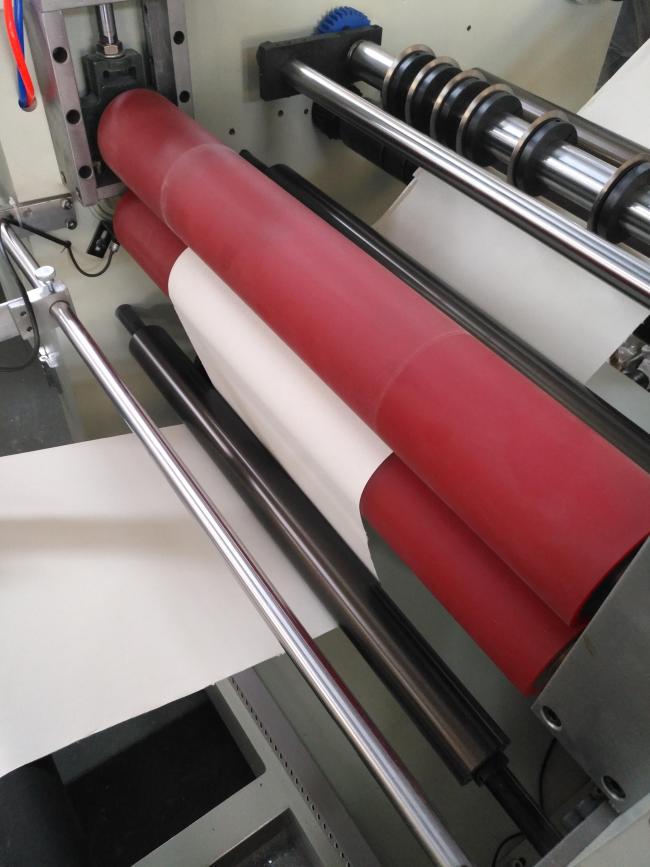

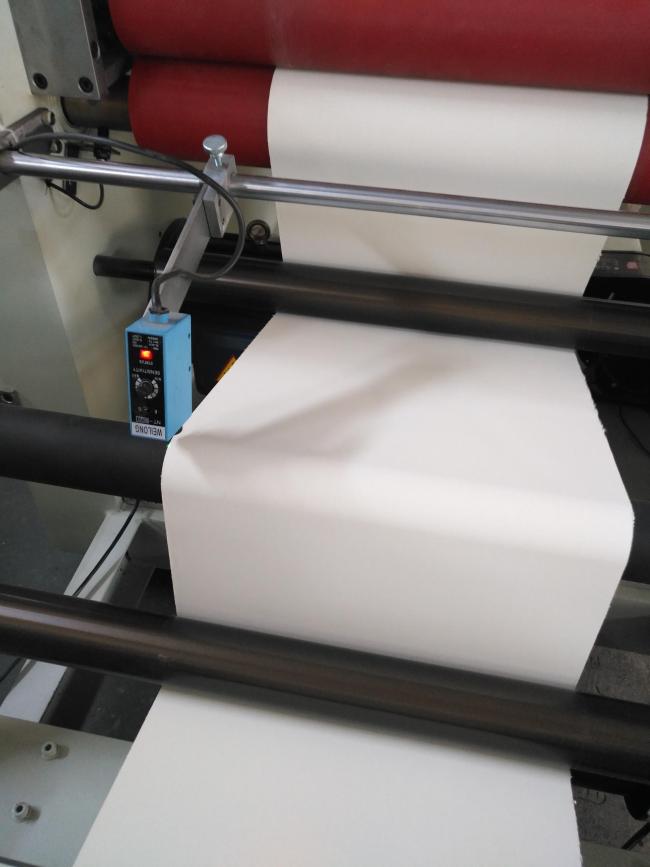

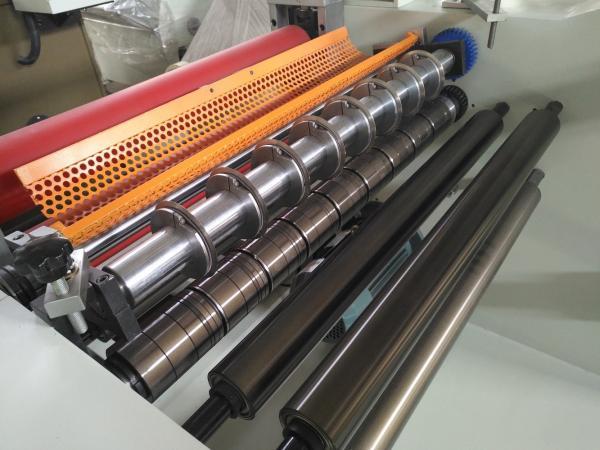

Product Picture:
