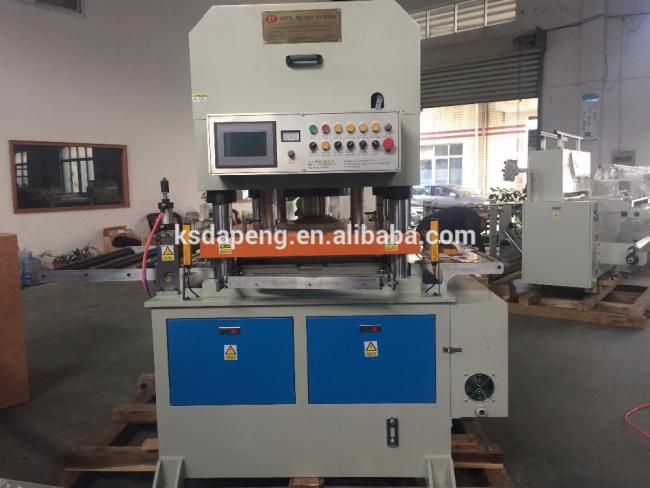

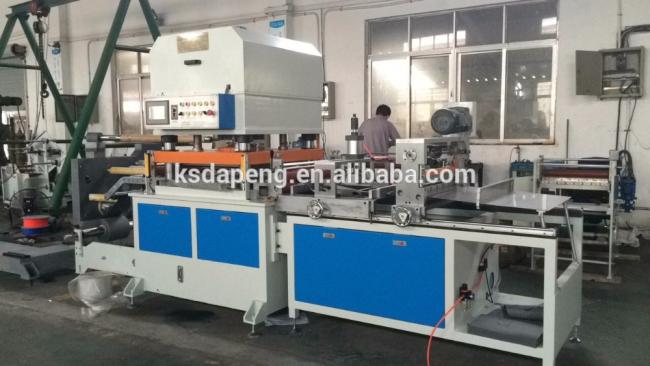

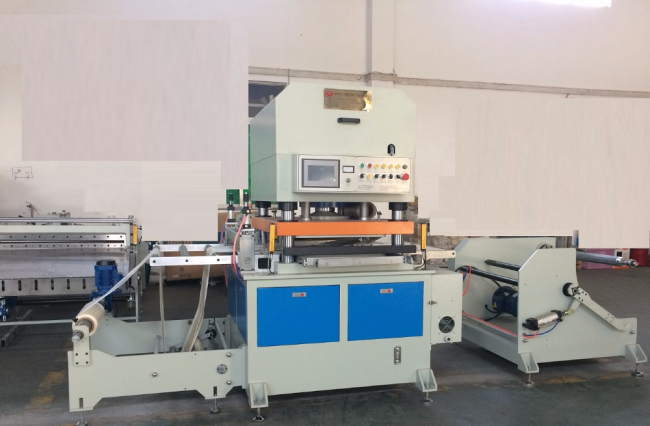

30 pcs/Min CE Certified Vinyl Sticker Die Cutting Machine 1930mm*2960mm*1795mm
Product Detail
| Max Feeding Width | 450mm |
| Cutting Area | 450X450mm |
| video link | http://v.youku.com/v_show/id_XOTMwOTczMDQ4.html |
| precision | 0.03mm |
| cutting force | 40 Ton |
| Product Keywords | Vinly Sticker Die Cutting Machine,Sponge Foam Die Cutting Machine,Seal Cap Liner Die Cutting Machine |
Quality assurance:
1. Mitsubishi BRAND PLC
2. Touch Screen
3. Optoelectronic safety
4. Automatic Pressure regulating motor
5. Host Machine Motor
6. Oil Bump
7. Magnetic Valve ,cooler
8. Host Machine hydro-cylinder
9. Flatbed cylinder
10. Servo Motor
| ITEM NO. | Pressure | Max feeding width | Die cutting area | Main engine power | Voltage | cutting speed |
| Ton | mm | mm | HP | V | times/minute | |
| DP-40 TA | 40 | 450 | 450*450 | 5.5 | 3 phase AC380V 50HZ | 30 |
| work table height | max open distance | max traveling distance | precision | packing size | weight | cutting type |
| mm | mm | mm | mm | cm | KG | work with mould to achieve kiss cut die cut |
| 800 | 100 | 100 | 0.03 | X | 3500 | |
| function : | Used for die cutting genuine leather,microfiber , PE/ PVC/PP etc plastic film , paper , foam, EVA sponge , non woven etc kiss cutting | |||||
WITH UP PUNCHING PLATE have clamping tool that install the cutting mould easily /
The oil pressure system uses advanced, durable special circuit and electric control system of high stability, up to Super level of effectiveness.
Electronic positioning, precision and control in 0.02mm, inferred from round precision control at 0. 05mm.
Machine feet install the SHIM, body solid and reliable.
Longer tool life, processing objects can be broken and half broken, cut smooth without edges.
PLC man-machine automatic program control oil system with integrated control, opto-electronic protection.
| Details description of machine : | |||||||

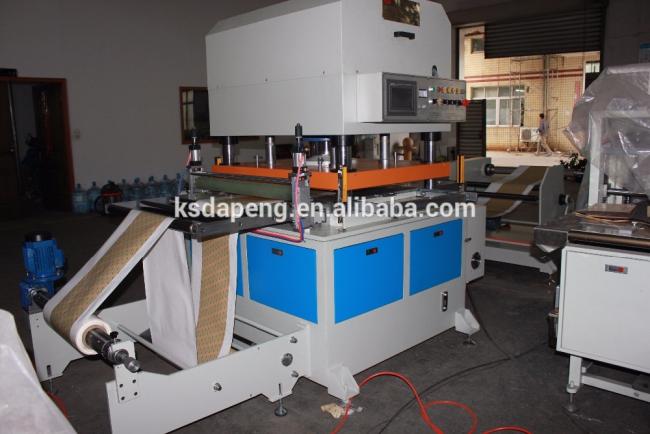

| I , unwinding part ---------------max width 450mm | |||||||
| 1, unwind : 3 inch air-shaft , AC Motor , frequency control | |||||||
| 2, unwinding effective width : 450mm , max diameter is 500mm | |||||||
| 3, touch sensor sense have material or not | |||||||

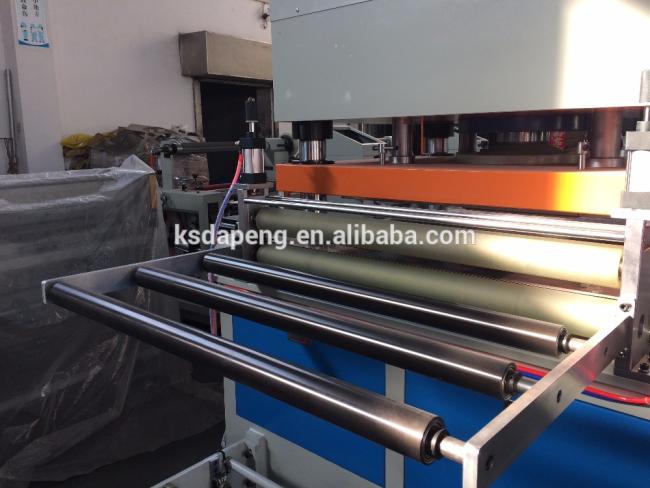

| 4, Servo motor control the pulling roller , | |||||||
| pulling roller is rubber material , opening height is adjustable at least 24mm | |||||||
| II , Main Machine ------------ Die cutting area 450mm*450mm | |||||||
| 1, Four shaft hydraulic machine | |||||||
| 2, max cutting force : 40 Ton | |||||||
| 3, shock proof | |||||||
| 4, with light for the die cutting part so that easy installing mould and watch the die cutting part | |||||||
| 5, plane die cutting area 450mm length , 450mm width | |||||||
| 6, Safety Light Curtains at four corner . | |||||||
| III, electronic PLC control | |||||||
| 1, LCD touch screen , computer control base | |||||||
| 2, with password for data protection | |||||||
| 3, can save the datas that setted | |||||||
| 4, low maintainance | |||||||
| 5, all the parts are under CE safety standard , electronic parts have CE mark | |||||||
| 6, all the cutting / unwinding length and number are can set in the touch screen | |||||||
| 7, cutting depth precision control at 0.025mm | |||||||
| 8, stroke is controlled in 50--101.6mm | |||||||
| IV ,die cutting mould installing | |||||||
| with clamp tool and locking tool so that can put mould in directly and then locked , change mould in few time | |||||||
| V, mould plate package | |||||||
| 1,with up and down cutting boards | |||||||
| 2, stainless steel material mould plate , polished , easy control the cutting depth , can cutting both kiss cut and through cut | |||||||
| 3, one piece PET or PVC sample for mould protective | |||||||
| VI, scrap/ waste Rewinding | |||||||
| 1, three inch airshaft rewinding width AC motor control | |||||||
| 2, max rewinding diameter is 500mm, | |||||||
| 3, bearing weight at 22KGS | |||||||
| 4, effective width 450mm | |||||||
| 5, with dancer for the tension control | |||||||
| VII , slitter 1, with one slit knife installed before rewinding | |||||||
| VIII , Rewinder -----------up and down 2 air-shaft for rewind | |||||||
| 1, with max roll diameter 450mm | |||||||
| 2, Rewinding shaft is 3 inch airshaft | |||||||
| 3, AC motor , speed can increase or descrease , with switch if forward/ reverse | |||||||
| 4, effective width have to can rewinding the slitting to 2 part material | |||||||
