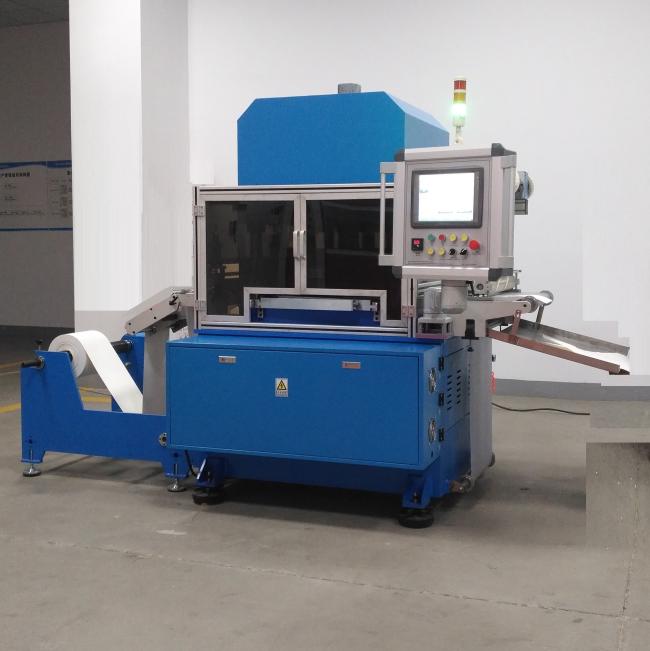

max working area 650x600mm automatic die cutting and creasing machine
Price:
$40,000.00/sets 1-9 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
DP
Product Description
Product Description
First , Machine main technical data | ||
A. max die cutting speed 30 cuts/minute B. die cutting area 650*600mm(width * length ) C. unwind roll max diameter 600mm D. max paper roll diameter 600 mm E. left to right position precision : ±0.050mm F. Step Accuracy : ±0.10mm G. Total power : about 11.0kw H. Power Voltage: 3P 380V 50HZ | ||
Technical Parameters
1 Working area:650*600mm table travel:100mm (adjustable)
2 Max working pressure :40Tons table board height :1000mm
3 Precise :±0.01m/m
Configuration details
1. PLC 1Set Made in Japan Mitsubishi
2. Touch Screen 1Set Made in Taiwan
3. Photoelectric Safety 4Set Made in Taiwan
4. Automatic pressure regulating motor 2Set Made in Taiwan
5.Main Motor(5.5KW-4) 1Set Made in Taiwan Chyun Tseh
6. Oil Pump 1Set Made in Taiwan Danxin
7.Solenoid Valve ,Cooler 1batch Made in Taiwan Danxin
8. Main machine Hydro-cylinder 2 set Dapeng Machinery own
9. air cooling system 1set Made in Taiwan Danxin
10. Servo Motor 1set Made in Taiwan Delta
11. Automatic unwinding machine 1set width 320MM air shaft 400W DC Motor
12. movable cutting table 1Set Knife width 360mm
13. electronic pressure sensors 2 set Made in Beijing Hangtian
14. laminating roller 320mm 1set Dapeng Machinery own
15.unwinding roller ( with tension control ) Dapeng Machinery own
16.waste discharge roller 1set ( include waste discharge motor)
17.pulling roller 1set Servo motor transmission
* special design under cutting positioning mechanism ( import ), accuracy of 0.01mm, can do through cutting and kiss cutting,
trimming precision 0.01mm
*Precision feeding with servo motor can achieve precision of feeding.
* Security guards, safety magic eye protection device
Electronic positioning,automatic adjustment, precision and accurate, and the precision and accuracy can be controlled in 0.01 to
0.03 mm, push board back and forth precision can be controlled in 0.02 to 0.05 mm There is shockproof board installed at
under-chassis , therefore , the machine body is stable and reliable Applies to punch electronic materials such as aluminum foil
,PET, protective film , Mylar through cutting or kiss cutting, all kinds of precision components of stamping forming PLC +
man-machine automatic programming control ,oil system adopts integrated control, and there is photoelectric protection
1 Working area:650*600mm table travel:100mm (adjustable)
2 Max working pressure :40Tons table board height :1000mm
3 Precise :±0.01m/m
Configuration details
1. PLC 1Set Made in Japan Mitsubishi
2. Touch Screen 1Set Made in Taiwan
3. Photoelectric Safety 4Set Made in Taiwan
4. Automatic pressure regulating motor 2Set Made in Taiwan
5.Main Motor(5.5KW-4) 1Set Made in Taiwan Chyun Tseh
6. Oil Pump 1Set Made in Taiwan Danxin
7.Solenoid Valve ,Cooler 1batch Made in Taiwan Danxin
8. Main machine Hydro-cylinder 2 set Dapeng Machinery own
9. air cooling system 1set Made in Taiwan Danxin
10. Servo Motor 1set Made in Taiwan Delta
11. Automatic unwinding machine 1set width 320MM air shaft 400W DC Motor
12. movable cutting table 1Set Knife width 360mm
13. electronic pressure sensors 2 set Made in Beijing Hangtian
14. laminating roller 320mm 1set Dapeng Machinery own
15.unwinding roller ( with tension control ) Dapeng Machinery own
16.waste discharge roller 1set ( include waste discharge motor)
17.pulling roller 1set Servo motor transmission
* special design under cutting positioning mechanism ( import ), accuracy of 0.01mm, can do through cutting and kiss cutting,
trimming precision 0.01mm
*Precision feeding with servo motor can achieve precision of feeding.
* Security guards, safety magic eye protection device
Electronic positioning,automatic adjustment, precision and accurate, and the precision and accuracy can be controlled in 0.01 to
0.03 mm, push board back and forth precision can be controlled in 0.02 to 0.05 mm There is shockproof board installed at
under-chassis , therefore , the machine body is stable and reliable Applies to punch electronic materials such as aluminum foil
,PET, protective film , Mylar through cutting or kiss cutting, all kinds of precision components of stamping forming PLC +
man-machine automatic programming control ,oil system adopts integrated control, and there is photoelectric protection
