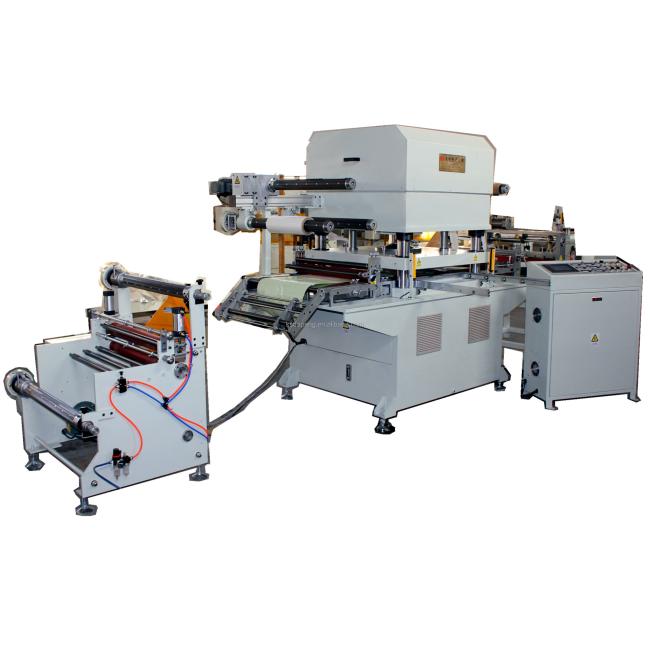

Waste Rewind Hydraulic Roll Die Cutting Machine for Nickel and Copper Foil Label
Price:
$40,000.00/sets 1-4 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
DAPENG
Product Description
Product Description
Hydraulic die cutting machine for nickel foil and copper foil label / rubber pad / filtering sponge
Functional characteristice:

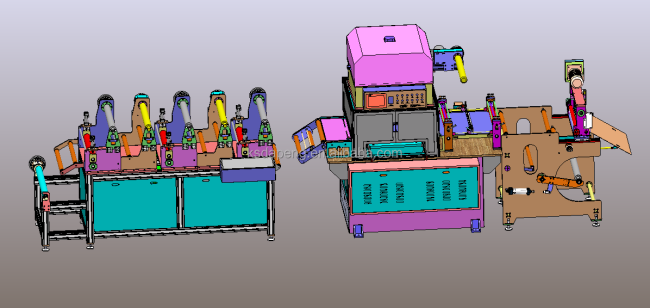

1.Automatic roll unwinding - laminating - kiss or full through die cutting - waste discharge - sheet cut or automatic rewinding.
2.Hydraulic cylinder, great power, stable performance.
3.Precise four-column automatic balancing rod design, the depth of each cutting position is consistent.
4.Automatic buffering design,multi - layer cutting when compared with the upper, lower no dimensional error.
5.Cutting and positioning mechanism, precision ±0.02mm, can be done through die cutting or kiss die cutting.
6.PLC and man - machine interface automatic programming control program, easy to operate, and can remember different cutting
program.
7.The servo motor controls the feeding system.
8.Cutting speed up to 45 times per minute.
9.Adjustable center clamping knife device can improve the efficiency of changing different size tool.
10.Optional:PET belt conveyor device, anti-static device, oil temperature cooling device.etc.
11.Waste rewinding and finished product rewinding.
12.Safety cover and safety electric eye.
Purpose:
Used for die cutting rubber,foam,plastic,paper board,aluminum foil,cooper foil,PET,protective film,mylar,gaskets,silicon tape and
so on,through die cut or kiss die cut.
Main technical parameters:
Model Pressure(Tons) Max feeding width(mm) Die cutting area(mm) Main engine power(HP) Voltage DP-650 40 650 650*600 7.5 380/50HZ
DP-850 50 850 850*600 10 380/50HZ DP-1000 80 1000 1000*800 15 380/50HZ
Configuration Data
1. PLC 1 Unit Made in Japan Mitsubishi
2. Touch Screen 1 Unit
3. Optoelectronic safety 2 sets
4. Automatic Pressure regulating motor 1 set
5. Host Machine Motor 1 set
6. Oil Bump 1 set
7. Magnetic Valve ,cooler 1 batch
8. Host Machine hydro-cylinder 2 set
9. Air-cooling system 1 set
10. Servo Motor 1 set
Functional characteristice:
1.Automatic roll unwinding - laminating - kiss or full through die cutting - waste discharge - sheet cut or automatic rewinding.
2.Hydraulic cylinder, great power, stable performance.
3.Precise four-column automatic balancing rod design, the depth of each cutting position is consistent.
4.Automatic buffering design,multi - layer cutting when compared with the upper, lower no dimensional error.
5.Cutting and positioning mechanism, precision ±0.02mm, can be done through die cutting or kiss die cutting.
6.PLC and man - machine interface automatic programming control program, easy to operate, and can remember different cutting
program.
7.The servo motor controls the feeding system.
8.Cutting speed up to 45 times per minute.
9.Adjustable center clamping knife device can improve the efficiency of changing different size tool.
10.Optional:PET belt conveyor device, anti-static device, oil temperature cooling device.etc.
11.Waste rewinding and finished product rewinding.
12.Safety cover and safety electric eye.
Purpose:
Used for die cutting rubber,foam,plastic,paper board,aluminum foil,cooper foil,PET,protective film,mylar,gaskets,silicon tape and
so on,through die cut or kiss die cut.
Main technical parameters:
Model Pressure(Tons) Max feeding width(mm) Die cutting area(mm) Main engine power(HP) Voltage DP-650 40 650 650*600 7.5 380/50HZ
DP-850 50 850 850*600 10 380/50HZ DP-1000 80 1000 1000*800 15 380/50HZ
Configuration Data
1. PLC 1 Unit Made in Japan Mitsubishi
2. Touch Screen 1 Unit
3. Optoelectronic safety 2 sets
4. Automatic Pressure regulating motor 1 set
5. Host Machine Motor 1 set
6. Oil Bump 1 set
7. Magnetic Valve ,cooler 1 batch
8. Host Machine hydro-cylinder 2 set
9. Air-cooling system 1 set
10. Servo Motor 1 set
Model | Pressure(Tons) | Max feeding width(mm) | Die cutting area(mm) | Main engine power(HP) | Voltage |
DP-650 | 40 | 650 | 650*600 | 7.5 | 380/50HZ |
DP-850 | 50 | 850 | 850*600 | 10 | 380/50HZ |
DP-1000 | 80 | 1000 | 1000*800 | 15 | 380/50HZ |
First , Machine main technical data | ||
A. max die cutting speed 30 cuts/minute B. die cutting area 650mm*600mm(width * length ) C. unwind roll max diameter 500mm D. max paper roll diameter 600 mm E. left to right position precision : ±0.50mm F. Step Accuracy : ±0.10mm G. Total power : about 6.0kw H. Power Voltage: 3P 380V 50HZ | ||
Second , machine configuration |
1 , unwinding part A. Aluminum guiding roller B. unwinding air-shaft C. unwind pulling material roller + steel roller D. unwind pulling material motor 750W E. unwind damping device F. Electric Eye ( paperless automatic stop) 2, laminating part ( optional function ) 1. filming device ( unwinding function ) A. Filming unwinding roller 2. filming device ( unwind rewind function ) A. filming unwinding roller B. filming rewinding roller C. filming rewinding motor D. Aluminum guiding roller 3. Rectification system A.Aluminum guiding roller B. rectification motor 70W C. Rectification electric eye 4. printed mark tracing part A. Paper platform B. Electric eye holder C. Color tracking electric eye 5. punching hole part ( optional part ) 1.Mechanical type punching hole A. punching hole mold B. Connection block (connect with up die cutting plate) 2. Pneumatic punching hole A. punching hole mold B. Pneumatic cylinder 6. die cutting part A.Die cutting seat assembly (can move left and right – paper unwind direction) B. Main motor 2.2KW C.automatic supply oiling system ( copper tube connect wire, semi sealing type , Lubricating oil recycling ) D.Buffer spring E. Down cutting plate seat height adjustment ( 2 Inclined plate) F. Up cutting plate seat Obliquely turn up system ( more easy to change the cutting dies) 7. Pulling material part A.pulling material roller+ steel roller B.pulling material servo motor 2.2kw(Zhejiang Dongling) C.Timing belt 8. Waste scrap part A. guiding roller B. waste scrap rewind roller C. Buffer Disposal Device - Optional function (For some thick adhesive material difficult to scrap material ) 9. sheeting blade part A.Aluminum guiding roller B. Cutter clutch assembly C. up cutting blade (inserting steel) D. down cutting blade (inserting steel) 10. Rewinding part A. Aluminum guiding roller B. rewinding cushioning device C. Rewinding pulling material rubber roller+ steel roller D. rewinding motor 800W ( when sheeting can stop) 11. Hot foil stamping part ( optional part ) 1. Stepper motor stamping device A. Hot stamping unwind roller B. Aluminum guiding roller C. hot stamping pulling material roller D. hot stamping pulling material motor ( stepper motor ) 2. Servo motor hot stamping device A. Hot stamping unwind roller B. Aluminum guiding roller C. hot stamping pulling material roller D. hot stamping pulling material motor ( servo motor 0.75KW |
