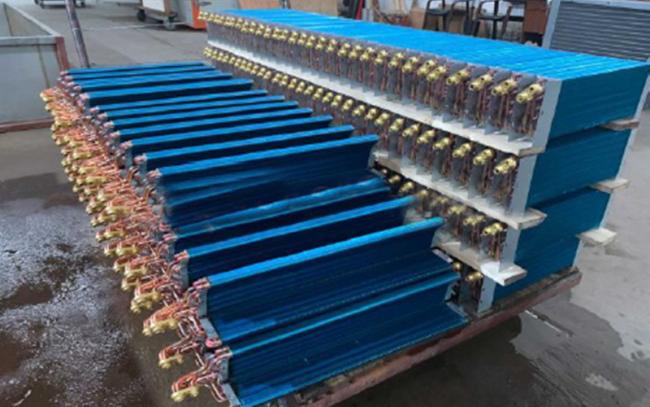

9.52mm Aluminum Fin And Tube Condenser Coil For Outside HVAC Cooling System

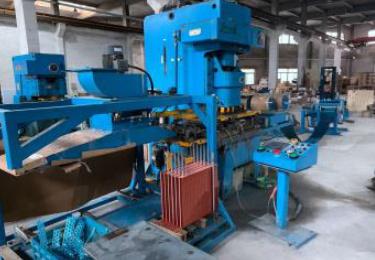

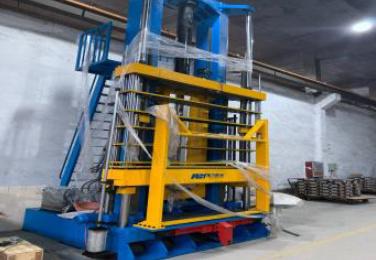

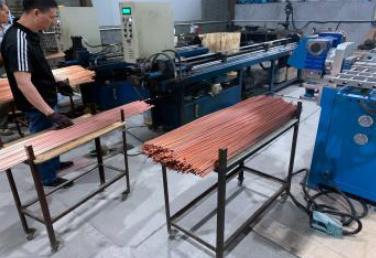

Product Description
1. Material: copper, aluminum, galvanized plate.
2. Copper pipe: diameterΦ7, Φ7.94, Φ9.52, inner grooved or smooth tube.
3. Aluminum foil: hydrophilic or bare
4. Fin type: louver fin, flat fin, corrugated fin
5. Pitch of fins: Ø7 1.1~1.8mm Ø7.94 1.4~2.0 mm Ø9.52 1.4~2.3 mm
6. Pitch of holes and pitch of rows: 20.5x12.7mm, 22x19.05mm, 21x12.7mm, 25.4x22mm equilateral triangle arrangement.
| Specifications of evaporator | ||||
| NO | Tube Diameter(mm) | Distance of hole/row(mm) | Fin Style | Fin Space(mm) |
| 1 | Φ7 | 21*12.7 | Louvered fin,Plain fin,Sine wave fin | 1.4~2.0 |
| 2 | Φ7 | 21*18.9 | Sine wave fin,Corrugated fin | 1.3~1.9 |
| 3 | Φ7 | 25*21.65 | Louvered fin | 1.5~3.8 |
| 4 | Φ9.52 | 25.4*22 | Louvered fin,Sine wave fin | 1.6~6.35 |
| 5 | Φ9.52 | 25.4*22 | Louverd fin,Plain fin,Sine wave fin | 1.6~3.2 |
| 6 | Φ9.52 | 25*19 | Louverd fin,Plain fin,Sine wave fin | 1.4~3.2 |
| 7 | Φ9.52 | 25*21.65 | Louvered fin,V ripple fin | 2.0~3.8 |
| 8 | Φ9.52 | 25*25 | Plain fin | 1.6~3.2 |
| 9 | Φ9.52 | 25*21.65 | Plain fin | 2.0~6.0 |
| 10 | Φ9.52 | 25.4*22 | Louvered fin,Plain fin,Sine wave fin | 1.6~6.35 |
| 11 | Φ9.52 | 31.75*27.5 | Louvered fin,Plain fin,Sine wave fin | 1.6~6.35 |
| 12 | Φ12.7 | 31.75*27.5 | Plain fin,Sine wave fin,V ripple fin | 1.8~6.0 |
| 13 | Φ12.7 | 31.75*27.5 | Louvered fin,Plain fin,Sine wave fin,V ripple fin | 1.7~2.2 |
| 14 | Φ12.7 | 31.75*27.5 | corrugated fin | 1.6~2.9 |
| 15 | Φ15.88 | 38.1*33 | Plain fin,Sine wave fin,V ripple fin | 2~4 |
| 1.5~4.1 | 1.5~4.2 | 1.5~4.3 | 1.5~4.4 | 1.5~4.5 |
We can serve for more types of evaporator according to every customers' drawing and requirement
| Series 1 | Series 2 | Series 3 | Series 4 | |
| Tube Diameter | Φ 9.52 | Φ9.52 | Φ7 | Φ 7.94 |
| Hole Space(mm) | 25 | 25.4 | 20.5 | 22 |
| Row Space(mm) | 21.65 | 22 | 12.7 | 19.05 |
| Tube Material | Copper, Aluminum | Copper, Aluminum | Copper, Aluminum | Copper, Aluminum |
| Type of Tube | Smooth Tube, Inner Grooved Tube |
Smooth Tube, Inner Grooved Tube |
Smooth Tube, Inner Grooved Tube |
Smooth Tube, Inner Grooved Tube |
| Fin Surface | Louver Fin, Corrugated Fin |
Flat Fin, Louver Fin, Corrugated Fin |
Flat Fin, Louver Fin |
Louver Fin |
| Fin Type | Hydrophilic Foil, Bare Foil, Copper Foil |
Hydrophilic Foil, Bare Foil, |
Hydrophilic Foil, Bare Foil, Golden Foil |
Hydrophilic Foil, Bare Foil, Golden Foil |
| Fin Thickness(mm) | 0.095~0.2 | 0.095~0.2 | 0.095~0.2 | 0.095~0.2 |
| Fin Space(mm) | 1.4~2.3 mm | 1.4~2.3 mm | 1.1~1.8mm | 1.4~2.0 mm |
Hot water coils are one of the simplest parts to an HVAC unit, but it can be important to know the parts so you know what type of connections and where they need to be located. Similar to chilled water coils, If and when a coil is to leak it usually happens in the copper u-bends. But with hot high pressured water, it will first leak at the weakest place which can be on a return bend or in the middle of the coil. When patching a leak in the middle of the coil it will significantly destroy that area causing the coil to lose a great deal of efficiency.
No matter how simple a hot water coil or reheat coil is, you still have options of what materials you should use.
