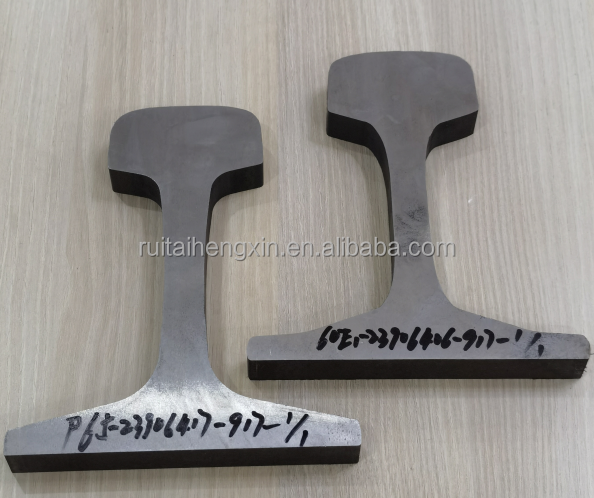

GOST R 51685 P65 Railroad Track Railway for Rail
Specification
| Standard | GOST R 51685-2000 |
| Grade/Material | M76T,K76T,M76,K76 |
| Model Number | P50,P65,P65K,P75 |
| Weight | 51.8kg/m,64.88kg/m,64.67kg/m,74.6kg/m |
| Length | 6m-25m |
| Packing | Bundling |
| Fastening | We can supply Joint bar,Rail anchor,spike&bolt,and other OEM products |
| Technique | Hot Rolled |
| Application | Railway rail |
| Train speed | 200km/h |
| Processing | Drill hole according to your requirement |
| Place of Origin | China |
| MOQ | 400tons |
| Transportation | 1.Sea port:Tianjin Xingang port,Qingdao port,Shanghai Luojing port →America,Europe,Africa,Middle East,India, Pakistan,Japan,Korea, Australia…(shipping) 2.Land port:Alataw pass port |
| Name of cross-sectional dimension | Value of demensions for different rail types | |||
| P50 | P65 | P65K | P75 | |
| Rail height | 152 | 180 | 181 | 192 |
| Web height | 83 | 105 | 105 | 104.4 |
| Head wadth | 72 | 75 | 75 | 75 |
| Foot width | 132 | 150 | 150 | 150 |
| Web thickness | 16 | 18 | 18 | 20 |
| Point height | 10.5 | 11.2 | 11.2 | 13.5 |
| Theoretical linear weight of 1m of rail | ||||
| Type | P50 | P65 | P65K | P75 |
| kg/m | 51.8 | 64.88 | 64.67 | 74.6 |
Total production quantity of steel rail has added up to over 15 million tons since the rail and beam plant founded on January 23th, 1969. Products have been widely used for railway engineering, carriage bridge and infrastructure, etc. Baotou Steel is a designated supplier of China's Ministry of Railways. More than 50 Percent of the high speed railway tracks are produced by Baotou Steel.
Baotou Steel can supply the rails used for general speed railway track at 160km/h, high speed railway track at 250km/h and 350km/h and rail profile from 37kg/m-75kg/m according to customers' requirements. At the same time, we can supply switch rail, crane rail, Z section, I-beam steel, channel steel, H-beam steel and and steel sheet pile, etc.
Inner Mongolia Rational Industry Limited(IMRI)is a supplier of anti-corrosion coating steel pipe and seamless steel pipes. We have two production lines for external anti-corrosion coating, one production line for internal coating and one production line for insulating tubes. We mainly engage in accessory processing for Baotou Steel, which is the top 3 manufacturer of seamless steel pipe in China. At the same time, IMRI is a first-class distributor of Baotou Steel’s steel products. We have established a long-term strategic co-operation relationship with Baotou Steel.
Baotou Steel's Plant Area
Baotou Steel has 5 carbon steel seamless pipe production lines and 4 steel pipe heat treatment lines. Two of the world's most advanced PQF three-roll automatic rolling production line, one MPM two-roll automatic rolling production line. It can produce various kinds of carbon steel seamless pipe, including OCTG steel casing and tubing pipe, line pipe, low/high pressure boiler tube, hydraulic pillar tube, high pressure gas cylinder steel pipe, structure pipe, fluid conveying steel pipe, fitting, axle tube, rectangular tube, and so on. It can produce carbon steel seamless pipe in outer diameter from 38 mm to 457 mm, wall thickness from 2.9 mm to 60 mm with 180 tons annual output.
WHY CHOOSE US ?
1.Competitive price: we would always try our best to meet your target price.
2.Short lead time: around 10-30 days(according the order quantity).
3.Prompt feedback: all your emails and questions would be processed immediately.
4.Quality: according to JIS G3101-2010,EN 10025-2:2004,GB/T 11263-2017,etc.
5.Flexible payment terms: TT/LC or others ( negotiate with purchaser).
6.Inspection: Third Party Inspection or customer of inspection both OK.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
