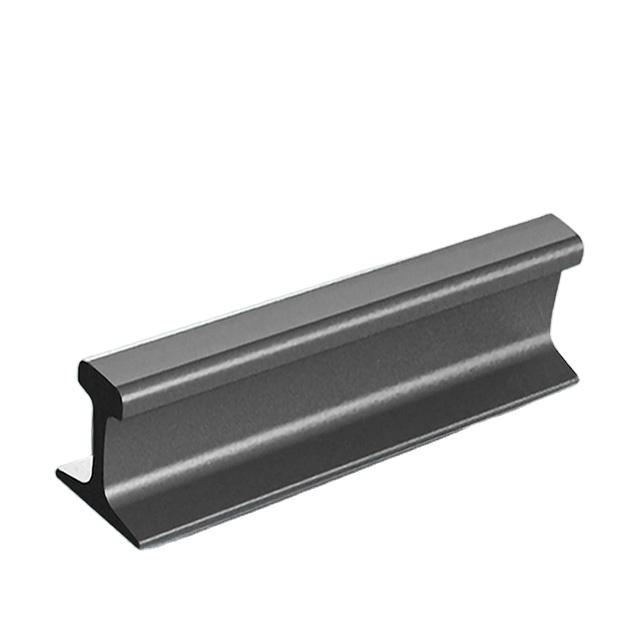

GB/T 11264 Light Rail 22kg/m China Steel Rail Q55
Price:
$600.00 - $700.00/tons
MOQ:
Negotiable
Delivery Time:
22-30 days
Brand:
Baotou Steel
Product Description
Product Description
Specification
item | value |
Standard | GB/T 11264 |
Grade | 50Q,55Q,45SiMnP,50SiMnP |
Rail Heigth | 63.50,69.85,79.37,93.66,107.95,90.00,107.00 |
Bottom Width | 63.50,69.85,79.37,93.66,107.95,80.00,92.00 |
Web Thickness | 5.90,7.54,8.33,10.72,12.30,10.00,10.90 |
Head Width | 32.10,38.10,42.86,50.80,60.33,40.00,51.00 |
Length | 6m-12m |
Place of Origin | China |
Inner Mongolia | |
Brand Name | Baotou Steel |
Model Number | 9kg/m,12kg/m,15kg/m,18kg/m,22kg/m,24kg/m,30kg/m |
Type | Light Rail |
Application | Railway Rail |
Secondary Or Not | Non-secondary |
Bolt Hole Diameter | Other |
Tolerance | ±3% |
MOQ | 5 tons |
Brand | Baotou Steel |
Material | 50Q,55Q,45SiMnP,50SiMnP |
Service | Strict Inspection |
Other name | steel rail 15 kg/m 18 kg/m 22kg/m grade Q55 Q235b steel rail |
Payment Term | T/T 30% Deposit |
Applicaiton | railway,subway,mining |
Model | Rail height (mm) | Bottom width (mm) | Head width (mm) | Head height (mm) | Waist height (mm) | Bottom height (mm) | Waist thickness (mm) | Theoretical weight (kg/m) |
9kg/m | 63.50 | 63.50 | 32.10 | 17.48 | 35.72 | 10.30 | 5.90 | 8.94 |
12kg/m | 69.85 | 69.85 | 38.10 | 19.85 | 37.70 | 12.30 | 7.54 | 12.20 |
15kg/m | 79.37 | 79.37 | 42.86 | 22.22 | 43.65 | 13.50 | 8.33 | 15.20 |
22kg/m | 93.66 | 93.66 | 50.80 | 26.99 | 50.00 | 16.67 | 10.72 | 22.30 |
30kg/m | 107.95 | 107.95 | 60.33 | 30.95 | 57.55 | 19.45 | 12.30 | 30.10 |
18kg/m | 90.00 | 80.00 | 40.00 | 32.00 | 42.30 | 15.70 | 10.00 | 18.06 |
24kg/m | 107.00 | 92.00 | 51.00 | 32.00 | 58.00 | 17.00 | 10.90 | 24.46 |
Light rail transport generally refers to the tram and railway trains that mix with road traffic.A railway transport system with less capacity than the heavy railway system (including the national railway, long-distance railway and commuter railway), also known as light railway. IMRI supplies many kinds of light rails such as 9kg/m rail,12kg/m rail,15kg/m rail,22kg/m rail, 30kg/m rail, 18kg/m rail,24kg/m rail with the steel grades of 50Q, 55Q, 45SiMnP, 50SiMnP, etc.

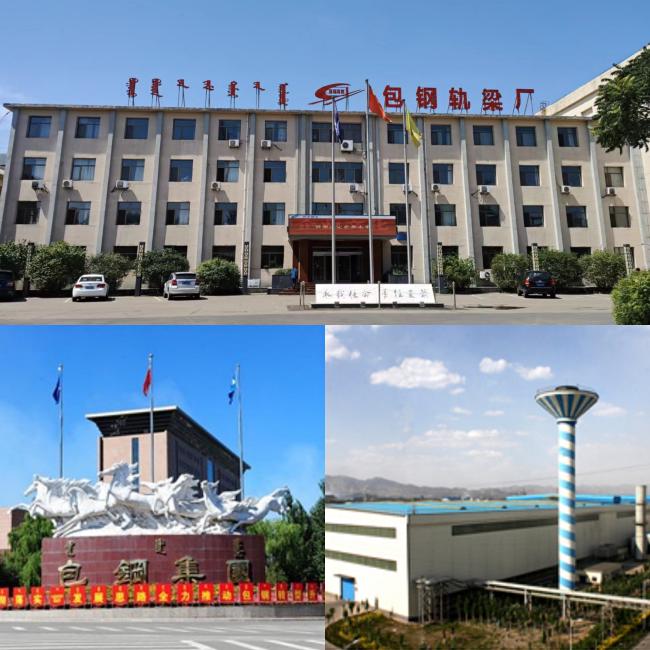

Company Profile
Baotou Steel is one of the four largest designing, scientific research and manufacturing base in China with over 40 years experience in this industry. Baotou Steel has advanced manufacturing process, technology and equipments along with perfect testing facilities. The capacity for rail is 1.4 million tones each year. Total production quantity added up to over 15 million tones since the rail and section plant founded on January 23 1969. Products have been widely used for railway engineering, carriage, bridge, and infrastructure etc. Baotou Steel can supply the rails used for general speed railway track with 160km/h, high speed railway track with 250km/h and 350km/h with profile from 37kg/m to 75kg/m according to the customer’s requirements. At the same time, the company can supply switch rail, crane rail, Z section,I beam, channel, H beam with range from 150 to 1000mm, and steel sheet pile etc.
The rails have been widely used for main lines of railway in China, including Beijing to Baotou, Baotou to Lanzhou, Beijing to Guangzhou, Beijing to Hong Kong, high speed passenger track, such as Wuhan to Guangzhou, Zhengzhou to Xian, Shanghai to Nanjing, Beijing to Shanghai, Beijing to Shijiazhuang, Shijiazhuang to Wuhan, and heavy cargo track from Datong to Qinhuangdao and high and
cold area track from Qinghai to Tibet etc. Market share for rails is about 40% in China. Baotou Steel can supply rail profile such as 45E1, 50E2, 54E1, 60E1, 60E2, R65, 100RE, 115RE, 136RE, 50N,
BS75A, BS90A, BS100A, TR45, TR50 according to UIC860, EN13674, AREMA, JIS, BS standards ect.
The rails have been widely used for main lines of railway in China, including Beijing to Baotou, Baotou to Lanzhou, Beijing to Guangzhou, Beijing to Hong Kong, high speed passenger track, such as Wuhan to Guangzhou, Zhengzhou to Xian, Shanghai to Nanjing, Beijing to Shanghai, Beijing to Shijiazhuang, Shijiazhuang to Wuhan, and heavy cargo track from Datong to Qinhuangdao and high and
cold area track from Qinghai to Tibet etc. Market share for rails is about 40% in China. Baotou Steel can supply rail profile such as 45E1, 50E2, 54E1, 60E1, 60E2, R65, 100RE, 115RE, 136RE, 50N,
BS75A, BS90A, BS100A, TR45, TR50 according to UIC860, EN13674, AREMA, JIS, BS standards ect.
Our Advantages
1.Over sixty years’ endeavor,Baotou Steel has grown to be the world’s largest rare earth industry base and domestic vital
steel industry base.
2.Baotou Steel has the largest iron ore in the northwest part of China.
3.At present, Baotou Steel’s production capacity of iron and steel products has reached to 16.5 million tons. Its products have been sold to over 60 countries abroad.
4. At the same time, it is the world’s most capable high speed rail production base with world’s best equipment.
1.Over sixty years’ endeavor,Baotou Steel has grown to be the world’s largest rare earth industry base and domestic vital
steel industry base.
2.Baotou Steel has the largest iron ore in the northwest part of China.
3.At present, Baotou Steel’s production capacity of iron and steel products has reached to 16.5 million tons. Its products have been sold to over 60 countries abroad.
4. At the same time, it is the world’s most capable high speed rail production base with world’s best equipment.
Customer Photos
Certificates
Packing & Delivery
Bundles wrapped with strong steel strips or according to customers' requests.
More Products
API 5CT Casing & Tubing
SMLS Pipe
3LPE Coated Pipe
FAQ
1. who are we?
We are based in Inner Mongolia, China, start from 2019,sell to Mid East(30.00%),Africa(27.00%),Eastern Asia(18.00%),South America(12.00%),Western Europe(8.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
seamless steel pipe,3LPE/FBE coating pipe,casing/tubing,Rail,Rare earth
4. why should you buy from us not from other suppliers?
We have more than 10 years' experience in the field of pipe-coating with our own coating factory. We have five production lines,including two PQF seamless pipe production lines which are the most advanced automatic production lines in the world.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Russian
We are based in Inner Mongolia, China, start from 2019,sell to Mid East(30.00%),Africa(27.00%),Eastern Asia(18.00%),South America(12.00%),Western Europe(8.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
seamless steel pipe,3LPE/FBE coating pipe,casing/tubing,Rail,Rare earth
4. why should you buy from us not from other suppliers?
We have more than 10 years' experience in the field of pipe-coating with our own coating factory. We have five production lines,including two PQF seamless pipe production lines which are the most advanced automatic production lines in the world.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Russian
