54E1/60E1 grade R260 railroad 54E1 steel rail for state railway train track rail
Product Description
Steel rail 54E1/60E1 grade R260 railroad steel rail54E1/60E1 grade R260 railroad 54E1 steel rail for state railway train track rail heavy railway rail
| Product Name | EN13674-1 steel rail 54E1/60E1 train rail grade 900A Baotou Steel railways rail price |
| Standard | BS, EN13674-1 |
| Grade/Material | 900A/1100/R260 |
| Model Number | UIC54/54E1 |
| Weight | 54.77kg/m |
| Length | 6m-30m |
| Packing | Bundling |
| Fastening | We can supply Joint bar,Rail anchor,spike&bolt,and other OEM products |
| Technique | Hot Rolled |
| Application | Railway rail |
| Train speed | 200km/h |
| Processing | Drill hole according to your requirement |
| Place of Origin | China |
| MOQ | 25 tons |

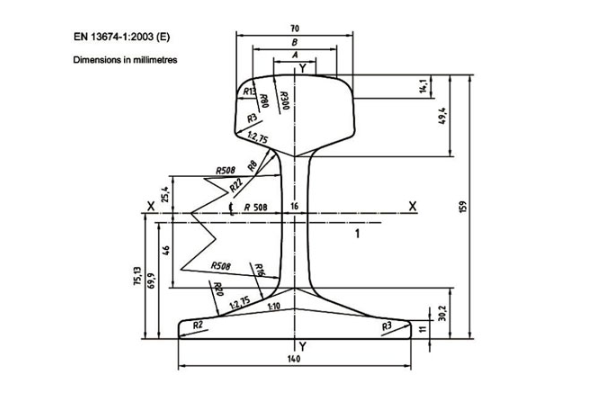

| EN13674-1 standard rail | ||||||
| Type | Diameter (mm) | Unit weight (kg/m) | Material | |||
| H.W (mm) | H (mm) | B.W (mm) | W.T (mm) | |||
| UIC54 | 70 | 159 | 140 | 16 | 54.43 | 900A/1100 |
| 5.40E+02 | 70 | 159 | 140 | 16 | 54.43 | R260 |
| 900A Chemical composition(%) | ||||
| C | Si | Mn | S | P |
| 0.6-0.8 | 0.1-0.5 | 0.8-1.3 | ≤0.04 | ≤0.04 |
| 900A Mechanical property | |||||
| Yield strength | Tensile strength | Elongation | Hardness | ||
| MPa | kg/mm² | MPa | kg/mm² | min | HB |
| 460 | 880min | 10% | 260 | ||
EN 13674-1 is the widely used standard of the world for the supply of railway rails. UIC 54/54E1 and UIC60/60E1 are the most common specifications. IMRISTEEL is the first-class distributor of Baotou Steel, whose railway rails account for more than 70% share in China. The quality is absolutely the best around the world. Welcome to contact me if you have any needs or questions.
Train Rails we can produce:
| Varieties | Specifications | Steel grade | Standard |
| Rail for Railway | 43kg/m,50kg/m | U71Mn,U75V,U76CrRE,U20Mn | TB/T2344-2012 TB/T3276-2011 |
| 60kg/m,75kg/m | |||
| UIC54/UIC60 | 900A | Agreement | |
| 54E1/60E1 | R260 | EN13674-1:2011 | |
| 115RE/136Re | SS | AREMA 2014 | |
| Switch Rail | 50AT/60AT | U71Mn,U75V,U76CrRE | TB/T2635-2004 |
| Head Hardened Rail | 50kg/m,60kg/m,75kg/m | U71Mn,U75V,U76CrRE | TB/T2344-2012 |
| UIC54/UIC60 | 900A | Agreement | |
| 54E1/60E1 | R350HT | EN13674-1:2011 | |
| Crane Rail | QU80/QU100/QU120 | U71Mn | YB/T5055-93 |
We can supply the rails used for general speed railway track with 160km/h,high speed railway track with 250km/h and 350km/h and profile from 37kg/m-75kg/m according to customers’ requirements. At the same time,we can supply switch rail,crane rail,Z section,I beam,channel,H beam and and steel sheet pile,etc.
Customer Visit
Certificates

Core members of our team have more than 10 years'' experience in the field of anti-corrosion coating production as well as anti-corrosion equipment designing. They are familiar with the purchasing requirements on anti-corrosion coating and steel pipes from international major oil companies. They also have supply experience for such companies like SONATRACH, BP, OGDCL, MRC, OXY, PDVISA, OMAN, LUK OIL, SHELL, ITOCHU, and BASF, etc.
IMRI specializes in the process of internal and external pipe-coating, including 3LPE, 3LPP, FBE, and insulating tubes, etc. Our company is a distributor of Inner Mongolia Baotou steel Union Co., Ltd. The main products are seamless pipes, gas cylinder tubes, oil casing, hydraulic pillar tubes, alloy tubes, steel plates, wire rod coils, shape steels, and rail steels, etc.
Founded in 1954, Baotou Steel is one of the steel companies who has the most complete industrial chain in China. It can produce 17 million tons of steel per year. It is a large integrated enterprise with iron ore, rare-earth ore, smelting, casting, rolling, pipe processing, testing, researching and transportation.
Baotou Steel is a seamless pipe manufacturer with the most complete varieties and specifications in China whose annual output is 1.8 million tons. There are 5 production lines for seamless pipes in Baotou Steel. Among these, 2 PQF production lines are the most advanced in the world, and 1 MPM two-roll continuous rolling automatic production line is included.
Combining its own advantage of coating technology with Baotou Steel''s advantages of products diversification, excellent quality, and low cost, IMRI can really achieve one-stop supply of anti-corrosive steel pipes.
More Products
Our service:
1.Competitive price: we would always try our best to meet your target price.
2.Short lead time: around 10-30 days(according the order quantity).
3.Prompt feedback: all your emails and questions would be processed immediately.
4.Quality: according to TB/T2344-2012,TB/T3276-2011,EN13674-1:2011,etc.
5.Flexible payment terms: TT/LC or others ( negotiate with purchaser).
6.Inspection: Third Party Inspection or customer of inspection both OK.
