seamless carbon steel pipe API 5L grade x60 PLS2
Oil and gas line pipe api 5l grade x60 psl2 12'' seamless carbon steel pipe

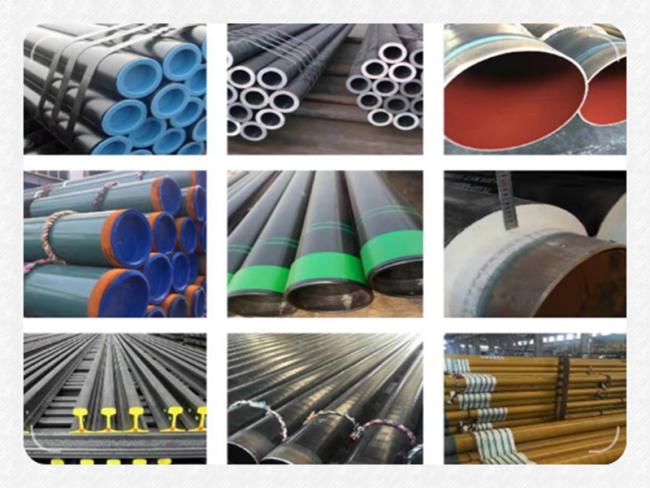

Our Main Products
Product Show
Oil and gas line pipe api 5l grade x60 psl2 12'' seamless carbon steel pipe
Product Description
| Product name | Oil and gas line pipe api 5l grade x60 psl2 12'' seamless carbon steel pipe |
| Standard | API 5L latest edition |
| Steel Grade/Material | X42,X46,X52,X56,X60,X65,X70 |
| PSL level | PSL2 |
| Outer Diameter(OD) | 1 1/2”-28”(38mm-720mm) |
| Wall Thickness(WT) | 2.6mm-60mm |
| Length | 5.8-16m or OEM |

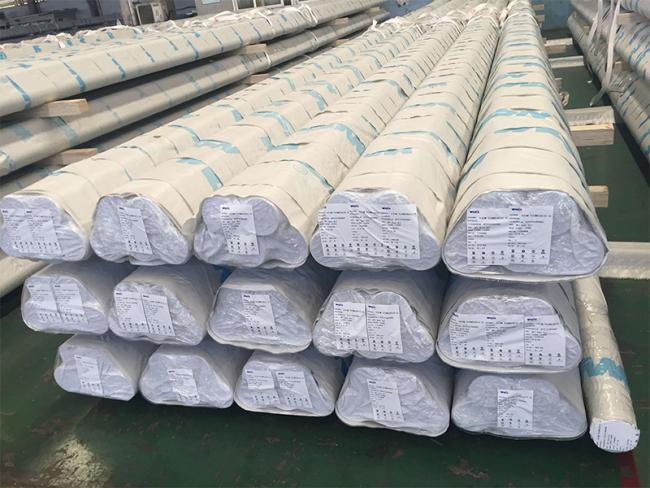

| Packing | PE,BE,Plastic cap or bundling |
| Surface Treatmengt | Black paint,3LPE,3lPP,FBE…OEM |
| Section Shape | Round |
| Technique | Seamless hot rolled |
| Application | Oil and Gas field,chemical engineering,energy engineering,water Transportation… |
| Sour service | No |
| Place of Origin | China |
| MOQ | 5 ton |
| PSL2 Pipe line Mechanical properties | ||||
| Grade | Yield strength Rt0,5 Mpa(psi) | Tensile strength Rm Mpa(psi) | Rt0,5/Rm | Elongation 50mm or 2in |
| BR/BN/BQ | 245(35500)-450(65300) | 415(60200)-655(95000) | ≤0.93 | Af |
| X42R/X42N/X42Q | 290(42100)-495(71800) | ≥415(60200) | ≤0.93 | Af |
| X46N/X46Q | 320(46400)-525(76100) | 435(63100)-655(95000) | ≤0.93 | Af |
| X52N/X52Q | 360(52200)-530(76900) | 460(66700)-760(110200) | ≤0.93 | Af |
| X56N/X56Q | 390(56600)-545(79000) | 490(71100)-760(110200) | ≤0.93 | Af |
| X60N/X60Q | 415(60200)-565(81900) | 520(75400)-760(110200) | ≤0.93 | Af |
| X65Q | 450(65300)-600(87000) | 535(77600)-760(110200) | ≤0.93 | Af |
| X70Q | 485(70300)-635(92100) | 570(82700)-760(110200) | ≤0.93 | Af |
| Tolerance of pipe size | |||
| Pipe Body (straightness) | Pipe end (straightness) | Pipe Body (roundness) | Pipe end (roundness) |
| -0.8(0.031),+0.4(0.016) | -0.8(0.031),+0.4(0.016) | 1.2(0.048) | 0.9(0.036) |
| ±0.0075D | -0.4(0.016),P5 | 0.02D | 0.015D |
| ±0.0075D | ±0.005D,Max±1.6(0.063) | 0.02D | 0.015D |
| ±0.0.01D | ±2.0 | 0.015D,Max 15(0.6) | 0.01D,Max 13(0.5) |
| Tolerance of wall thickness | |
| Wall thickness t mm(in) | Tolerance mm(in) |
| t≤4(0.157) | +0.6(0.024);-0.5(0.02) |
| 4(0.157)<t<25(0.984) | +0.15t;-0.125t |
| t≥25(0.984) | +3.7(0.146) or +0.1t,larger value; -3.0(0.12) or -0.1t,larger value |

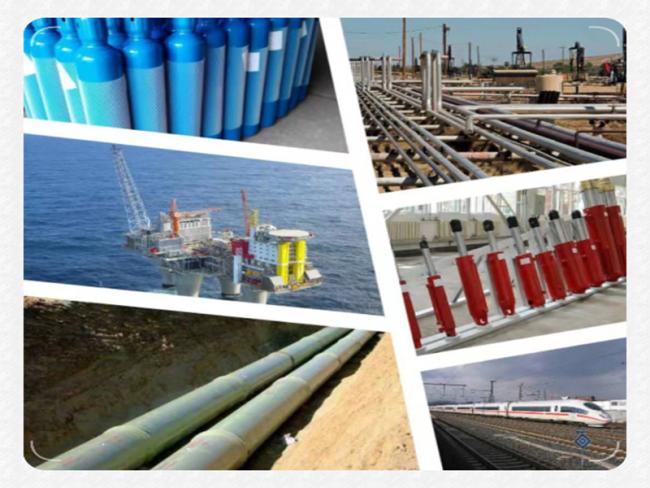

Application
The steel grades of seamless steel pipes specified in API 5L standard include X42, X46, X52, X56, X60, X65, X70, etc. According to their applications, they can be divided into onshore pipeline steel pipes and submarine pipeline steel pipes.IMRI has extensive experience in supplying steel tubes to large oil and gas projects at home and abroad and has designed different coatings for these steel pipes according to the environment in which they are used.
Quality Control

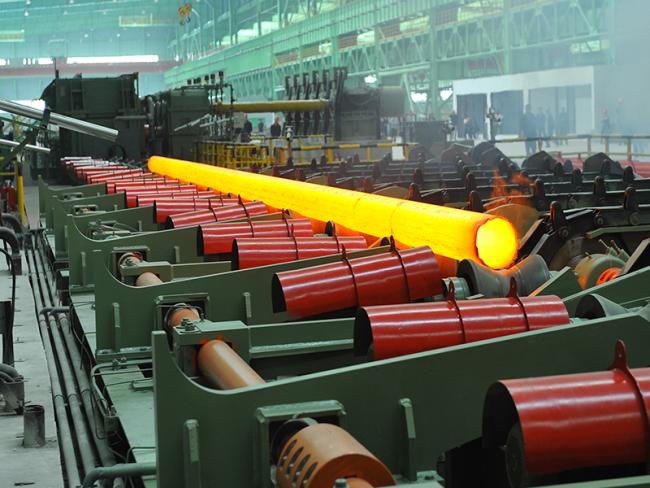

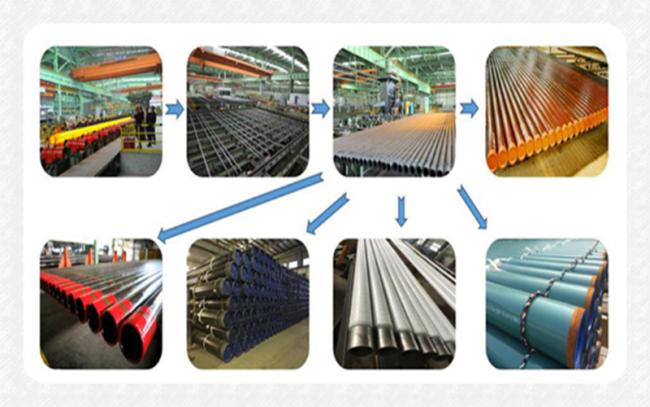

Production Process

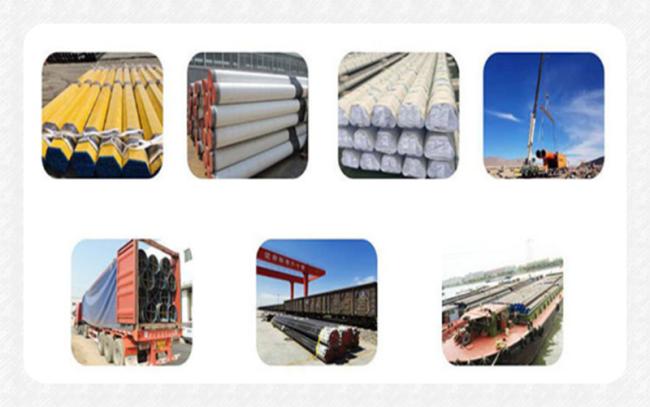

Packing & Shipping
Certificates
Contact Us
We can provide OEM service.If you need any kind of the steel pipes for water, oil and gas transportation ,petroleum casing & tubing,railway rails,etc. please feel free to contact us.
