Anti-corrosion Coating Water Supply Seamless Steel Pipes External FBE Coating and Internal TPEP
Anti-corrosion Coating Water Supply Seamless Steel Pipes External FBE Coating and Internal TPEP Coating Water Pipes
Our Main Products
Product Show
Anti-corrosion Coating Water Supply Seamless Steel Pipes External FBE Coating and Internal TPEP Coating Water Pipes
Product Description
| Product Name | Anti-corrosion Coating Water Supply Seamless Steel Pipes External FBE Coating and Internal TPEP Coating Water Pipes |
| Standard | CJ/T 120 |
| Processing ability | OD:38mm-1620mm;WT:2mm-30mm |
| Length | 6-14m |
| Packing | PE/BE,plastic cap,bundling |
| Technique | Internal and external surface on welded pipe or seamless pipe |
| Application | suitable for water supply pipeline |
| Service condition | underground |
| Place of origin | China |
| MOQ | 10 pieces |
| Properties of polyethylene powder | ||
| Item | Indicators | Inspection methods |
| Density(g/cm3) | >0.91 | GB/T 1033 |
| Tensile strength MPa | >9.8 | GB/T 1040.1 |
| Elongation at break % | >300 | GB/T 1040.1 |
| Soften the vica ℃ | >85 | GB/T 1633 |
| Nonvolatile content % | >99.5 | GB/T 2914 |
| Sanitary performance (delivery of drinking water) | Comply with GB/T17219 | |
| Properties of epoxy resin powder | ||
| Item | Indicators | Inspection methods |
| Density(g/cm3) | 1.3-1.5 | GB/T 1033 |
| Particle size distribution % | On the screen 150 μm≤3;on the screen 250 μm≤0.2 | GB/T 6554 |
| Nonvolatile content % | ≥99.5 | GB/T 6554 |
| Horizontal flow mm | 22-28 | GB/T 6554 |
| Gel time s | ≤120(200℃) | GB/T 6554 |
| Sanitary performance (delivery of drinking water) | Comply with GB/T17219 | |
| Internal and external coating thickness of coating plastic steel pipe | ||||||
| DN | Internal coating | External coating | ||||
| Polyethylene | Epoxy | Polyethylene | Epoxy | |||
| normal | strength | normal | strength | |||
| 15 | >0.4 | >0.3 | >0.5 | >0.6 | >0.3 | >0.35 |
| 20 | ||||||
| 25 | ||||||
| 32 | ||||||
| 40 | ||||||
| 50 | ||||||
| 65 | ||||||
| 80 | >0.5 | >0.35 | >0.6 | >1.0 | >0.35 | >0.4 |
| 100 | ||||||
| 125 | ||||||
| 150 | ||||||
| 200 | >0.6 | >0.8 | >1.2 | |||
| 250 | ||||||
| 300 | ||||||
| 350 | _ | >0.4 | >1.0 | >1.3 | >0.4 | >0.45 |
| 400 | ||||||
| 450 | ||||||
| 500 | ||||||
| 600 | ||||||
| 700 | ||||||
| 800 | ||||||
| 900 | >0.45 | >1.2 | >1.8 | |||
| 1000 | ||||||
| 1100 | ||||||
| 1200 | ||||||
| 1400 | >1.5 | |||||
| 1500 | ||||||
| 1600 | ||||||
| 1800 | ||||||
| 2000 | ||||||
Application

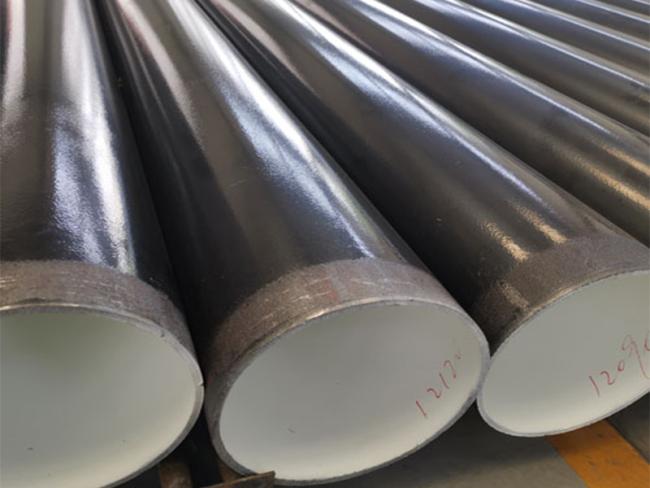

Water pipes were coated with polyethylene and epoxy powder both outside and inside on the seamless steel pipes.IMRI produces food grade water supply steel pipes with anti-corrosion coatings according to CJ/T 120.Please feel free to contact us if you need any kind of coating plastic steel pipes.
Advantages
1.After over sixty years’ endeavor,Baotou Steel has grown to be the world’s largest rare earth industry base and domestic vital steel industry base.
2.Baotou Steel has the largest iron ore in the northwest part of China.
3.At present, Baotou Steel’s production capacity of iron and steel products has reached to 16.5 million tons.
Its products have been sold to over 60 countries abroad.
4. At the same time, it is the world’s most capable high speed rail production base with world’s best equipments.
Quality Control
Production Process

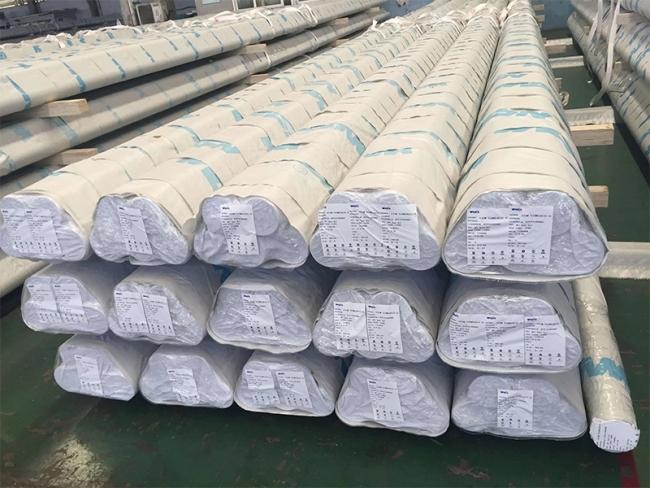

Packing & Shipping
Certificates
Contact Us
We can provide OEM service.If you need any kind of the steel pipes for water, oil and gas transportation ,petroleum casing & tubing,railway rails,etc. please feel free to contact us.
