DIN 30670 PSL2 X46 DN400 Anti-corrosion 3LPE coating plastic coated steel pipe
| Product Description | ||
| Product Name | DIN 30670 Anti-corrosion Coated PSL2 X46 141.3mm Outer Diameter 3LPE/3PE Coating Seamless Carbon Steel Pipe | |
| Standard | DIN30670,NF A49-710,CAN/CSA Z245.21,ISO DIS21809-1,GB/T23257,SY/T0413 | |
|
Size | Outer Diameter | 32-1620mm |
| Wall Thickness | 2.9-60mm or customized | |
| Length | 5-12m or customized | |
| Surface Treatment | 3PE(An epoxy resin primer, a PE adhesive and an extruded polyethylene outer layer) /2PE(a PE adhesive and an extruded polyethylene outer layer) | |
| Type of Coating | Design temperatures for sintered polyethylene coatings Design temperatures for extruded polyethylene coatings | |

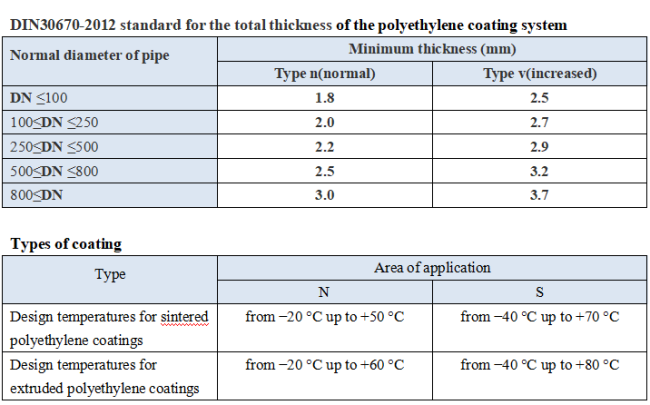

| Layer Thickness | The minimum layer thickness of epoxy resin primer is 60 µm or customized. The minimum layer thickness of PE adhesive is 140 µm or customized. The Minimum thickness of polyethylene coatings is in the table below or customized. | |
| Layer Tolerance | ±10% | |
| Features | Strong bonding strength, good insulation performance, mechanical shock resistance, long service life, and small cathodic protection current density, etc. | |
| Application | Suitable for the underground water supply and drainage in coal mines, downhole shotcrete, ventilation of positive and negative pressure, waste residue of process water, backwater and long-distance underground pipelines for oil, water, and gas, etc. | |
| Min. Order | 1 tons, more quantity price will be lower | |
| End | Plain, beveled, cutting, threading, flange or customized | |
| End Protector | Plastic pipe caps, iron protector or customized | |
| Package | 1.Bundling with steel strip. 2.Oiled and packing with plastic wrap. 3.In bulk. 4.Packing in woven bags. 5.As customer's requirement. | |
| Shipping | 1.Length 2.Length>/=6.0 Meters, Loaded in 40 Feet Container. | |
| Delivery Time | Normally within 15 days and according to the quantity. | |
3PE Layer 2PE Layer
3PPPvnnvjvvv
Inner Mongolia Rational Industry Limited(IMRI)is a supplier of anti-corrosion coating steel pipe and seamless steel pipes. We have two production lines for external anti-corrosion coating, one production line for internal coating and one production line for insulating tubes. We are specialized in 3LPE, 3LPP, FBE and fusion bonded epoxy and PU foam coated steel pipes. What's more, we are mainly engaged in accessory processing for Baotou Steel, which is the top 3 manufacturer of seamless steel pipe in China. At the same time, IMRI is a first-class distributor of Baotou Steel’s steel products. We have established a long-term strategic co-operation relationship with Baotou Steel.
Baotou Steel's Plant Area
Baotou Steel has 5 carbon steel seamless pipe production lines and 4 steel pipe heat treatment lines. Two of the world's most advanced PQF three-roll automatic rolling production line, one MPM two-roll automatic rolling production line. It can produce various kinds of carbon steel seamless pipe, including OCTG steel casing and tubing pipe, line pipe, low/high pressure boiler tube, hydraulic pillar tube, high pressure gas cylinder steel pipe, structure pipe, fluid conveying steel pipe, fitting, axle tube, rectangular tube, and so on. It can produce carbon steel seamless pipe in outer diameter from 38 mm to 457 mm, wall thickness from 2.9 mm to 60 mm with 180 tons annual output.
