2'' 4'' 6'' Anti-corrosion Coated Steel Pipe schedule rating 60 80 100 160 Internal Liquid Epoxy Coating Seamless Steel Pipe

   Inner Mongolia Rational Industry Limited (IMRI) is a supplier of anti-corrosion coating and seamless steel pipes. We have two production lines for external anti-corrosion coating, one production line for internal coating and one production line for insulating tubes. We mainly engage in accessory processing for Baotou Steel. At the same time, IMRI is a distributor of Baotou Steel''s steel products. We have established a long-term strategic co-operation relationship with Baotou Steel.
   Core members of our team have more than 10 years'' experience in the field of anti-corrosion coating production as well as anti-corrosion equipment designing. They are familiar with the purchasing requirements on anti-corrosion coating and steel pipes from international major oil companies. They also have supply experience for such companies like SONATRACH, BP, OGDCL, MRC, OXY, PDVISA, OMAN, LUK OIL, SHELL, ITOCHU, and BASF, etc.
   IMRI specializes in the process of internal and external pipe-coating, including 3LPE, 3LPP, FBE, and insulating tubes, etc. Our company is a distributor of Inner Mongolia Baotou steel Union Co., Ltd. The main products are seamless pipes, gas cylinder tubes, oil casing, hydraulic pillar tubes, alloy tubes, steel plates, wire rod coils, shape steels, and rail steels, etc.
   Founded in 1954, Baotou Steel is one of the steel companies who has the most complete industrial chain in China. It can produce 17 million tons of steel per year. It is a large integrated enterprise with iron ore, rare-earth ore, smelting, casting, rolling, pipe processing, testing, researching and transportation.
   Baotou Steel is a seamless pipe manufacturer with the most complete varieties and specifications in China whose annual output is 1.8 million tons. There are 5 production lines for seamless pipes in Baotou Steel. Among these, 2 PQF production lines are the most advanced in the world, and 1 MPM two-roll continuous rolling automatic production line is included.
   Combining its own advantage of coating technology with Baotou Steel''s advantages of products diversification, excellent quality, and low cost, IMRI can really achieve one-stop supply of anti-corrosive steel pipes.

Details

The main performances of internal coating:

Items	Performance index	Test method
Pinhole test	Pinhole dispersion shall be held to a minimum	API RP 5L 2-2002
Dry film thickness	≥80μm	API RP 5L 2-2002
Cure test	No softening, wrinking or blistering	API RP 5L 2-2002
Adhesion test	No loss of adhesion	API RP 5L 2-2002
Bend test	No loss of adhesion, spalling,crack	API RP 5L 2-2002
Soaking test	No loss of adhesion,softening, wrinking or blistering	API RP 5L 2-2002
Stripping test	Flake off,present powder particles when rolled	API RP 5L 2-2002

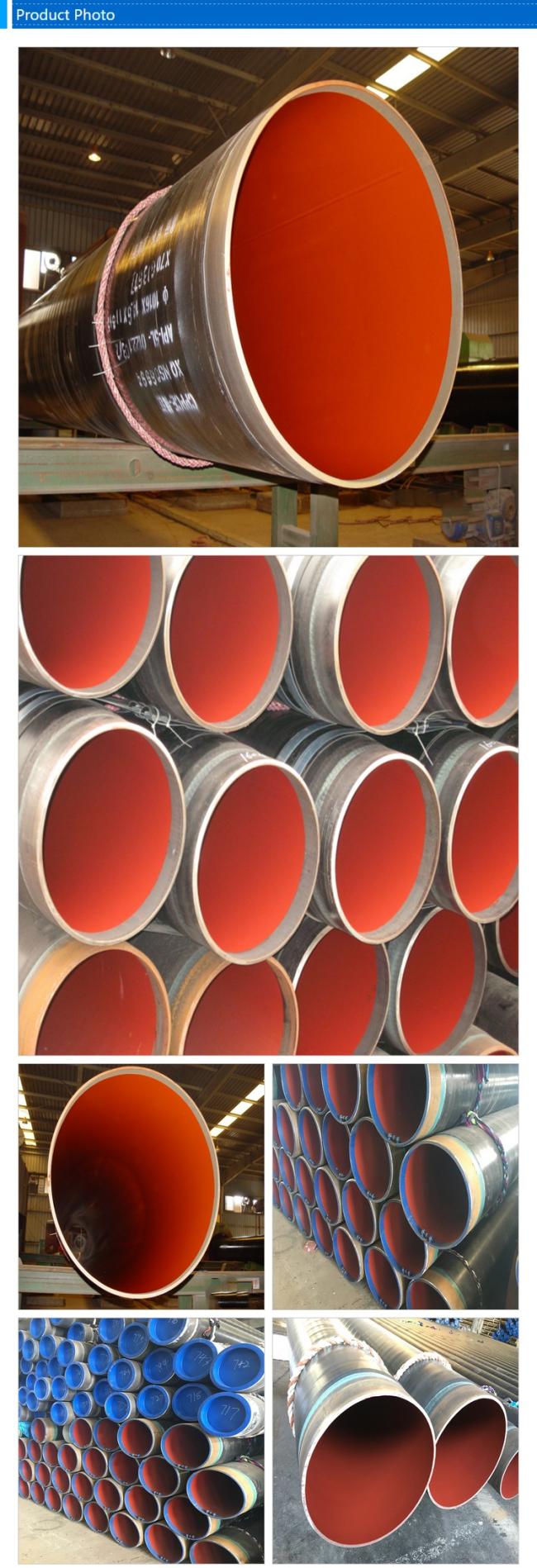

Almost all along distance transmission pipeline use liquid epoxy materials for internal coating to reduce flowing resistance, the coat improve the liquidity of medium, increasing the throughput and reduce the engineering cost, save power consumption.

We perform this coating as per for API PR-5L, etc.

name	Anti-corrosion Coated Steel Pipe Internal Liquid Epoxy Coating Steel Pipe
OD	38-457mm
WT	2.9-60mm
application	oil and gas pipeline waste water pipeline chemical industry other anti-corrosion pipeline
package	according to the customer's request
delivery time	depends on the quantity
advantages	1.low cost and environmental 2.anti-abrasive and anti-corrosive 3.waterproof 4.long service life:30-50 years 5.high mechanical strength



Layer Type

Layer Type	Dry film thickness(µm)
Type n (normal)	≥ 200
Type v (increasing)	≥ 250
Type s (special)	≥ 300
Note: The thickness of anti-corrosion layer at the welded places shall not be less than 80% of the specified thickness of the anti-corrosion layer of the pipe body.
