Thread Grease For Use on Drill Collars Drill Pipe Tubing and Casing
Product Show
Thread Grease For Use on Drill Collars Drill Pipe Tubing and Casing
Product Description
| Steel Tube name | Borewell casing pipe api 5ct 9 5/8 oil well bore steel casing and tubing for borewell |
| Outside Dia(mm) | 48.26-406.4mm |
| Wall Thickness(mm) | 3.18-22.22mm |
| Length | R1/R2/R3 |
| Thread Type | BTC/LC/STC |
| Standard | API 5CT /API 5B |
| Material | J55,K55,N80,L80-1,C90,R95,P110,BT110T,Q125 |
| Surface | Black painting, varnish paint, anti rust oil, 3PE,etc |

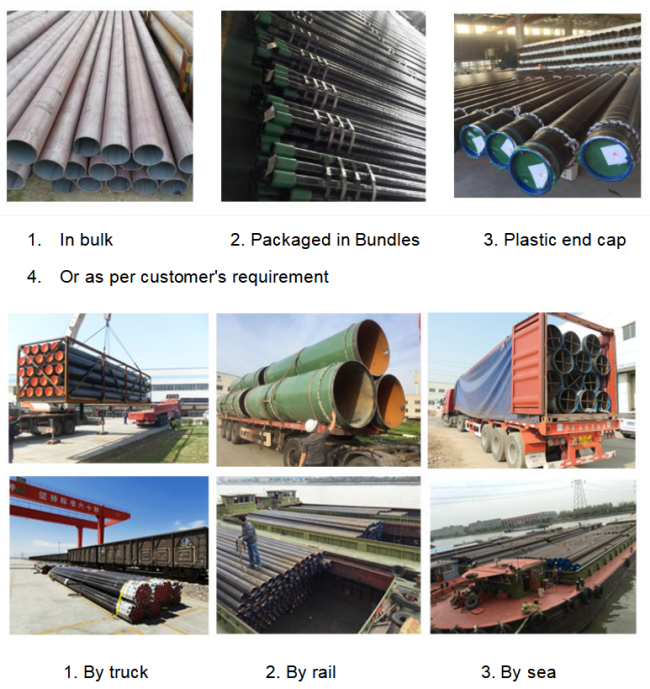

| Packaging | Loose package, packaged in bundles(3Tons Max) , bundled pipes with two slings at both ends for easy loading and discharging, end with plastic caps or as per customers’ requirements |
| Application | Borewell casing pipe api 5ct 9 5/8 oil well bore steel casing and tubing for borewell |
Casing we provide:
size:4-1/2 inch, 5 inch, 5-1/2 inch 6-5/8 inch, 7 inch, 7-5/8 inch, 7-3/4 inch, 8-5/8 inch,9-5/8 inch,10-3/4 inch,11-3/4 inch, 13- 3/8 inch,16 inch
OD:114.3-406.4mm
WT:5.21-22.22mm
Material :J55/K55 M65 L80/C95 N80 C90/T95 P110 Q125
Tubing we provide:
size: 1.900 inch, 2.063 inch,2-3/8 inch,2-7/8 inch, 3-1/2 inch,4 inch, 4-1/2 inch
OD:48.26-114.3mm
WT:3.18-16mm
Material :J55/K55 M65 L80/C95 N80 C90/T95 P110 Q125
| 9 5/8'' Seamless Steel Casing pipe Details | |||||
| Inch | Lb/Ft | PPF | OD(mm) | kg/m | WT(mm) |
| 9 5/8 inch | 32 lb/ft | 32 ppf | 244.48mm | 48.07kg/m | 7.92mm |
| 9 5/8 inch | 36 lb/ft | 36 ppf | 244.48mm | 53.57kg/m | 8.94mm |
| 9 5/8 inch | 40 lb/ft | 40 ppf | 244.48mm | 59.53kg/m | 10.03mm |
| 9 5/8 inch | 43.5 lb/ft | 43.5 ppf | 244.48mm | 64.73kg/m | 11.05mm |
| 9 5/8 inch | 47 lb/ft | 47 ppf | 244.48mm | 69.94kg/m | 11.99mm |
| 9 5/8 inch | 53.5 lb/ft | 53.5 ppf | 244.48mm | 79.62kg/m | 13.84mm |
| 9 5/8 inch | 58.4 lb/ft | 58.4 ppf | 244.48mm | 86.91kg/m | 15.11mm |
| 9 5/8 inch | 59.4 lb/ft | 59.4 ppf | 244.48mm | 88.4kg/m | 15.47mm |
| 9 5/8 inch | 64.9 lb/ft | 64.9 ppf | 244.48mm | 96.58kg/m | 17.07mm |
| 9 5/8 inch | 70.3 lb/ft | 70.3 ppf | 244.48mm | 104.62kg/m | 18.64mm |
| 9 5/8 inch | 75.6 lb/ft | 75.6 ppf | 244.48mm | 112.5kg/m | 20.24mm |
Application
IMRISTEEL can provide you with OCTG casing pipe and tubing pipe in such grades as H40, J55, K55, N80-1, N80Q, L80-13Cr, R95, C90, T95, C110, P110, Q125 according to API 5CT certificate. Besides, we can also produce such as BTC, LTC and STC thread and special threads. Welcome to contact us if you have any project , I will serve you the best products and service.
Advantages
1.After over sixty years’ endeavor,Baotou Steel has grown to be the world’s largest rare earth industry base and domestic vital steel industry base.
2.Baotou Steel has the largest iron ore in the northwest part of China.
3.At present, Baotou Steel’s production capacity of iron and steel products has reached to 16.5 million tons.
Its products have been sold to over 60 countries abroad.
4. At the same time, it is the world’s most capable high speed rail production base with world’s best equipments.
Inner Mongolia Rational Industry Limited(IMRI)is a supplier of anti-corrosion coating steel pipe and seamless steel pipes. We have two production lines for external anti-corrosion coating, one production line for internal coating and one production line for insulating tubes. We mainly engage in accessory processing for Baotou Steel, which is the top 3 manufacturer of seamless steel pipe in China. At the same time, IMRI is a first-class distributor of Baotou Steel’s steel products. We have established a long-term strategic co-operation relationship with Baotou Steel.

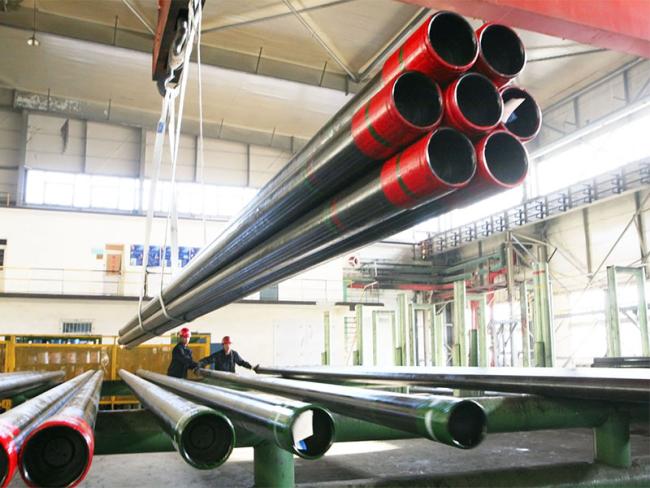

Baotou Steel's Plant Area
Baotou Steel has 5 carbon seamless steel pipe production lines and 4 steel pipe heat treatment lines. Two of the world's most advanced PQF three-roll automatic rolling production line, one MPM two-roll automatic rolling production line. It can produce various kinds of carbon seamless steel pipe, including OCTG steel casing and tubing pipe, line pipe, low/high pressure boiler tube, hydraulic pillar tube, high pressure gas cylinder steel pipe, structure pipe, fluid conveying steel pipe, fitting, axle tube, rectangular tube, and so on. It can produce carbon seamless steel pipe in outer diameter from 38 mm to 457 mm, wall thickness from 2.9 mm to 60 mm with 180 tons annual output.
WHY CHOOSE US ?
Contact Us
We can provide OEM service.If you need any kind of the steel pipes for water, oil and gas transportation ,petroleum casing & tubing,railway rails,etc. please feel free to contact us.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
