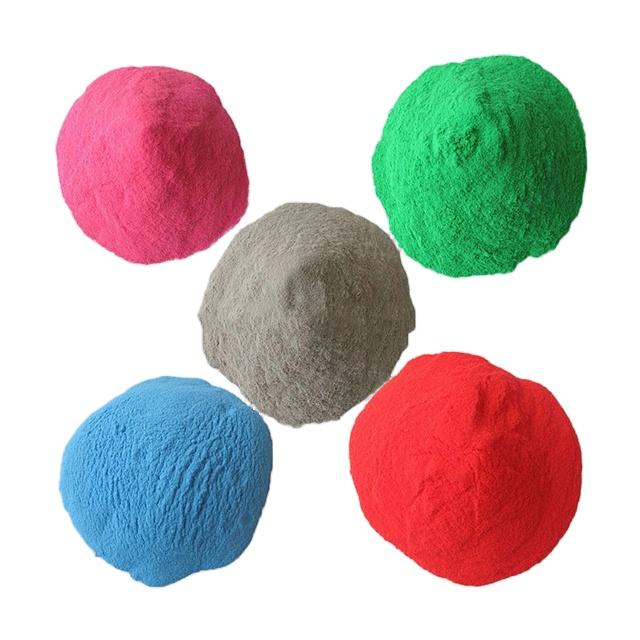

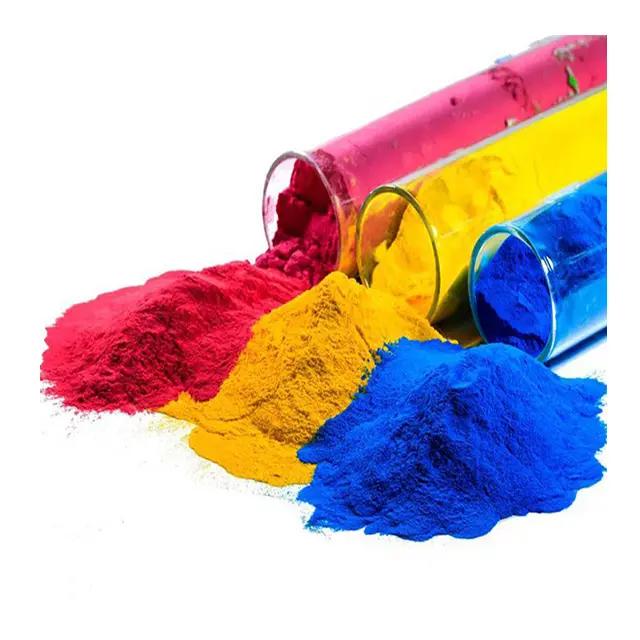

Epoxy Electrostatic Powder Pigment Epoxy Resin
Product Description
Epoxy Electrostatic Powder Pigment Epoxy Resin
| Thickness of FBE coating | 300-500um |
| Thickness of DPS(double layer FBE) coating | 450-1000um |
| standard of coating | SY/T0315,CAN/CSA Z245.20, AWWA C213,Q/CNPC38,etc |
| Use | Land and underwater pipeline anti-corrosion |
| Advantages | Excellent adhesive strength |
| High insulation resistance | |
| Anti-aging | |
| Anti-cathode stripping | |
| Anti high temperature | |
| Resistance to bacteria | |
| Small cathode protection current (only1-5uA/m2) |

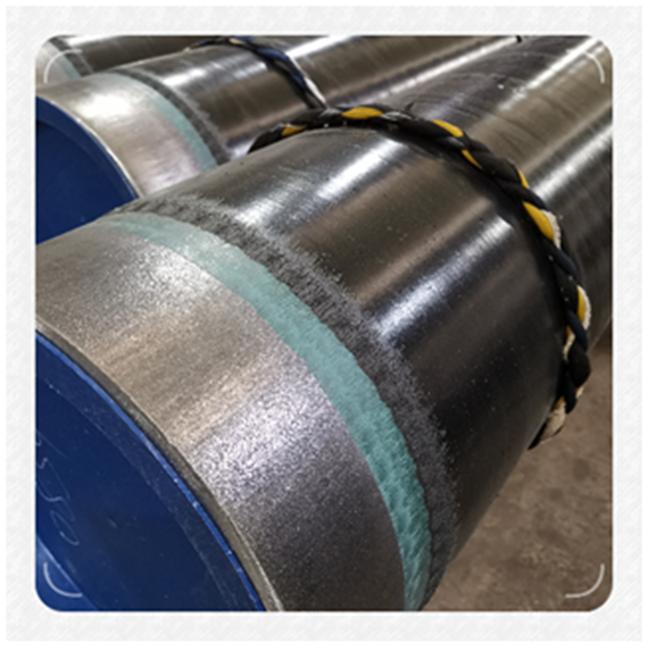

Fusion Bond Epoxy/FBE/DPS Powder for Steel Pipe and Steel Tube Anti Corrosion Coating Material

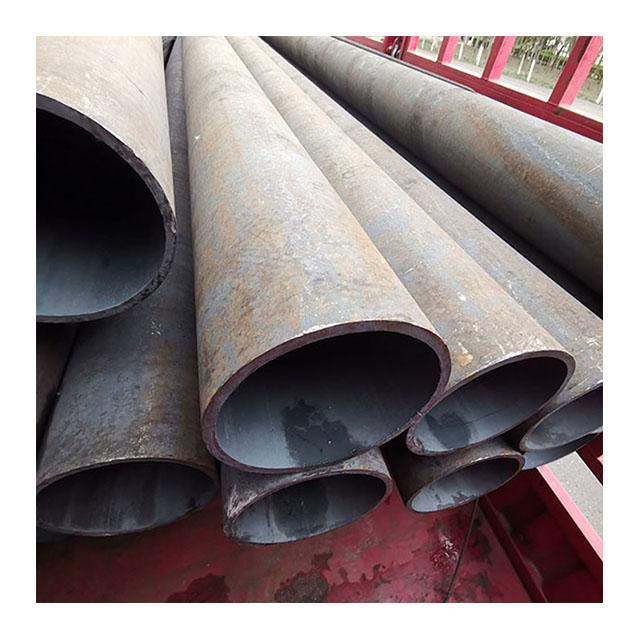

FBE coating material is thermosetting material, it is consist of solid epoxy resin, curing agent and various additives by mixing, grinding. When performing, steel tube was heated to 220-230 degree centigrade, then FBE powder is sprayed on the surface of the pipe by electrostatic adsorption method, FBE powder is heated and cooled melt adhesive curing.Our company supplies many kinds of anti-corrosion materials,steel pipes,such as FBE,DPS,2LPE,2LPP,3LPE and 3LPP coating steel pipes as well as bare steel pipes.
| FBE powder performance test | |||||||
| Items | Technical indicators | Result | Method | ||||
| Appearance | Uniform color, no cracks | Uniform color, no cracks | Visual inspection | ||||
| Particle size distribution(%) | 150μm | ≤3.0 | 1.5 | GB/T6554 | |||
| 250μm | ≤0.2 | 0 | |||||
| Gel time(s)(230℃±3℃) | ≤30 | 10 | GB/T6554 | ||||
| Curing time(min)(230℃±3℃) | ≤2 | 2 | Appendix A | ||||
| Non-volatile matter content(%) | ≥99.4 | 99.7 | GB/T6554 | ||||
| Thermal properties | ΔH(J/g) | 35±10 | 42.13 | Appendix B | |||
| Tg2(℃) | ≥Maximum service temperature+40℃ | 101.47 | |||||
| FBE powder coating performance test | |||||||
| Items | Technical indicators | Result | Method | ||||
| Appearance | Smooth, uniform color, no bubbles, no cracks and shrinkage holes, light orange peel pattern is allowed | Smooth, uniform color, no bubbles, no cracks and shrinkage holes, mild orange peel pattern | Visual inspection | ||||
| Adhesion 24h (grade) | 1~3 | 1 | Appendix G | ||||
| 65℃,48h cathodic disbonding(mm) | ≤6.5 | 1.9 | Appendix C | ||||
| Thermal properties | |ΔTg|(℃) | ≤5 | 0.65 | Appendix B | |||
| Section porosity (grade) | 1~4 | 1 | Appendix F | ||||
| Bond surface porosity (grade) | 1~4 | 2 | Appendix F | ||||
| Electric strength (MV/m) | ≥30 | 40 | GB/T1408.1 | ||||
| Mass resistivity (Ω·m) | ≥1×1013 | 3.0×1013 | GB/T1410 | ||||
| Abrasive resistance | ≥3 | 3.5 | Appendix F | ||||
| 3°bend resistance | No cracks | No cracks | Appendix D | ||||
| Chemical resistance | Qualified | Qualified | Appendix J | ||||
| 1.5 J impact resistance | No cracks | No cracks | Appendix E | ||||
MRI is a FBE powder coating design service supplier.FBE powder is commonly used in anti-corrosive coating such as gas,water,oil pipeline, valve body surface, chemical pool tank and other items of anti-corrosive protection. Moisture-proof insulation coating such as iron core, coil, battery, transformer,electrical equipment and other devices.Decoration coating such as automobile body, agricultural machinery surface, bicycles, light industrial equipment, mechanical and electrical equipment.
Customer Visit
Quality Guarantee
Packing & Shipping

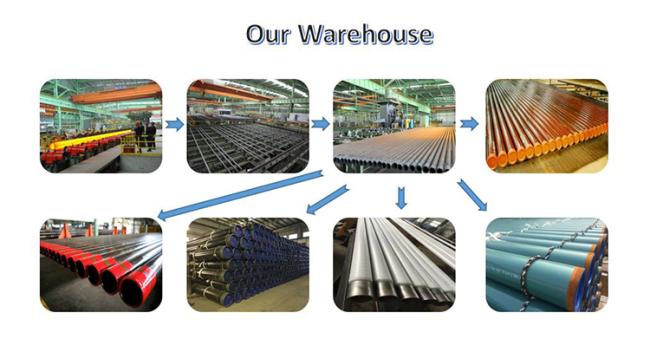

Our Warehouse
Certificates
Our service:
1.Competitive price: we would always try our best to meet your target price.
2.Short lead time: around 10-30 days(according the order quantity).
3.Prompt feedback: all your emails and questions would be processed immediately.
4.Quality: according the given standard such as SY/T0315,CAN/CSA Z245.20,AWWA C213,Q/CNPC38,etc.
5.Flexible payment terms: TT/LC or others ( negotiate with purchaser)
6.Inspection: Third Party Inspection or customer of inspection both OK.
More Products
Core members of our team have more than 10 years'' experience in the field of anti-corrosion coating production as well as anti-corrosion equipment designing. They are familiar with the purchasing requirements on anti-corrosion coating and steel pipes from international major oil companies. They also have supply experience for such companies like SONATRACH, BP, OGDCL, MRC, OXY, PDVISA, OMAN, LUK OIL, SHELL, ITOCHU, and BASF, etc.
IMRI specializes in the process of internal and external pipe-coating, including 3LPE, 3LPP, FBE, and insulating tubes, etc. Our company is a distributor of Inner Mongolia Baotou steel Union Co., Ltd. The main products are seamless pipes, gas cylinder tubes, oil casing, hydraulic pillar tubes, alloy tubes, steel plates, wire rod coils, shape steels, and rail steels, etc.
Founded in 1954, Baotou Steel is one of the steel companies who has the most complete industrial chain in China. It can produce 17 million tons of steel per year. It is a large integrated enterprise with iron ore, rare-earth ore, smelting, casting, rolling, pipe processing, testing, researching and transportation.
Baotou Steel is a seamless pipe manufacturer with the most complete varieties and specifications in China whose annual output is 1.8 million tons. There are 5 production lines for seamless pipes in Baotou Steel. Among these, 2 PQF production lines are the most advanced in the world, and 1 MPM two-roll continuous rolling automatic production line is included.
Combining its own advantage of coating technology with Baotou Steel''s advantages of products diversification, excellent quality, and low cost, IMRI can really achieve one-stop supply of anti-corrosive steel pipes.
