Custom shape NdFeb magnet rare earth strong neodymium magnet N35 N42 N50 N52 neodymium magnet with Ni-Cu-Ni coating
Custom shape NdFeb magnet rare earth strong neodymium magnet N35 N42 N50 N52 neodymium magnet with Ni-Cu-Ni coating
Specification
| Product Name | Custom shape NdFeb magnet rare earth strong neodymium magnet N35 N42 N50 N52 neodymium magnet with Ni-Cu-Ni coating | |
| Type | Square magnet steel, rare earth permanent magnet, neodymium iron boron square, square neodymium magnet,ring magnet,disc magnet,arc magnet,ring magnet,segment magnet,etc. | |
| Material | Neodymium iron boron, neodymium magnet, rare earth magnet steel, magnet | |
| Performance level and operating temperature | Performance level | The highest operating temperature |
| N35-N54 | 80°C (176°F) | |
| 35M-52M | 100°C (212°F) | |
| 35H-50H | 120°C (248°F) | |
| 33SH-48SH | 150°C (302°F) | |
| 28UH-45UH | 180°C (356°F) | |
| 28EH-42EH | 200°C (392°F) | |
| 28AH-40AH | 230°C (446°F) | |
| Appearance | Square or rectangle or cube, disc, ring, cylinder, tile and all kinds of special products can be made | |
| Clad layer | Nickel, nickel copper nickel, chemical nickel, blue and white zinc, color zinc, epoxy resin, phosphating, passivation, elvore, gold, silver, tin | |
| Magnetization direction | Thickness direction magnetization, axial magnetization, radial magnetization, multistage magnetization and radiation magnetization, and special customized magnetization can also be operated | |
| Application | Servo motor, brushless motor, linear motor, electric tools, automobile spare parts (EPS, the oil pump motor, start the motor, ignition coil, etc.), the electric car motor, robot drive motor, frequency conversion compressor, rail transit traction motor, consumer electronics, permanent magnet wind turbine, energy-saving elevator, sound equipment, magnetic switch, optical drive heads, nuclear magnetic resonance (NMR), magnetic separator, sensors, etc | |
| Certificate | ISO/TS 16949, ISO9001, ISO14001, RoHS, REACH | |
| Package | Standard sea or air packing, such as cartons, wooden cases, pallets, etc | |
| Delivery time | The sample usually takes 10 days, and the batch usually takes 15-30 days | |
| Shippment | Express(TNT, DHL, FedEx, UPS), Air and sea transport | |
Neodymium magnets are mainly composed of neodymium, iron, boron and other chemical elements according to their chemical formula.Neodymium-iron-boron magnet is the most commercially available magnet and is known as magnetic king. It has an extremely high magnetic capacity and its maximum magnetic energy product (BHmax) is 10 times higher than Ferrite.Its own mechanical processing performance is also quite good.Operating temperature up to 200 degrees Celsius.And its texture is hard, performance is stable, have very good cost performance, therefore its application is extremely extensive.But because its chemical activity is very strong, so must its surface coating treatment.(e.g. Zn,Ni, electrophoresis, passivation, etc.)

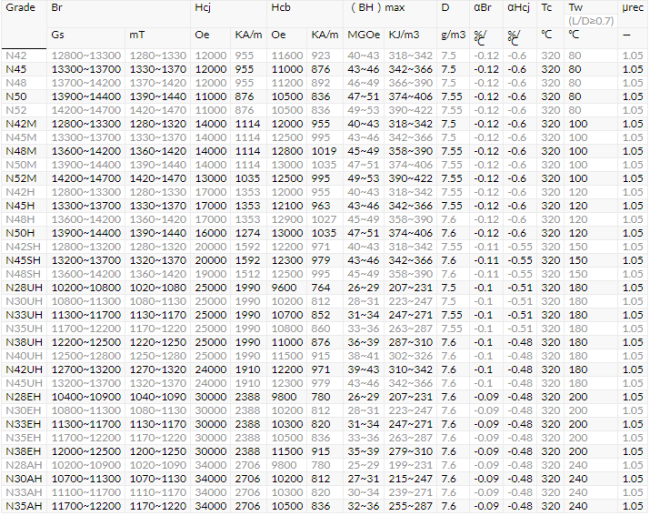

Magnetic properties of various grades of NdFeB materials:
Product Show
Disc magnet
Cylindrical magnet
Block magnet
Ring magnet
Tile type magnet
Special shaped magnet
Baotou has abundant NdFeB resources, which makes it a famous production base of magnetic materials.IMRI will provide you best quality magnet products at a reasonable price.
Be diligent and do better than you expect.Contact us
We can provide OEM service.If you need any kind of the NdFeB magnets,steel pipes for water, oil and gas transportation ,petroleum casing & tubing,railway rails,etc. please feel free to contact us.
