Vehicle Transmission Powering Progress Belt Multi-Ribbed Belt Rubber Pk Belt
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Product Details
Type and Size of Classical V Belt
| V-belt Type | Top Width | Pitch Width | Height | Length | Length Range | Length Range | Reinforcement | Angle |
| Conversion | (inch) | (mm) | Body | 40° | ||||
| O | 10 | 8.5 | 6 | lw=Li+25 | 15"-99" | 380-2514 | 7*4N*3 | 40° |
| A | 13 | 11 | 8 | lw=Li+33 | 19"-163" | 480-4139 | 7*4N*3 | 40° |
| B | 17 | 14 | 11 | lw=Li+43 | 25"-360" | 630-9159 | 8*5N*3 | 40° |
| C | 22 | 19 | 14 | lw=Li+62 | 49"-479" | 1256-12160 | 9*9N*3 | 40° |
Type and Size of V Ribbed Belt/Poly V Belt
| Type | Rib Section | Angle of Rib | Belt Width | Belt Thickness | Rib Number | Length Range |
| 3PK | 3.56 | 40 | 10 | 4.8 | 3 | 500-5000mm |
| 4PK | 3.56 | 40 | 13.6 | 4.8 | 4 | 500-5000mm |
| 5PK | 3.56 | 40 | 17 | 4.8 | 5 | 500-5000mm |
| 6PK | 3.56 | 40 | 20.7 | 4.8 | 6 | 500-5000mm |
| 7PK | 3.56 | 40 | 24.3 | 4.8 | 7 | 500-5000mm |
| 8PK | 3.56 | 40 | 27.8 | 4.8 | 8 | 500-5000mm |
| 9PK | 3.56 | 40 | 31.4 | 4.8 | 9 | 500-5000mm |
| 10PK | 3.56 | 40 | 35 | 4.8 | 10 | 500-5000mm |
| 12PK | 3.56 | 40 | 42.5 | 4.8 | 12 | 500-5000mm |
| 15PK | 3.56 | 40 | 53 | 4.8 | 15 | 500-5000mm |
| Function | Material | |
| Tension Member | The treated polyester cord is a low stretch high strength tension member able to withstand shock loads on drives with fixed centers | Polyester/Aramid Fiber |
| Rubber Ribs | Long wearing, oil resistant, fibre-loaded neoprene rubber is used in the ribs to provide support for the tension member and to transmit the loads to the pulley | NR,CR,EPDM |
| Backing Material | Bias ply type fabric backing resists cracking and provides abrasion resistance | NR,CR,EPDM |
| Insulation Material | oil and heat resistant rubber is used to bond the tension member to the rest of the belt | NR,CR,EPDM |
Related Products
Application

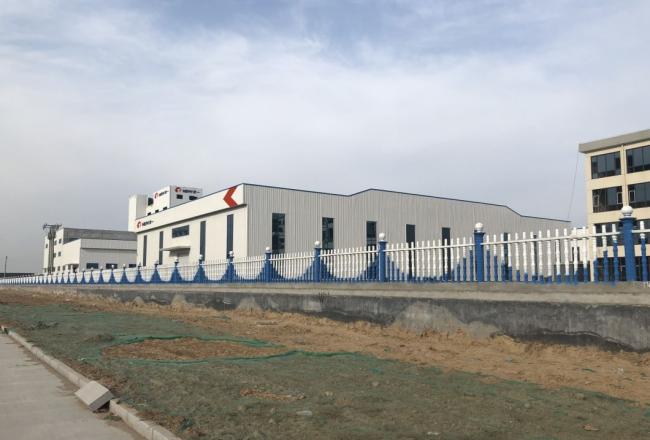

Factory and workshop
