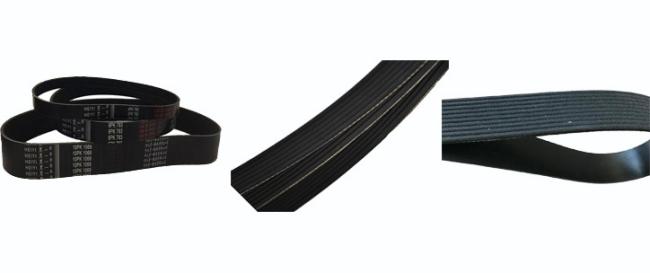

Factory Direct Rubber V Belt, Industrial Belt
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Type and Size of PK Belt/Poly V Belt
Marking
| Type | Rib Section | Angle of Rib | Belt Width | Belt Thickness | Rib Number | Length Range | MOQ |
| 3PK | 3.56 | 40 | 10 | 4.8 | 3 | 500-5000mm | 90pcs |
| 4PK | 3.56 | 40 | 13.6 | 4.8 | 4 | 500-5000mm | 66pcs |
| 5PK | 3.56 | 40 | 17 | 4.8 | 5 | 500-5000mm | 54pcs |
| 6PK | 3.56 | 40 | 20.7 | 4.8 | 6 | 500-5000mm | 44pcs |
| 7PK | 3.56 | 40 | 24.3 | 4.8 | 7 | 500-5000mm | 38pcs |
| 8PK | 3.56 | 40 | 27.8 | 4.8 | 8 | 500-5000mm | 33pcs |
| 9PK | 3.56 | 40 | 31.4 | 4.8 | 9 | 500-5000mm | 28pcs |
| 10PK | 3.56 | 40 | 35 | 4.8 | 10 | 500-5000mm | 26pcs |
| 12PK | 3.56 | 40 | 42.5 | 4.8 | 12 | 500-5000mm | 23pcs |
| 15PK | 3.56 | 40 | 53 | 4.8 | 15 | 500-5000mm | 18pcs |
Structure of ribbed Belt
| Function | Material | |
| Tension Member | The treated polyester cord is a low stretch high strength tension member able to withstand shock loads on drives with fixed centers | Polyester/Aramid Fiber |
| Rubber Ribs | Long wearing, oil resistant, fibre-loaded neoprene rubber is used in the ribs to provide support for the tension member and to transmit the loads to the pulley | NR,CR,EPDM |
| Backing Material | Bias ply type fabric backing resists cracking and provides abrasion resistance | NR,CR,EPDM |
| Insulation Material | oil and heat resistant rubber is used to bond the tension member to the rest of the belt | NR,CR,EPDM |
Products Display
Advantages
. Thousands of moulds available. MOQ is based on one mould quantity
. ISO/TS16949 quality certificate
. Warranty: 100000kms-150000kms
. We could supply a whole series of auto PK belts, accept OEM
Product Description
. Excellent flexibility
. High power transmission efficiency
.Reduced noise
. High grade engineered rubber
. Longer service life
.Temperature range from -50ºC to +120ºC
.Oil, heat,ozone and abrasion resistant
FAQ
Q1. Can I have a sample order?
Yes, any sample order is welcomed to know the quality of our products.
Q2. What about the lead time of the sample or the final order?
2-5 days for normal sample.
20-30 days for a formal order.
Q3. How much is the minimum quantity for each item in one order?
One mould quantity is ok. Usually around 50pcs for small item, 10pcs for big item.
Q4. Is it possible to print our logo or brand on the belt?
Yes, we can print your logo or design on the belt after receipt of your formal authorization letter of the logo or your brand.
Q5. Do you offer the guarantee for your product?
Yes, usually we offer one year warranty for all of our products.
We are the rubber product factory HEYI RUBBER Co.,Ltd, we have strong technical force,advanced production
technology and sophisticated production equipment.
