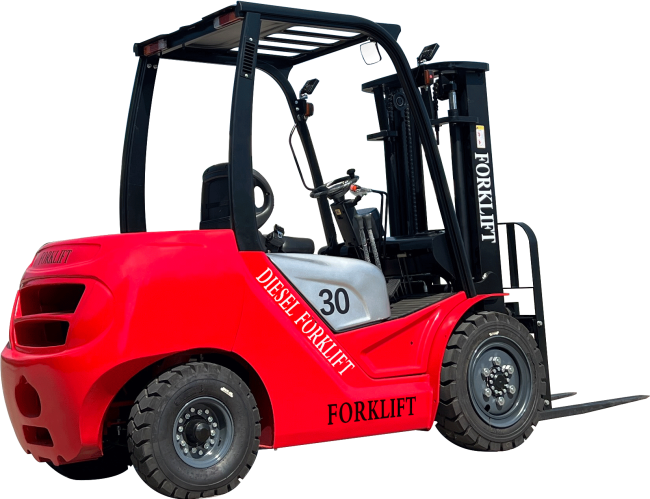

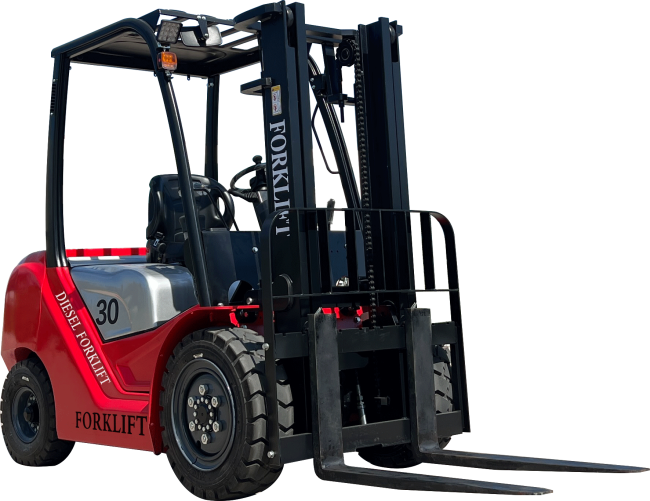

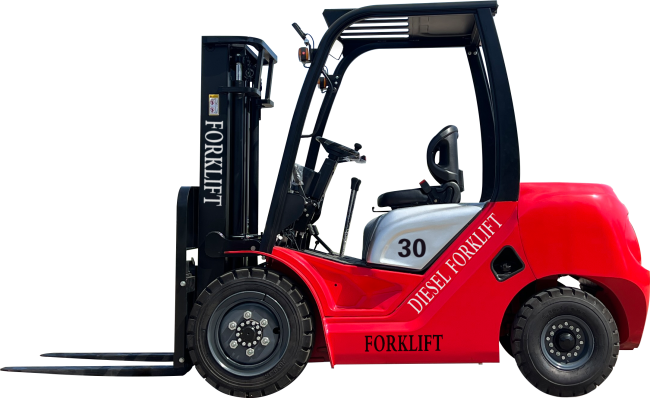

Quality Heavy Duty Forklift Truck Optional Automatic Transmission 1.5ton 2.5 Ton 3 Ton Diesel Forklift
Quality Heavy Duty Forklift Truck Optional Automatic Transmission 1.5ton 2.5 Ton 3 Ton Diesel Forklift
Product Parameters
|
Basic parameters |
||||
|
Model |
|
CPC30-K |
CPC35-K |
|
|
Power type |
|
diesel |
diesel |
|
|
Rated capacity |
kg |
3000 |
3000 |
|
|
Load center |
mm |
500 |
500 |
|
|
Characteristic & Dimension |
||||
|
Lifting height |
mm |
3000 |
3000 |
|
|
Free lift height |
mm |
110 |
110 |
|
|
Fork size (L*W*T) |
mm |
1070*122*45 |
1070*125*50 |
|
|
Mast tilt angle (F/R) |
Deg |
6°/12° |
6°/12° |
|
|
Front overhang |
mm |
450 |
450 |
|
|
Rear overhang |
mm |
525 |
550 |
|
|
Min ground clearance |
mm |
115 |
115 |
|
|
Length to face of fork (without fork) |
mm |
2750 |
2750 |
|
|
Overall width |
mm |
1210 |
1210 |
|
|
Min mast height |
mm |
2060 |
2060 |
|
|
Max mast height |
mm |
4065 |
4065 |
|
|
Overhear guard height |
mm |
2090 |
2090 |
|
|
Min turning radius |
mm |
2600 |
2600 |
|
|
Min straight angle stacking aisle width |
mm |
2160 |
2160 |
|
|
Performance |
||||
|
Travel speed (unload) |
Km/h |
19 |
19 |
|
|
Lifting speed (load) |
mm/second |
430 |
400 |
|
|
Lowering speed (load) |
mm/second |
450 |
450 |
|
|
Maximum Traction |
KN |
19 |
19 |
|
|
Tyre |
||||
|
Maximum climbing angle (load) |
% |
15 |
15 |
|
|
Front tire |
mm |
28x9-15-12PR |
28x9-15-12PR |
|
|
Rear tire |
mm |
6.50-10-10PR |
6.50-10-10PR |
|
|
Front tire tread |
mm |
1000 |
1000 |
|
|
Rear tire tread |
mm |
980 |
980 |
|
|
Wheelbase |
mm |
1750 |
1750 |
|
|
Weight |
||||
|
Self weight |
kg |
4310 |
4750 |
|
|
Transmission |
||||
|
Engine model |
|
4D29V41 |
||
|
Engine manufacturer |
|
Xinchai brand |
||
|
Fuel tank capacity |
L |
60 |
60 |
|
|
Transmission |
|
CHINA |
CHINA |
|
RFQ:
1. What about your delivery time?
May I know how soon I can get the machine after the deposit? Usually, if the quantity is less than 20 units, we can finish the production in 15-20 days. We will try our best to offer the machines to you as soon as possible.
2. What is about your warranty?
12 months. If during the warranty, we will send to you for free by courier.
3. Can provide customized products?
Yes, we can provide customized products according to your requirement.
4. Which is the port of yours?
We ship the goods from Shanghai, Ningbo, Qingdao ports, can be arranged according to custom-er requirements.
5. What can I get from cooperating with you?
Unique products, with customized service. Timely production and delivery, time is money. Market protection service, long term business strategy.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
