16m Hydraulic Diesel Power Off-road Self Propelled Aerial Work Scissor Lifting Platform
16m Hydraulic Diesel Power Off-road Self Propelled Aerial Work Scissor Lifting Platform
| Technical Parameters | |
| Model | QYCY-16RT |
| Max working height | 17.7m |
| Max platform lifting height | 15.8m |
| Rated loading capacity | 680kg |
| Max loading persons | 4 |
| Machine length (folded) | 4.88m |
| Machine width (folded) | 2.29m |
| Machine height (guardrail not folded) | 3.19m |
| Machine height (guardrail folded) | 2.63m |
| Platform size | 4.24 * 1.83m*1.1m |
| Sliding extension platform | 1.3m |
| Wheelbase | 2.84m |
| Inner turning radius | 2.4m |
| Outer turning radius | 5.5m |
| Driving speed (machine folded) | 6.1km/h |
| Driving speed (machine lifting) | 0.5km/h |
| Gradability (machine folded) | 45% |
| Tyre | 33*12-20 |
| Hydraulic oil tank | 110L |
| Diesel oil tank | 150L |
| Ground clearance | 0.2m |
| Power source (battery) | YangMAR/weichai |
| Max allowable working tilt angle (lateral, longitudinal) | 2°/3° |
| Machine weight | ≦8800kg |

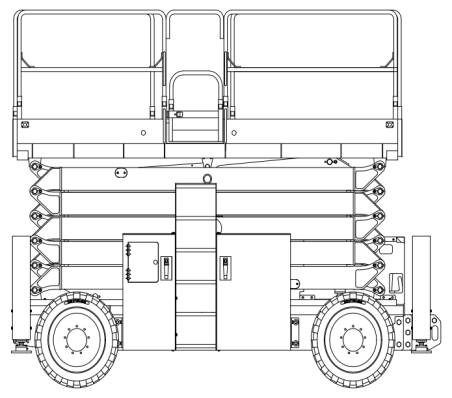

Outline drawing:

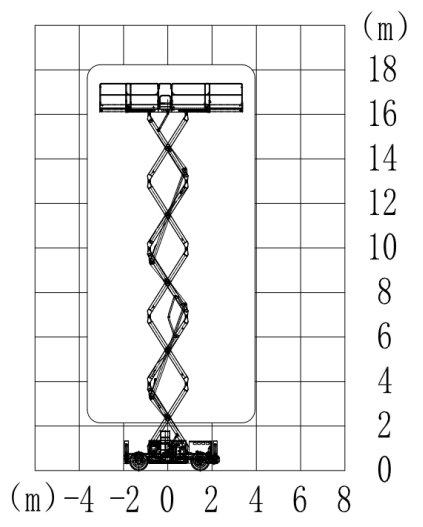

Scope of Work Diagram:
