Hand Hydraulic Handling Pallet Jacks 550mm/ 685mm Fork Outside Width 2 Tons 3 Tons Manual Hydraulic Pallet Forklifts

Price Negotiable
Price: USD 102-132/set
MOQ: 5 Sets
Delivery Time: Within 5-7 days
Brand: CX
Product Description

Hand Hydraulic Handling Pallet Jacks 550mm/ 685mm Fork Outside Width 2 Tons 3 Tons Manual Hydraulic Pallet Forklifts

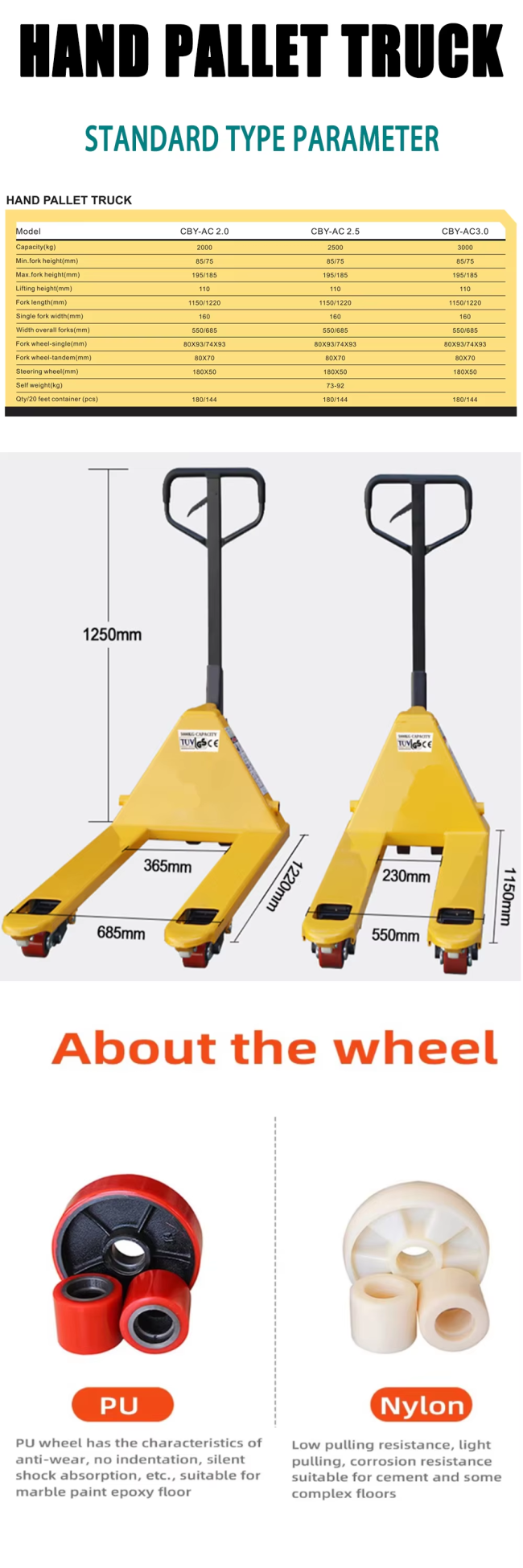

Specifications:

Model

CXB2000

CXB2500

CXB3000

CXB5000

Rated loading capacity

2000kg

2500kg

3000kg

5000kg

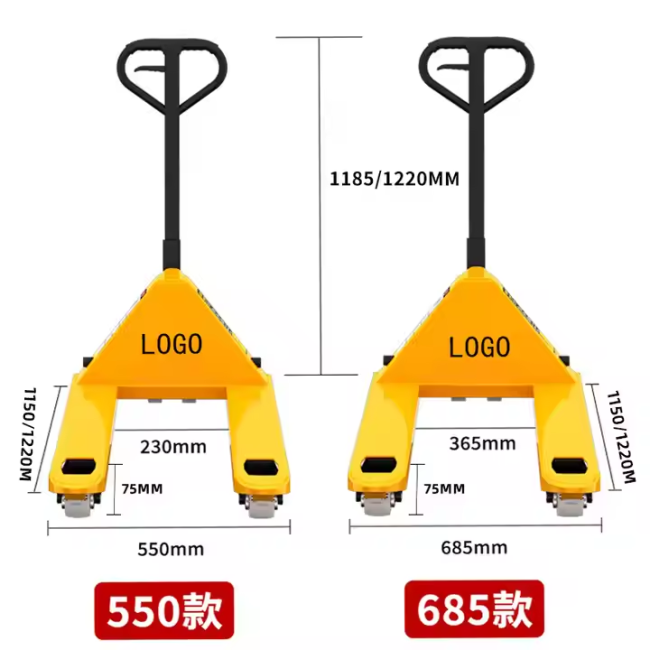

Fork outside width

550/685mm

550/685mm

550/685mm

550/685mm

Fork length

1150/1220mm

1150/1220mm

1150/1220mm

1150/1220mm

Fork width

160mm

160mm

160mm

180mm

Small wheel size

Ø70*60mm

Ø80*70mm

Ø80*60mm

Ø82*67mm

Large wheel size

Ø160*50mm

Ø180*50mm

Ø180*50mm

Ø180*50mm

Max fork height

190mm

198mm

200mm

190mm

Min fork height

75mm

83mm

82mm

85mm

Self height

56-62kg

61-65kg

78-81kg

135-147kg

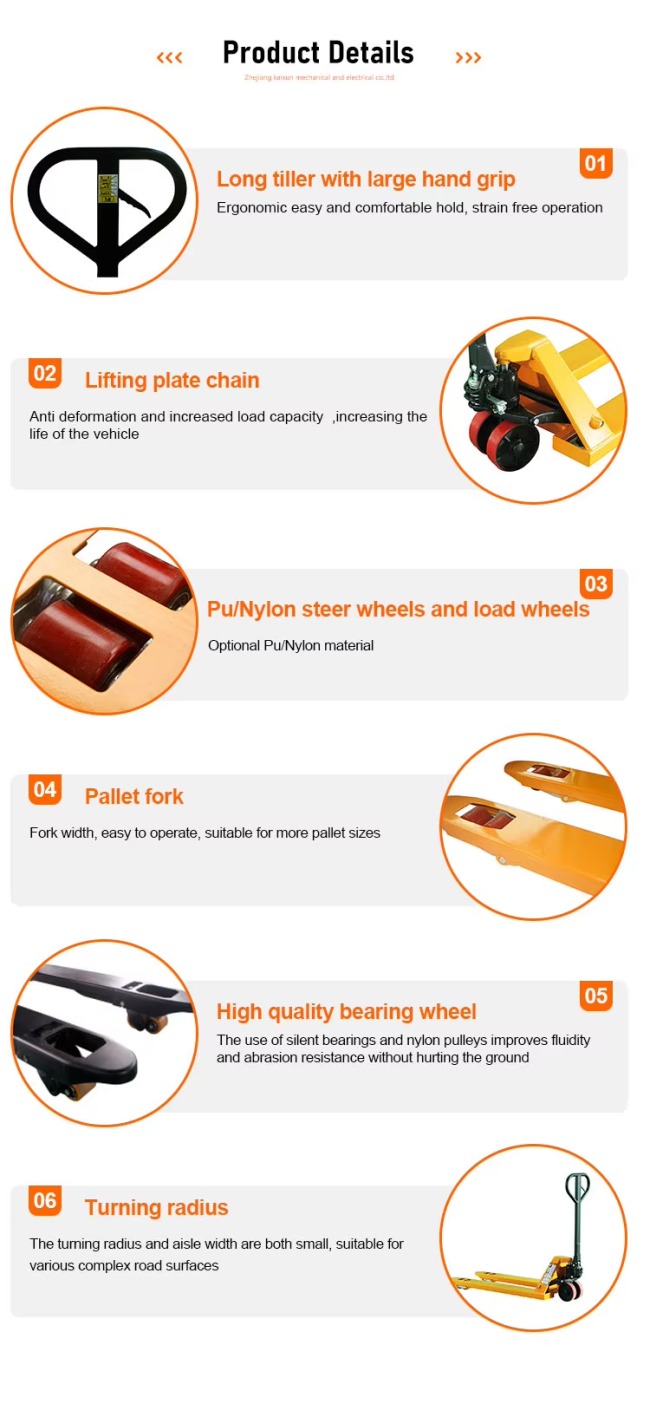

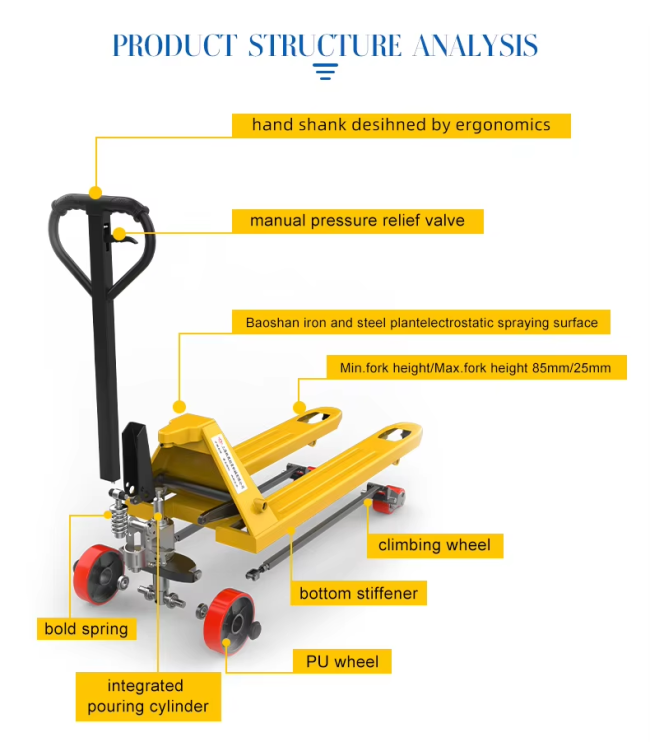

Product Features:

1.The pallet lift truck has a rugged construction and will not bend under heavy loads.

2.Its steel chassis can take about 25 percent more weight than comparable models of this size.

3.The hydraulics are protected from dust and are well suited to long, hard working days, with a minimum of service.

4.The wheels increase handling capacity with their low rolling resistance.

5.The tiller also has a large steering angle on both sides.

6.It's therefore easy to maneuver this hydraulic hand pallet truck in a tight space, such as the truck loading bays.

7.A broad tiller handle protects the hands from injury.



Why Choose Us

1. Experiences

We have 25 years experiences of producing material handling equipment.



2. Team

We enjoy a good team of Sales department and professional design team.



3. Fully customized service

1) Support customization of color, logo, fork length and other machine attributes;

2) Welcome to customize non-standard models.



4. R&D new products

1) We are specializing in manufacturing various 380 items, including hoisting machinery, financial equipments, electric winch, electric truck, electric forklift and hydraulic truck, etc.

2)The r&d team constantly develops new products according to customer needs



5. Product quality certification

1) We have passed the certificate of ISO9001:2015 quality system and BSCI.

2) Our products have got CE, GS, ROHS, CB, UL, CUL and FCC approvals.

3)Our products got the national special equipment production license and industrial products production license.
