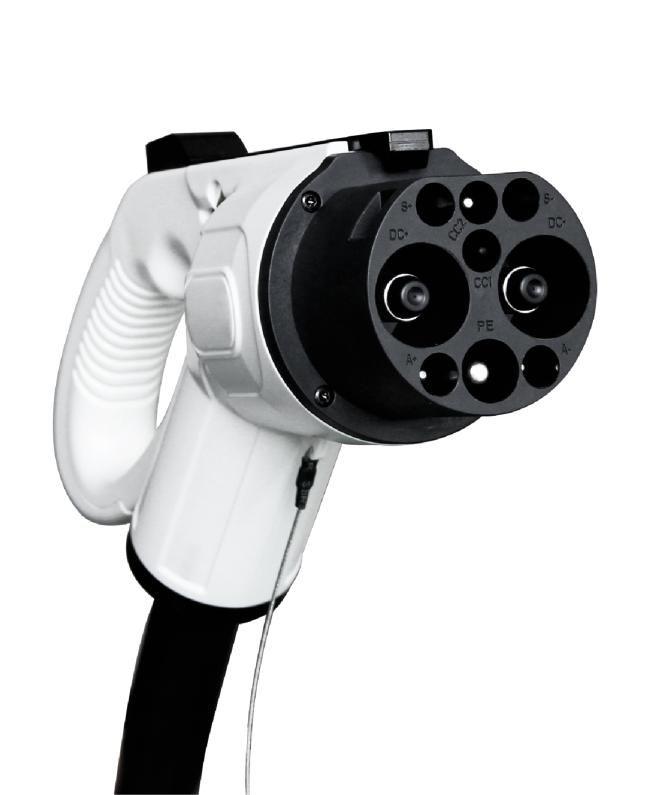

GB/T DC EV Charger Plug 80A 125A 200A 250A Electric Vehicle Charger Cable Connector
DC EV Charger Plug GB/T China Standard EV Plug 80A 125A 200A 250A GBT Electric Vehicle Car Charger Connector
|
Product name
|
GB/T Electric Vehicle DC EV Fast Charger Plug Cable
|
|
Voltage
|
750V/1000V
|
|
Current
|
80A/125A/200A/250A
|
|
Brand Name
|
Evoyage
|
|
Application
|
Electric Vehicle Car Charging
|
|
Standard
|
GB/T 20234.2-2015
|
|
Mechanical life
|
10000 Times' Plug In/off
|
|
Material
|
Thermoplastic
|
|
Warranty
|
1 Year
|
1. Conform to the provisions and requirements of <Connection set for conductive charging of electric vehicles> GB/T 20234.2-2015.
2. Have a electromagnetic locking device, have functions of signal feedback.
3. Have one or two PTC (PT1000) thermistor (can match with NTC or Temperature control switch) .
4. The head of pins using safety insulation design to prevent direct contact with the hand.
5. Excellent protection performance, prodection grade achieved IP55 (working condition).
6. Applied double color coating technology, personalized custom a variety of colors.
