Type 2 Male EV Charging Plug 16A 32A IEC 62196-2 For EV Charging Station Side
Type 2 EV Plug Single Phase 16A/32A EV Chargers Connector Gun IEC 62196 Type 2 Female Plug For EV charging Station

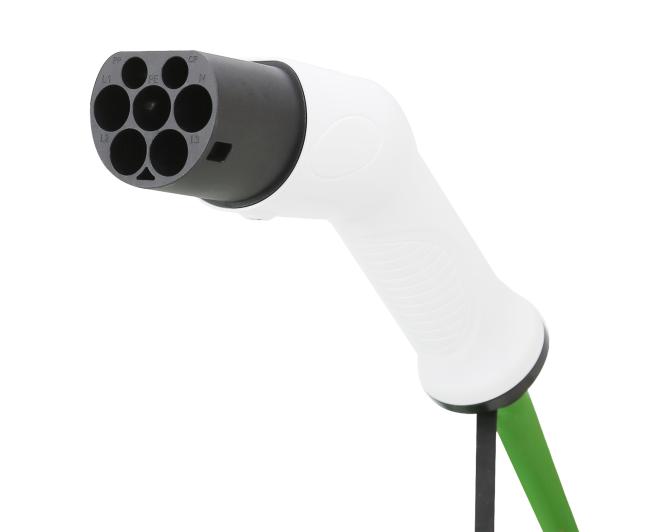

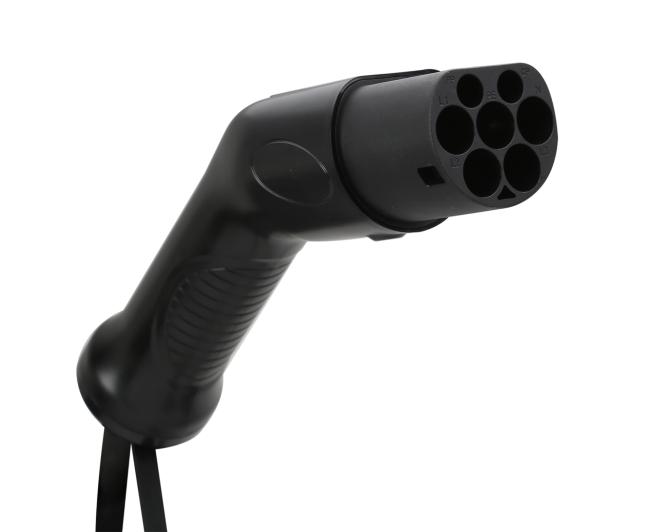

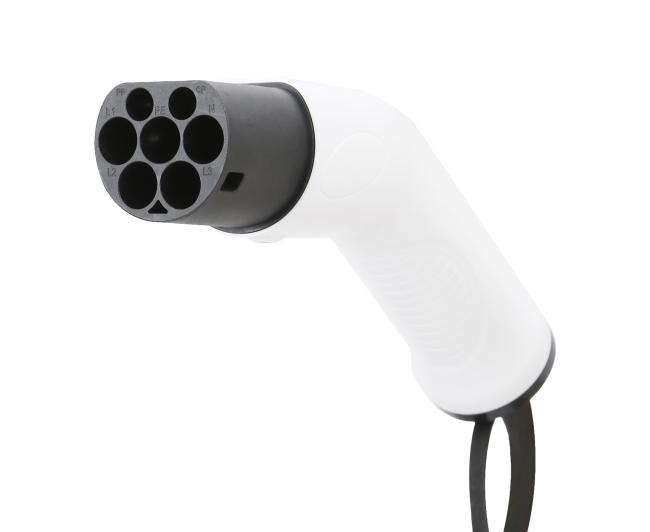

This is a Type 2 Male IEC 62196 standard European plug without cable. The maximum power provided from the
plug is up to 22kw (32A, 3-Phase). This replacement plug is designed to be used with EV charging cables.
It is a Male Type 2 end plug to connect directly onto the charging station. The product has a nice appearance,
a hand-held ergonomic design and is easy to plug. Suitable to connect with all private or public charging station
cables and for use outdoors or indoors.
The Type 2 replacement plug should be installed only by a qualified electrician. This plug replacement end charging
has no cable and is intended to be firmly attached to the charging cable.
| Rated voltage | Rated current | Power | Cable size |
| 240 / 415V AC | 63 Amp 3 Phase | 15 / 44KW | 16mm² |
| 240 / 415V AC | 32 Amp 1P/3P | 7 / 22KW | 6mm² |
| 240 / 415V AC | 16 Amp 1P/3P | 3 / 11KW | 2.5mm² |
