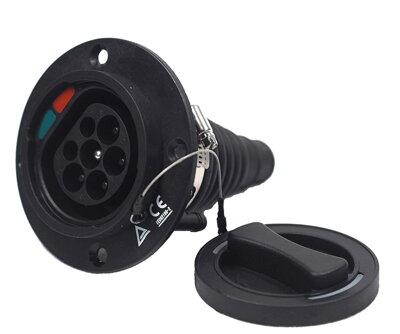

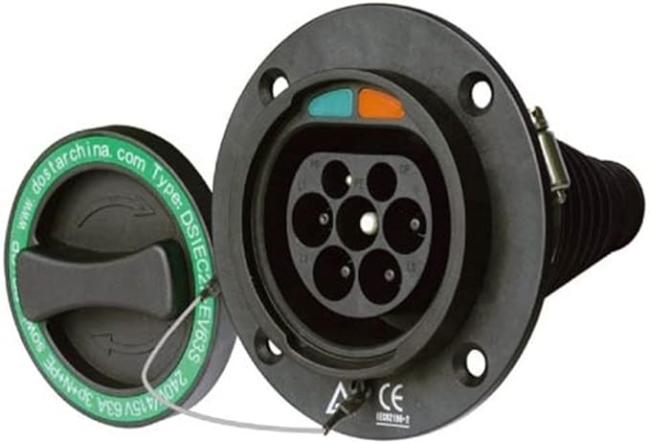

Type 2 Male Socket EV Inlet Electric Car Side Connector Electric Vehicle IEC 62196-2 AC EV Charging Socket 16A 32A

• Rated current: 16A/32A
• Rated voltage: 250V AC, Single Phase or 415V AC, Three Phase for option
• Operation Temp.:-30℃ ~ + 50℃
• IP protection class: IP 54 ( working condition)

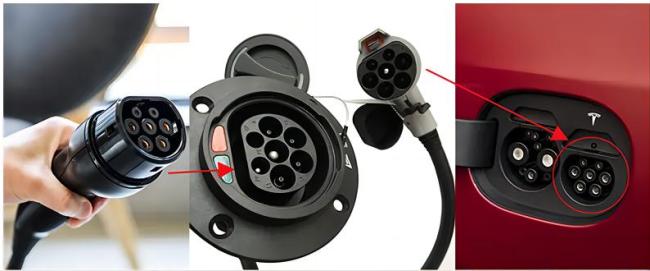

• Product description: This Type 2 AC Charging Socket Vehicle Side, also Know as AC Charging Inlet Socket, can be installed on the Type 2 Electric Vehicle.

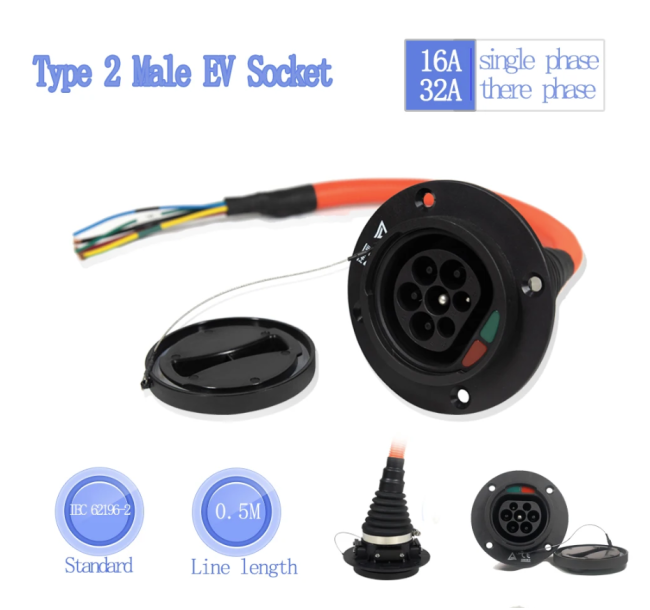

Model selection and the standard wiring

• 16A Single phase; 3 X 2.5mm² + 2 X 0.5mm²
• 16A Three phase: 5 X 2.5mm² + 2 X 0.5mm²
• 32A Single phase;3 X 6mm²+ 2 X 0.5mm²
• 32A Three phase;5 X 6mm²+ 2 X 0.5mm²

Technical Specifications

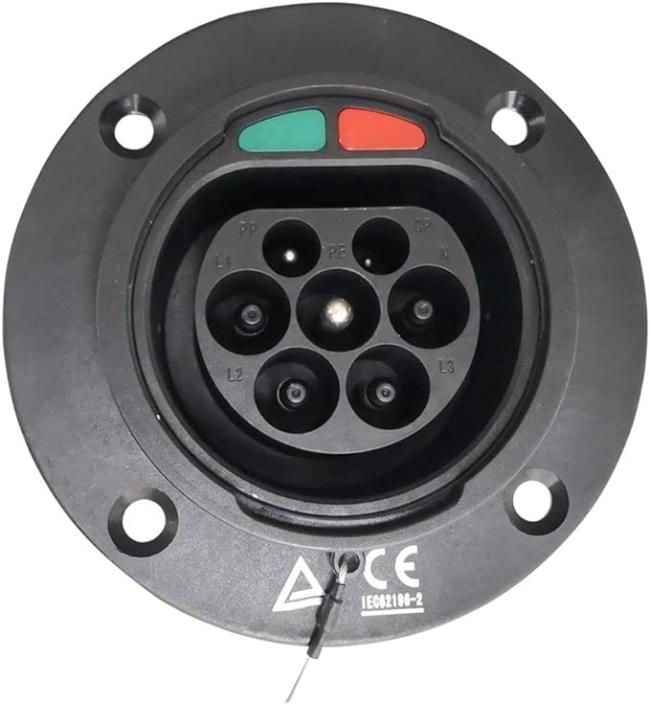

• Socket Type 2 male (IEC 62196-2)
• Maximum current: 32A
• Maximum voltage: 250 / 400V (3phase)
• Maximum charging power: 22 kW
• Operating temperature range: -30 ° C to + 50 ° C
• Material: thermoplastic
• 4 point mounting
• Black colour

Security and certificates

All sockets are tested to ensure their safety. The protective cover and the socket in the connected state are protected at the IP54 level. The socket meets the international standards IEC 62196-2 and IEC 61851-1. It is certified with CE, TUV and UL 94 for use in the European Union.

• Copper Alloy Silver Plated.
• High Durability, Corrosion Resistance, Oxidation Resistance.
• Strong Waterproof Performance.
• Can Afford 1m Drop and 2t Vehicle Run over Pressure.
• Nice Appearance, Hand-held Ergonomic Design, Easy Plug.
