NACS Level 2 AC 32A/40A/50A/60A/80A Single Plug Electric Vehicle Evolution EV Charger 5M Tesla Charging Cable

Price Negotiable

Price: Negotiable

MOQ: 1 pieces

Delivery Time: 7-15 Working days

Brand: Evoyage

Product Description

NACS Level 2 AC 32A/40A/50A/60A/80A Single Plug Electric Vehicle Evolution EV Charger 5M Tesla Charging Cable With Model 3/Y/S/X

32-80A NACS EV Connector for Level 2 EV Charging

Rated current: 32/40/50/60/80A
Rated voltage: 110/240V AC
Operation Temp.:-30℃ ~ + 50℃
IP protection class: IP 55 ( working condition)
Product description: Our new NACS AC charging cables, customizable to fit all your charging needs. Whether you are looking for 32A, 40A, 50A,60A or 80A options, we have you covered. Our NACS AC charging cables are designed
Keep the laser logo space for customer. Provide OEM/ODM service to help customer expand market easier.

Features

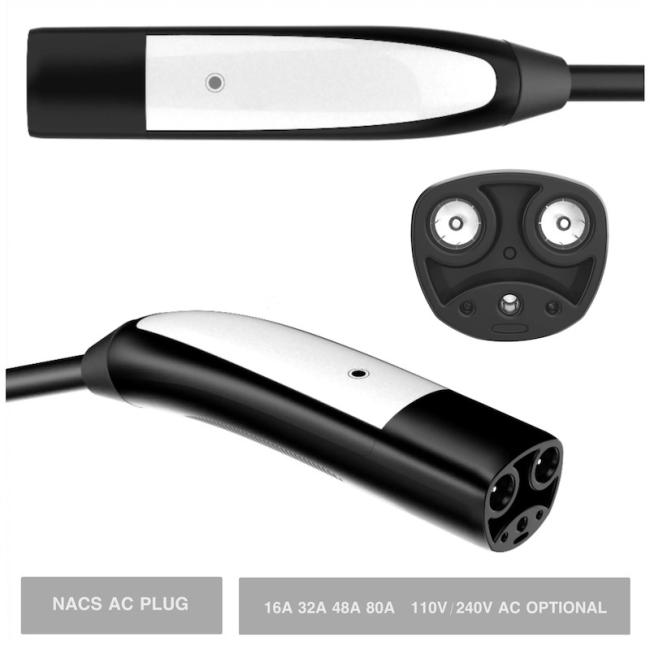

Charging plug meeting Tesla NACS standard

Housing massive structure promote protection performance

Product entire insertion and extraction force<90N

Excellent internal waterproof protection performance, protection grade achieved IP55 (working condition). The shell can effectively insulate water from body and enhance the safety level even in bad weather or special circumstances.

Mechanical properties

Mechanical life:no-load plug in/pull out>10000 times

Impact of external force:can afford 1M drop and 2t vehicle run over pressure

Applied Materials

Case Material:Thermoplastic,flame retardant grade UL94V-0

Contact bush:Copper alloy,silver plating

UV Resistance:F1 per UL 746C

Product Details:

Product	Tesla AC Plug with Cable
Product Model	EVO-TSA-32A , EVO-TSA-40A , EVO-TSA-50A, EVO-TSA-60A,FV-TSA-80A	Terminal Rise	＜50K
Rated Current	32A /40A/50A/60A/80A	Operating Temperature	-30°C~+50°C
Operation Voltage	AC 120V / AC 240V	Impact Insertion Force	>300N
Insulation Resistance	＞1000MΩ(DC 500V)	Waterproof Degree	IP55
Withstand Voltage	2000V	Cable Color	Black ,Orange, Green, Blue etc.
Pin Material	Copper Alloy, Silver Plating	Cable Length	(5Meter ,10Meter) The length of the cable can be customized
Shell Material	Thermoplastic,Flame Retardant Grade UL94 V-0	Cable Protection	Reliability of materials, anti-flaming, pressure-resistant, abrasion resistance
Mechanical Life	No-Load Plug In / Pull Out ＞10000 Times		impact resistance
Contact Resistance	0.5mΩ Max	Certification	UL,TUV,CE Approved

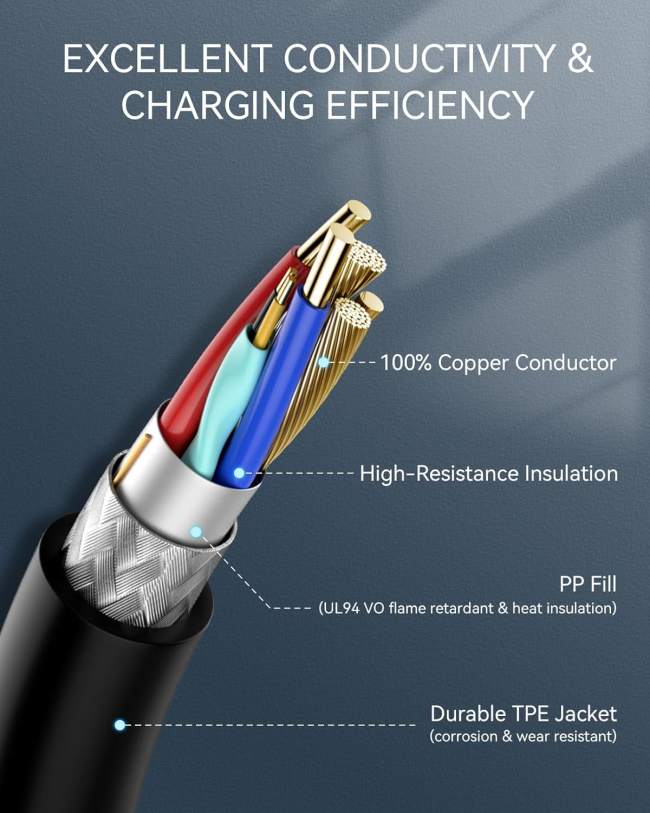

Rated Current	Cable Specifications
32A	3 X 10AWG + 1 X 18AWG
50A	2 X 8AWG + 1 X 10AWG + 2 X 16AWG
80A	2 X 5AWG + 1 X 8AWG + 6 X 20AWG
