Type 2 To Type2 EV Charging Cable 16A 3.6KW 11KW Male To Female EV Charging Connector
IEC62196 Standard Type 2 to Type 2 EV Charging Cable 16A 3.6/11KW 1 Phase 3 Phase 5Meter Type 2 Male to Type 2 Female Electric Car Charging Connector For Home and Commercial
|
|
|
|
|---|---|---|
5M Cable LengthThe 5m T2-T2 EV Cable was produced with weight and practicality at the forefront. Being the lightest EV Cable on the market, it is easy to carry around and plug in wherever you are, while still providing a good amount of length!Extra-long cable length provides extended charging for electric vehicles. Solid plug structures can withstand the rolling of a vehicle. |
High-Strength ABS MaterialWe use Industrial Strength ABS Material on all our chargers and cables to ensure that any heavy impact that occurs to the charger will never affect the performance! |
Convenient Carry BagWith our Carry Bag supplied with every cable, you will always have a clean and safe place to store your new charging cable. The strong handle also means other items can also be carried in here along with your cable! |
SOLUTIONS FOR COMMON CHARGING PROBLEMS
- Car is locked - the car needs to be unlocked and turned off to start the charging process.
- Charge settings on car - Make sure you have no timers or other settings turned on.
- Plugging into another cable - This cable must plug directly into a Type 2 socket.
- Pins not latching - Make sure to use considerable force when plugging in the cable and wiggle until the pins make a full strong connection.
THE CHARGING PROCEDURE
- Park near your charging station, be sure to turn off your vehicle
- Make sure your car is unlocked with no charge settings/timers turned on
- Plug the Type 2 Male end into the charging unit, firmly push so the pins fully latch
- Plug the Type 2 Female end into your cars charging port, firmly push so the pins fully latch
- Lock your car and leave to charge, this will lock the cable into your car if your car supports the feature
- After charging remove the plug from the car first and then the charging unit
- The EV Connector Cable features greater conductivity, thanks to its inlet with silver platings that provide excellent conductivity and prevent overheating. This means you can charge your electric car with confidence, knowing that the cable is designed to deliver optimal performance while keeping safety a top priority.
|
|
||
|---|---|---|
| Charging cable 5 meters black | Charging cable 5 meters black | |
| Number of Phases | 3-Phase | 1-Phase |
| Max. current | 16A | 16A |
| Max. charging power | 11 KW | 3.6 KW |
| Colour | black/white optional | black/white optional |
| Operating temperature range | -30°C to 50°C | -30°C to 50°C |

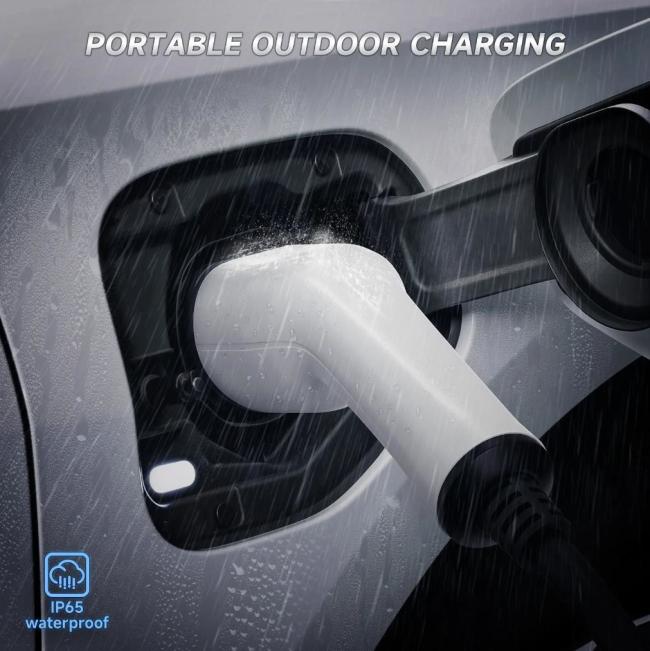

| Weather protection IP65 | ✓ | ✓ |
| Cable specification | 5X2.5mm^2+1X0.5mm^2,TPU,black | 5X2.5mm^2+1X0.5mm^2,TPU,black |
| Cable length | 5m or customized | 5m or customized |
| Weight | 3.4 KG | 3.4 KG |
