C Series 2-4 Tonne Diesel Operated Forklift Diesel Lift Truck
Price:
negotiable
MOQ:
1
Delivery Time:
10 DAYS
Brand:
yangft
Product Description
The 4-cylinder diesel forklifts adopt a design of a low center of gravity to guarantee stability in operation. With a small turning radius, they can be used in various confined space.
![Capacity]()
2000-4000 kg![Lift Height]()
3000 mm
![Travel Speed]()
19-20 km/h![Min. Turning Radius]()
2410-2610 mm
Features
- The diesel forklifts are equipped with hydraulic drive systems to provide stable and high-efficient driving force.
- Boasting outstanding performance, the forklifts are designed with high efficiency and torque output to achieve balance between load capacity and travel speed to meet different needs of material handling.
- High-strength steel plates used in manufacturing forklifts ensure stability and safety.
Applications
Material handling in limited space, such as factories and workshops.

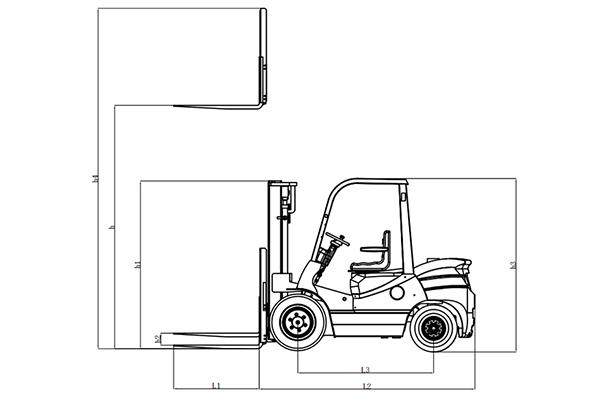

Technical Specifications
| Model | |||||||||
| Characteristics | Power | Diesel | |||||||
| Capacity | kg | 2000 | 2500 | 3000 | 3500 | 4000 | |||
| Load Centre | mm | 500 | 500 | 500 | 500 | 500 | |||
| Lift Height | h | mm | 3000 | 3000 | 3000 | 3000 | 3000 | ||

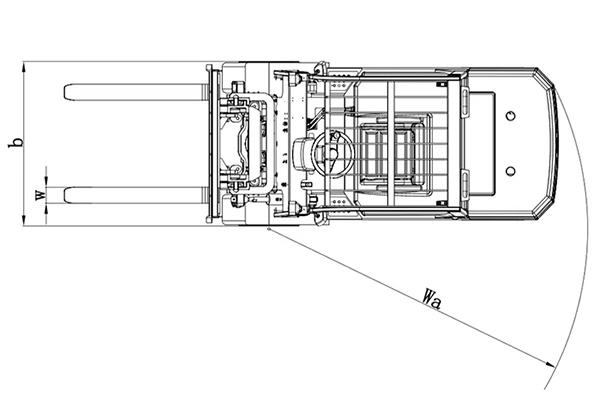

| Min. Turning Radius | Wa | mm | 2410 | 2410 | 2410 | 2410 | 2850 | ||
| Performance | Travel Speed | Load | km/h | 19 | 19 | 20 | 20 | 19 | |
| Lift Speed | Load | mm/s | 500 | 500 | 480 | 480 | 400 | ||
| Dimensions | Total Length | With fork | L1+L2 | mm | 3750 | 3750 | 3770 | 3770 | 4055 |
| Without fork | L2 | mm | 2680 | 2680 | 2700 | 2700 | 2985 | ||
| Total Width | b | mm | 1160 | 1160 | 1225 | 1225 | 1360 | ||
| Max. Height | h4 | mm | 4245 | 4245 | 4265 | 4265 | 4315 | ||
| Mast Height | h1 | mm | 2085 | 2085 | 2100 | 2100 | 2195 | ||
| Chassis | Tyre | Front | 7.00-12-12PR | 7.00-12-12PR | 28x9-15-12PR | 28x9-15-12PR | 250-15-20PR | ||
| Rear | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | 7.00-12-12PR | ||||
| Wheelbase | L3 | mm | 1700 | 1700 | 1700 | 1700 | 1860 | ||
| Service Weight | No load | Kg | 3600 | 3850 | 4300 | 4600 | 5100 | ||
| Power | Engine | Model | C240 | C240 | C240 | C240 | 4JG2 | ||
| Rated power | 4JG2 | kW/r.p.m | 35.4/2500 | 35.4/2500 | 35.4/2500 | 35.4/2500 | 46.0/2450 | ||
| Rated torque | Nm/r.p.m | 138/1800 | 138/1800 | 138/1800 | 138/1800 | 186/1800 | |||
| Cylinders | 4 | 4 | 4 | 4 | 4 | ||||
