OEM KL 1.6 Standard Pressure Gauge Bottom Mount Steel Case / Brass Material

Price Negotiable

Price: Depends on total quantity

MOQ: 200PCS

Delivery Time: 5-30days

Brand: WYYW

Product Description

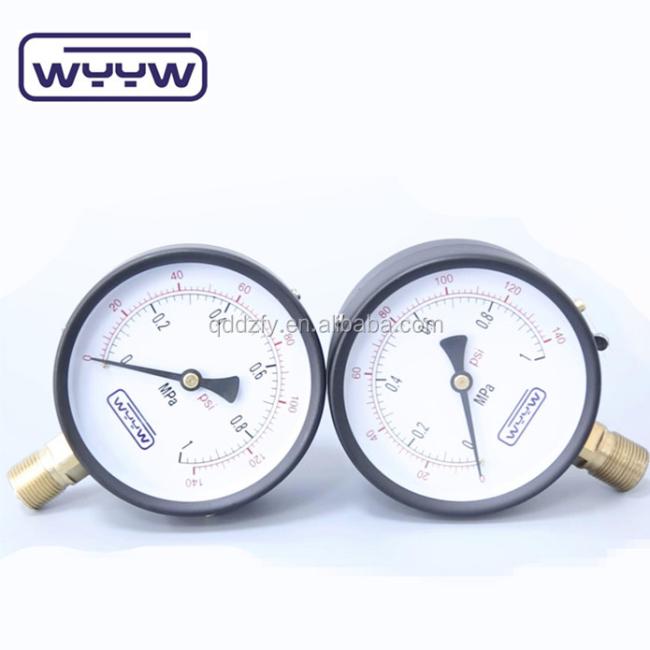

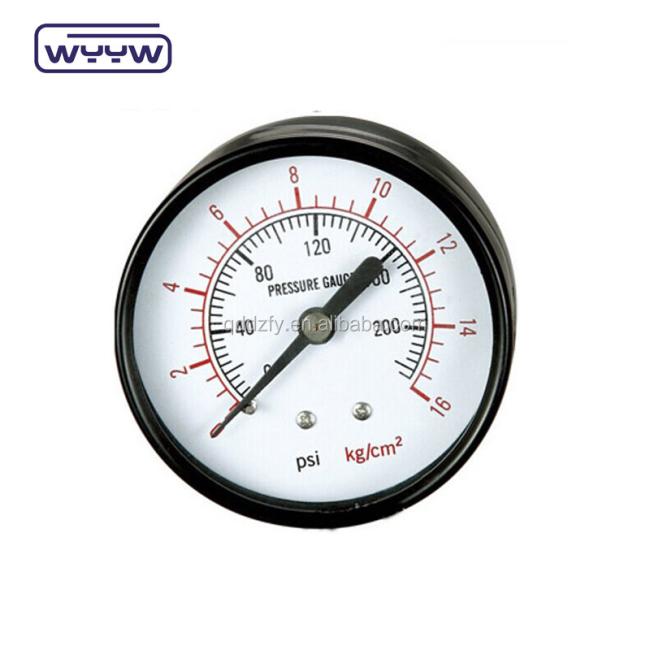

KL 1.6 standard pressure gauge

Name	KL 1.6 standard pressure gauge
Dials Size	100mm/ 4inch (or dail size made as demand, like 40/50/60/100/150/200mm)
Case	Black steel case (Chromed plated/ Color plated Available)
Pressure	Mpa,other scale units bar, psi, kg/cm2 etc.optional
Ring	None/Yes
Movement	Brass
Socket	Brass
Bourdon tube	Phosphor Bronze
Dial plate and pointer	Aluminum
Window	Glass (Acrylic plastic availble)
Connection sizes	1/8" for 1.5", 1/4 for 2",2.5" case; 1/2 for 4",6" etc.
Connection threads	Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Mounting	Bottom (Or made as panle, back as required)
Accuracy	1.5"(40mm), 2"(50mm), 2.5(63mm)-2.5% 4(100mm) and 6 (150mm)-1.6%
Pressure limitation	Steady: 3/4x full scale value Fluctuation:2/3x full sacle value Short time:full scale value

Outdoor and severe ambient and process conditions

Use where harmful vibration and pulsation are present
Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems

Advance Equipment and Professional Technology : we are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.
Best After-sales Service:Our company provide best after-sale service all the time , for our goal is a long trade cooperation term;
Serious Inspection Procedure with Excellent Quality: Our pressure gauges all are 100% inspection , we also have passed ISO9001 and UL certificated;
Quickly Delivery: Our company provides in-time delivery with , always satisfy customers needs;
Convenient Purchase and save cost: We are skillful manufacturer, so it's convenient for you to purchase , We can provide our high quality products with reasonable price;
OEM orders: In the past years, we have many OEM orders from very famous company in USA and European market .
