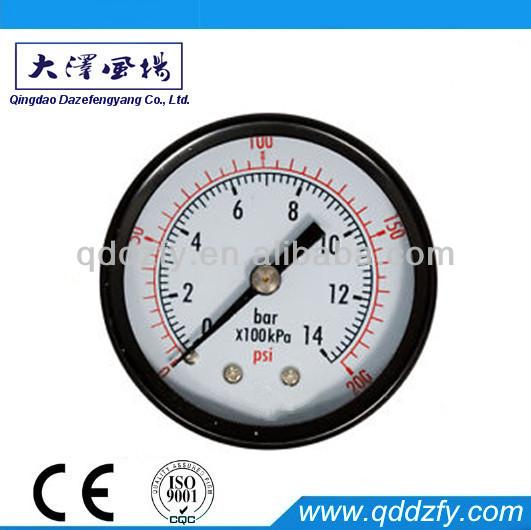

60mm Economy Pressure Gauge Manufacturer With Rubber Protective Cover
60mm pressure gauge with rubber protective cover
Specifications
rubber cover pressure gauge
1. Material:Copper/SS/Aluminum
2. D:60/100/150
3. Range:1.5/2.5/6/15/60MPa
4.Ce:ISO,CMC
Applications
Process industry, Chemical/petro-chemical, Power stations, etc.
DESCRIPTION
|
Nominal Size : |
1.5"(40mm) , 2.0"(50mm), 2.5"(63mm), 3.0"(75mm) ,4.0"(100mm), |
|
Pressure Range : |
-1~0bar to 0~400bar |
|
Accuracy : |
±1%, ±1.6%, ±2.5% |
|
Working Temperature: |
-20°c~70°c |
|
Case: |
Stainless steel |
|
Bezel : |
Stainless steel |
|
Bourdon tube : |
Phosphor bronze OR Stainless steel ≤ 60 bar: C-type > 60 bar: Helical type |
|
Connection: |
Brass Or Stainless steel |
|
Movement: |
Brass Or Stainless steel |
|
Dial: |
Aluminium |
|
Pointer: |
Aluminium ,black |
|
Window: |
Glass Or Plastic |
|
Thread: |
1/8",1/4", 3/8",1/2", PT,BSP,NPT etc. |
|
Fill: |
Glycerine(standard) Silicone(optional) |
|
Gaskets/Filling cap: |
Neoprene Or Silica gel |
OPTION
1. With red mark adjustable pointer ,
2. With othe unit according requirement, such as bar,psi,kg/cm2 in dial
3. With rubber
ORDERING INFORMATION
Model / Nominal size / Scale range / Connection size / Options
Note: The requirements can be customized
Package: Each pressure gauge is packed in one paper box, then 30pcs packed in a carton box,or as customer’s request.
Warranty: 1 year.
About us:
We are munufacturer of pressure gauge, pressure regulator, cutting&welding torch and nozzle etc. The company is founded in 2005, waiting for your inquiry.

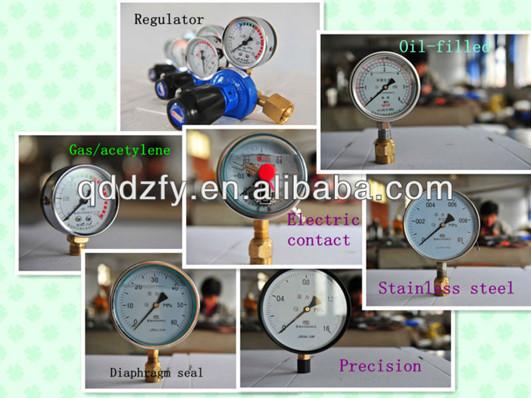

Product show:

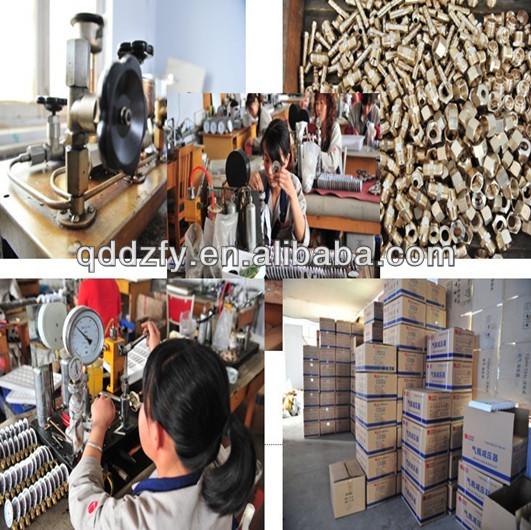

Factory show:
Certificater: ISO9001.
