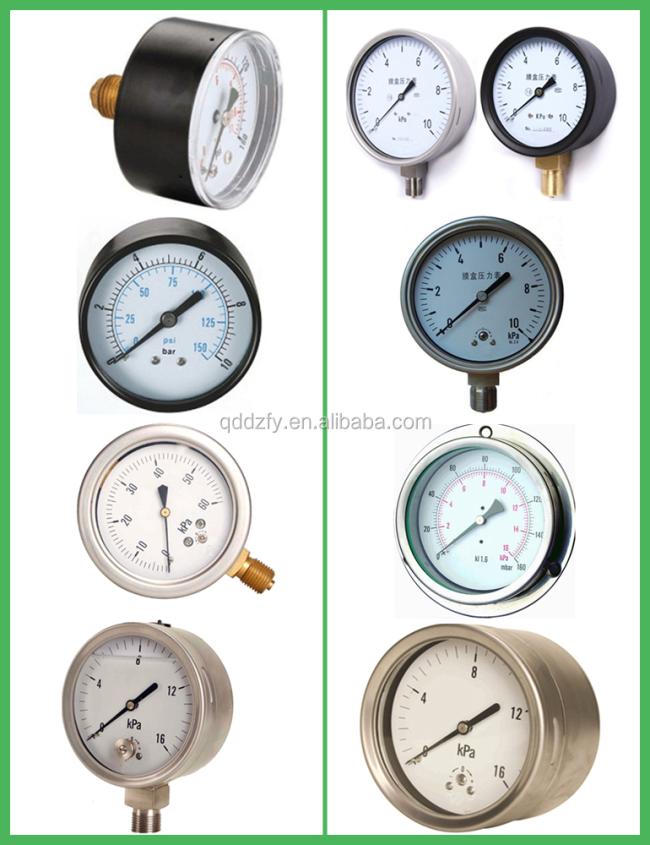

80mm Kpa Mbar Bellows Pressure Gauge Low Pressure Manometer Radial Connection
Radial Connection Accuracy 1.6% Capsule 80mm Kpa Mbar Bellows Pressure Gauge Low Pressure Manometer
low pressure manometer
| Dial size | 2.5"(63mm),4"(100mm),6"(150mm) |
| Case | Black steel or SS |
| Pressure range | 0-1.6,2.5,4,6,10,16,25,40,60kpa, mpa available |
| Ring | Non, roll and bayonet type |
| Movement | Brass, SS |
| Socket | Brass, SS |
| Bellows | Phosphor bronze, SS |
| Dial plate and pointer | Aluminum |
| Window | Glass, safe glass |
| Connection sizes |
1/8" for 1.5"case;1/4" for 2",2.5" case; 1/2" & 3/8" for 4" and 6" case |
| Connection threads | Metric thread, NPT, BSP(G,PF),BSPT(ZG,PT) |
| Liquid | dry, silicone,glycerine filled |
| Mounting | Bottom, back |
| Accuracy | 2.5"(63mm)-2.5%; 4"(100mm),6"(150mm)-1.6% |
| Pressure limitation |
Steady: 3/4 x full scale value Fluctuation:2/3 x full scale value Short time: full scale value |

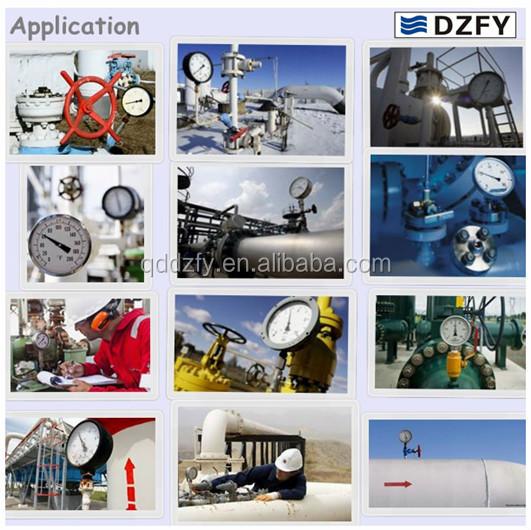

Application:1.Outdoor and severe ambient and process conditions
2.Use where harmful vibration and pulsation are present
3.Hydraulic equipment, pressure washers,oil field equipment, pumps, compressors and process systems
