Automatic Winding Machine For Electrical Automotive Motor Power Inductor Core
Price:
Negotiable
MOQ:
1
Delivery Time:
15
Brand:
UnionSpring
Product Description
Product Description

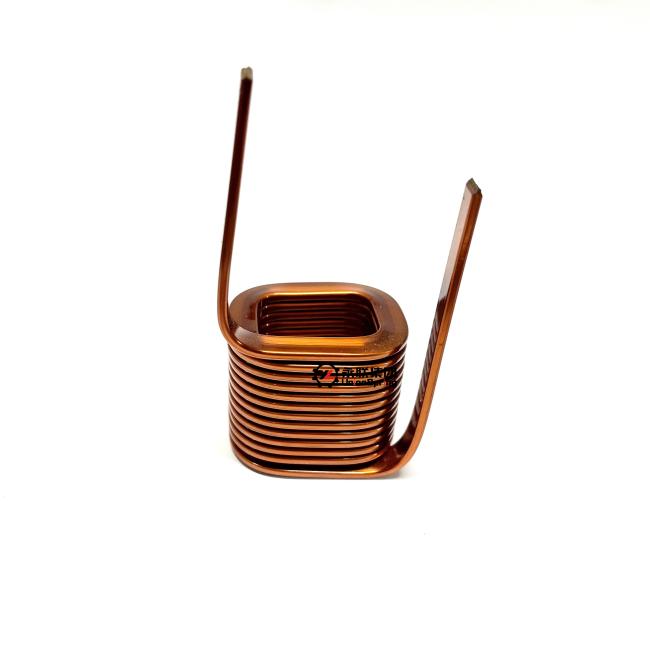

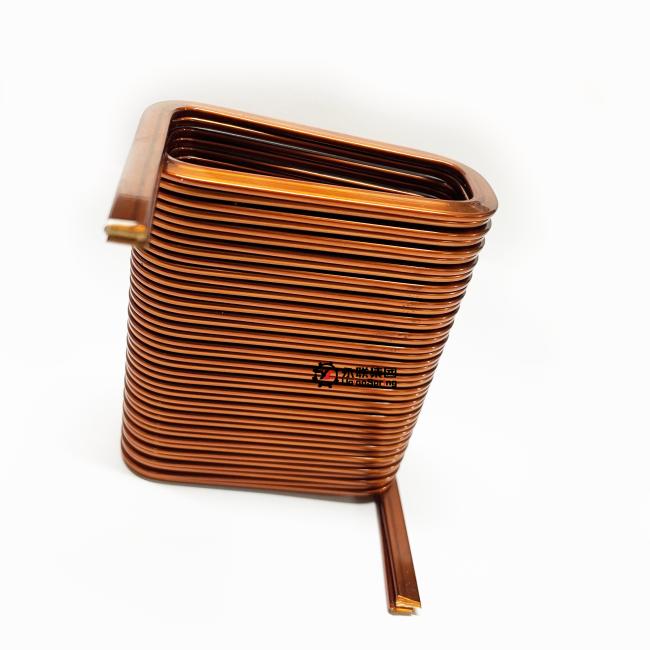

No CAM Winding Square Copper Wire Coil Inductor Making Machine US-650
Model | US-650 |
Axis | 6 pcs |
Wire Diameter | 1.0~5.0mm |
Wire Feeding Range | 0.1~N+1 |
Cables High | ≤60mm |
Free Arms Max. Work Length | ≤70mm |
Wire Feeding Servo | 2.7kw |
Winding Axis Servo | 0.75 |
Arm Axis Servo | 0.75kw*4 |
Machine Size(mm) | 1700*1250*2000 |
Machine Weight | 900kg |
Feature 1

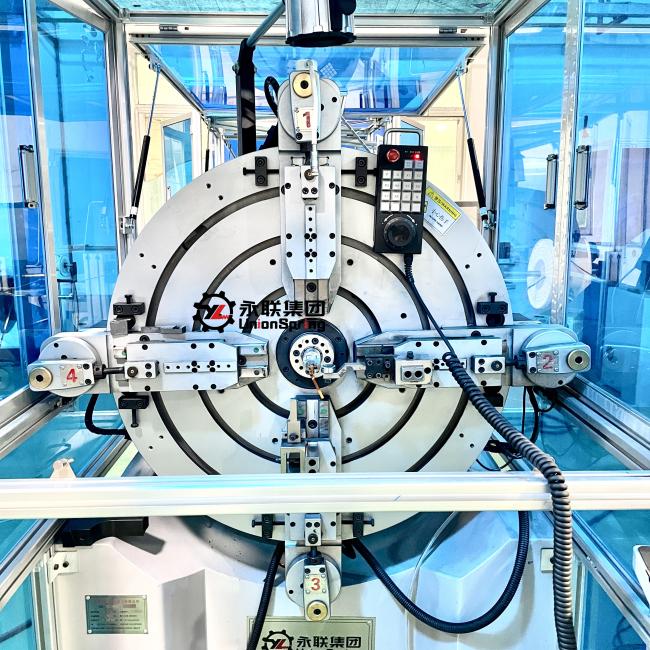

1.This US-650 machine uses 6 shafts, which are wire feeding shaft, winding shaft, arm shaft*4. The forming part is completed by the cooperation of the arm shafts. The shaft are independent and interrelated.
Feature 1
2. The machine adopts an independent wire feeding device which can realize single-time, multiple wire feeding, and wire feeding of any length; the rotating core device is located behind the board surface, and the servo is controlled separately, which can realize 360 degree rotation in positive and negative directions
Feature 3
3.The winding shaft is directly installed on the arm shaft, and there are 2 sets of servo synchronous control. It can realize forward and reverse winding, dense winding and variable pitch winding, and can realize single-layer, multi-layer and simple winding.
Feature 4
4.Imported servo, imported planetary reducer transmission high operating accuracy.
Feature 5
5.The machine adopts windows operation interface. which can save the adjustment parameters of products of various specifications.
Packing&Shipping
After Sales Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*Hlep adjust sample
Company Profile
FAQ
Q: What information should customer provide to get machine offer from UnionSpring? A: Please you usually share below info to check suitable machine. *Specific drawing *Wire material *Additional function you need with the machine ,such as chamfering, threading, etc. We will check best solution and offer for your requests after checking details. Q: How can I know if UnionSpring machine can produce my product precision? A: If you have high precision outputs requests, would you please send check gauge or parts which this outputs will fit, we will set parts for you to fit them. Or we can send samples for you to measure. Q: Is the machine tested before shipment? A: We will do the following tests:
1. Wire feeding accuracy test
2. 360 hours continuous running-in test
3. Machine adjustment test according to customer's products, etc. Q: How can I get training if have no experience about machine? A: We will send manual book with machine and also can send video to show you how to run machine if you have doubts. Q: If computer can set customer own language to let their work to run the machine? A: Surely, we can set two languages in the controller, we can set the language you asked, we just need your help about some key translate to load into controller. Q: What's the purchase process? A: Inquiry-----Ger to know request details -----Offer best solution-----Talk about setup sample process-----Order-----Set sample and send video for checking-----Ship machine . Q: What is your payment term? A: 30% payment in advance as a deposit, and 70% balance before shipment.
