100 mm Length US-8Y-750 Double Circle Transformer Coil Winding Machine for CNC Winding
Price:
$42,000.00/sets 1-4 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
UnionSpring Machinery
Product Description
Products Description
Model | US-8Y-750 |
Axis | 7~8 |
Wire diameter | W: 3.0~16.0 mm T: 1.0~5.0 mm |
Winding servo | 2.0kw*2 |
Wire feeding servo | 0.4kw |
Rising servo | 2.0kw |
Down servo | 2.0kw |
Angled servo | 0.4kw |
Handing servo | 0.4kw |
Size(L*W*H) | 9550*1300*1800MM |
Weight | 1800kg |

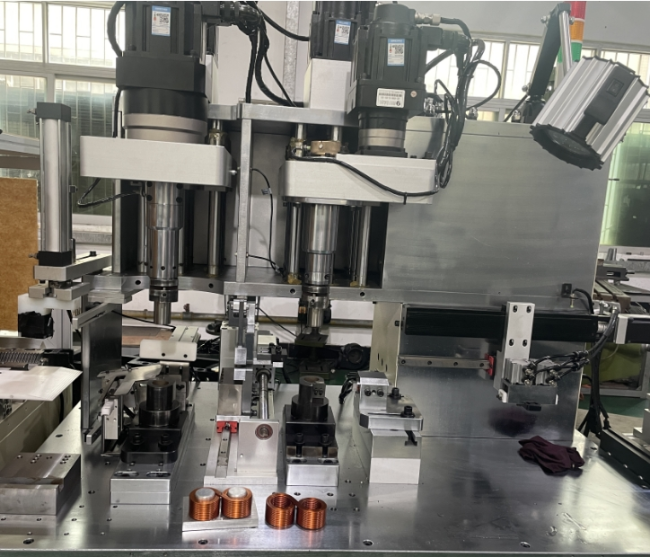

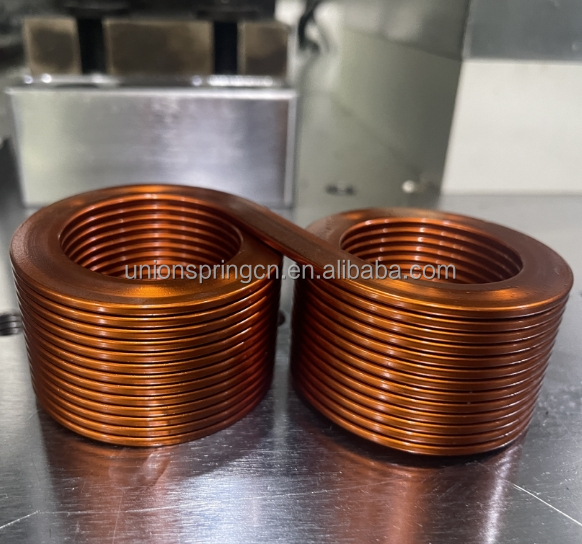

UnionSpring Double Coils Winding Machine US-8Y-750:
2. Double guide rails + precision helical gear transmission to ensure temperature accuracy. At the same time, the motor is
interpolated and followed by the winding head. During the winding process, the motor is sent to the winding head.
3. The feeding and cutting mechanism can accurately feed the wire into the winding groove. During the winding process, the wire can be pressed tightly to prevent the wire from moving
4. The fully automatic winding process does not require personnel to participate, and the action of picking up the wire package is automatically completed, and one person can be on duty for multiple
machines.
machines.
5. Products are widely used in high frequency, new energy, network transformers and other industries
Details Images
Working Table
Wire Decoiler
Wire Feeding Wheels
Contriollor
Transformer
Sanyo Motor
Company Profile
Guangdong UnionSpring Machinery Co., Ltd
UnionSpring Machinery is a professional CNC automatic intelligent metal wire/busbar processing machines manufacturer from Guangdong China. In UnionSpring Machinery, there are many kinds of springs machines, spring coiling machines, wire shapes forming machines, inductance/transformer/air coils winding machines, enameled copper wire winding bending forming stripping/peeling machines and copper busbar bending forming winding stripping and punching machines. More higher quality, higher precision and more professional metal wire bus bar processing CNC machines manufactured from here. Including high-effective price CAM style machines or camless style, wire rotary or not wire rotary, with more customized device to realize Integration multi-functional more in one machine. More options can be chosen. Based on the high quality machines and customer service, we also care about-how to realize the optimization of machinery cost and productivity, and then to establish a long-term win-win cooperation relationship you! Welcome to contact us!
Our Workshop
PACKING & SHIPPING
After Sales Service
Pre-Sales Service
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*Hlep adjust sample
FAQ
Q: What information should customer provide to get machine offer from UnionSpring?
A: Please you usually share below info to check suitable machine.
*Specific drawing
*Wire material
*Additional function you need with the machine ,such as chamfering, threading, etc.
We will check best solution and offer for your requests after checking details.
Q: How can I know if UnionSpring machine can produce my product precision?
A: If you have high precision outputs requests, would you please send check gauge or parts which
this outputs will fit, we will set parts for you to fit them. Or we can send samples for you to measure.
this outputs will fit, we will set parts for you to fit them. Or we can send samples for you to measure.
Q: Is the machine tested before shipment?
A: We will do the following tests:
1. Wire feeding accuracy test
2. 360 hours continuous running-in test
3. Machine adjustment test according to customer's products, etc.
Q: How can I get training if have no experience about machine?
A: We will send manual book with machine and also can send video to show you how to run machine if you have doubts.
Q: If computer can set customer own language to let their work to run the machine?
A: Surely, we can set two languages in the controller, we can set the language you asked, we just need your help about some key translate to load into controller.
Q: What's the purchase process?
A: Inquiry-----Ger to know request details -----Offer best solution-----Talk about setup sample process-----Order-----Set
sample and send video for checking-----Ship machine .
sample and send video for checking-----Ship machine .
Q: What is your payment term?
A: 30% payment in advance as a deposit, and 70% balance before shipment.
